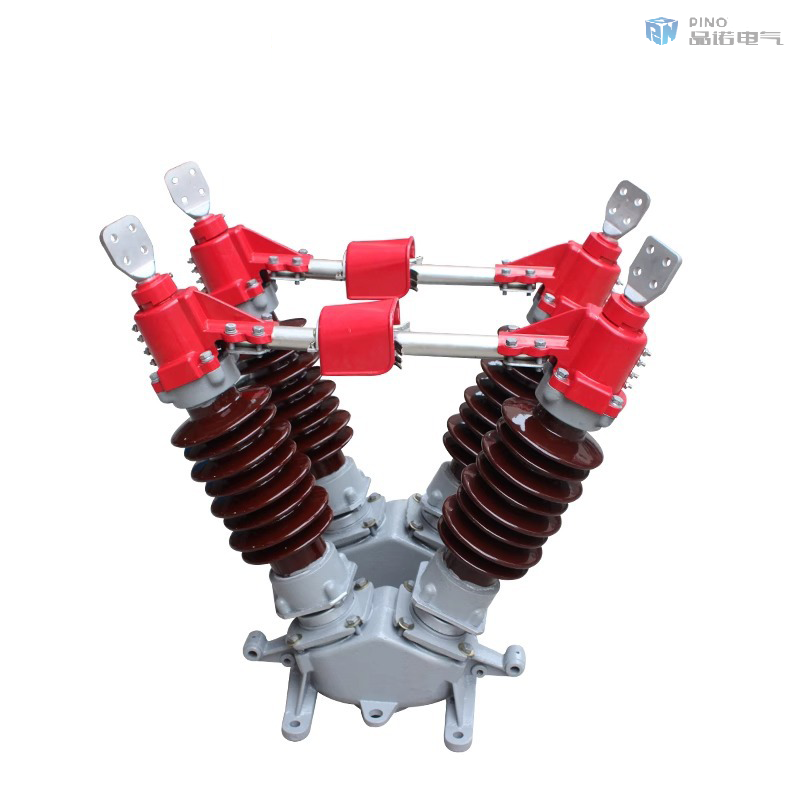

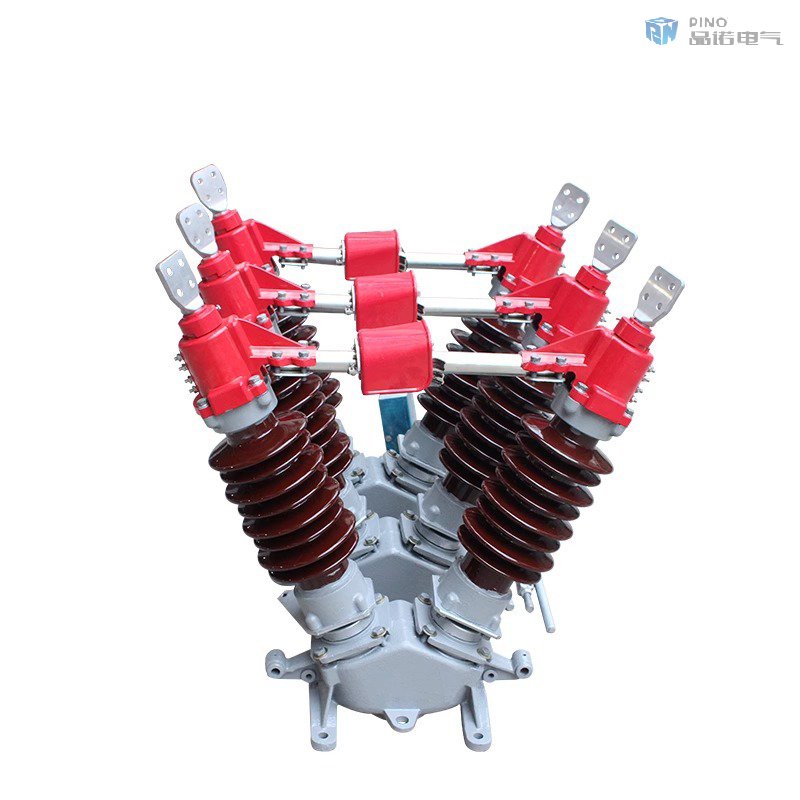

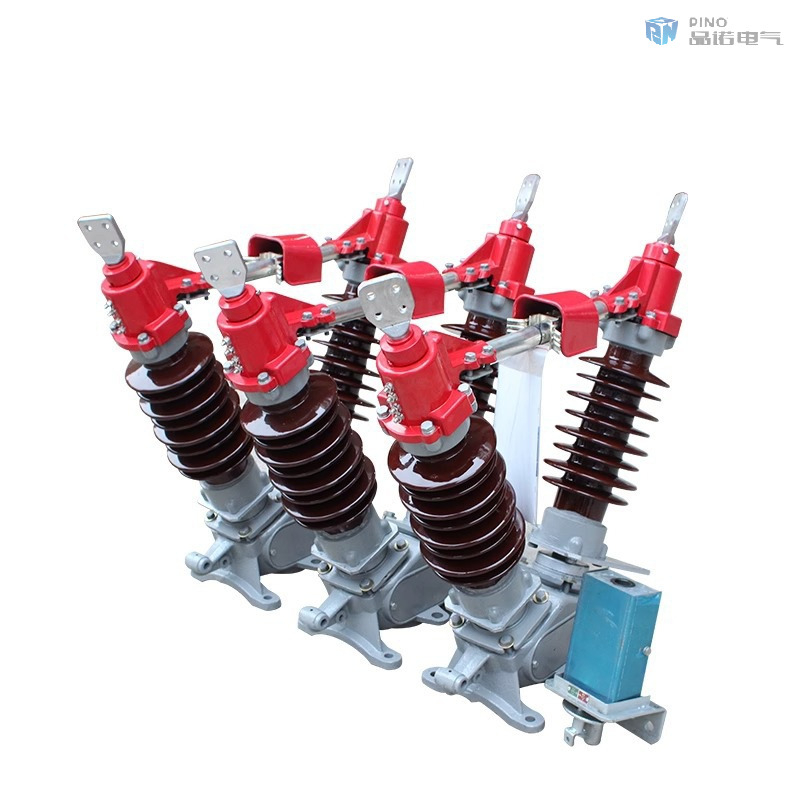

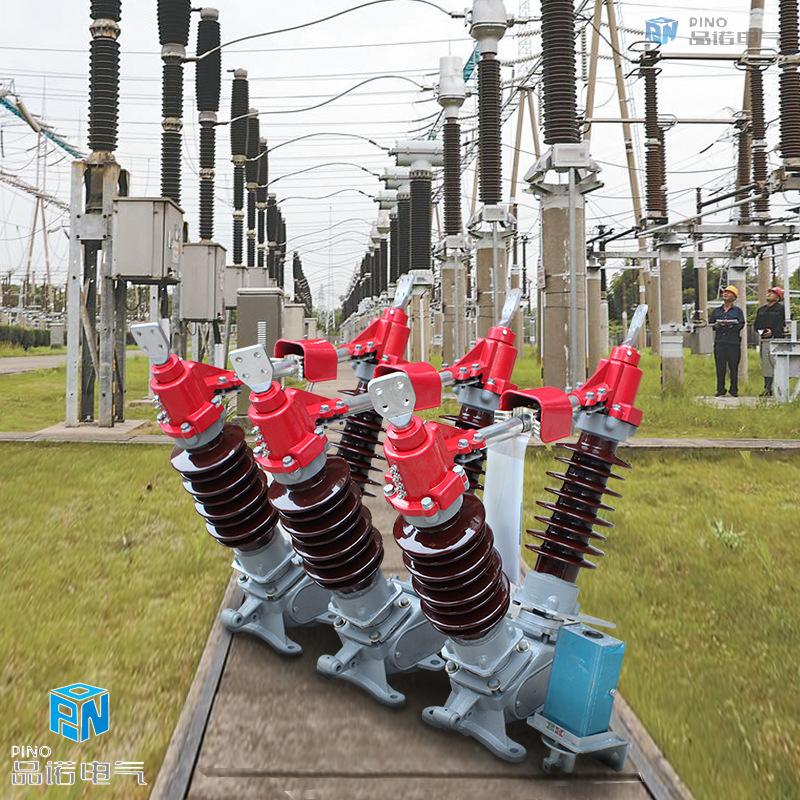

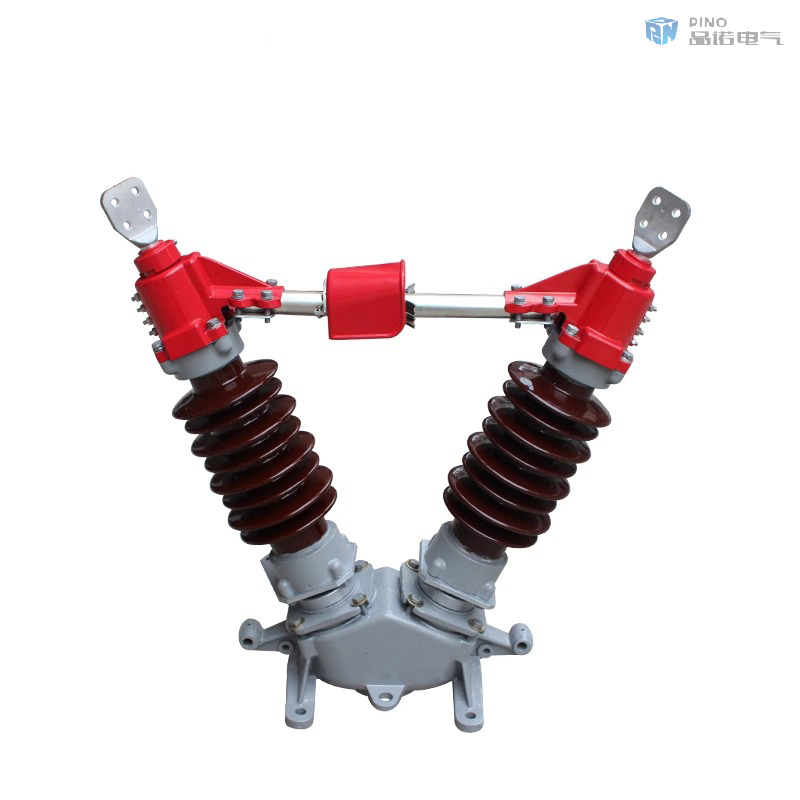

Three Phase Outdoor High Voltage Isolator Gw5-40.5/400

What Is a 400 Amp 3 Phase Disconnect?

A 400 amp 3 phase disconnect is a switch that interrupts electrical current flow in a three-phase system up to 400 amperes. These devices allow safe shutdown of power to machinery or facilities for maintenance, emergency intervention, or system upgrades.

Depending on the model, the switch can be fusible (integrated with fuses for overcurrent protection) or non-fusible, and often includes options for visible blades, lockout mechanisms, or remote actuation.

They are commonly required by local codes and standards such as the National Electrical Code (NEC), IEEE, and IEC, particularly in systems exceeding 240V and involving complex or critical infrastructure.

Key Applications

• Manufacturing Plants: Main disconnect for production lines and heavy machinery.

• Commercial Buildings: Feeds HVAC systems, elevators, or building-wide backup systems.

• Utility Infrastructure: Used in switchgear and transformer enclosures.

• Data Centers: Provides power disconnection to UPS or server banks.

• Renewable Energy Plants: Interfaces between inverter arrays and grid connections.

Technical Specifications

• Amperage Rating: 400A

• Voltage Rating: 480V AC (typically 277/480V 3-phase, 4-wire)

• Enclosure Rating: NEMA 1 (indoor), NEMA 3R (outdoor), NEMA 4X (corrosive environments)

• Switch Type: Fusible (with Class L, J, or R fuses) or Non-fusible

• Interrupt Rating: Up to 200kAIC depending on fuse type

• Safety Features: Padlockable handle, interlocking doors, visible blade, and LOTO compliant

• Certifications: UL98, CSA, IEC 60947

Market Trends and Demand

With growing emphasis on industrial automation, green energy, and electrical safety, the demand for high-capacity disconnects is rising. According to IEEE and IEEMA reports, the global disconnect switch market is expected to grow at a CAGR of over 6% between 2023 and 2028.

Smart manufacturing and the transition to renewable energy systems, which often require robust three-phase load management, are major contributors to this trend.

Comparison With Other Disconnects

How to Choose the Right 400 Amp 3 Phase Disconnect

Before purchasing a 400A disconnect, consider the following:

• Fusible vs. Non-Fusible: Fusible models provide added short-circuit protection.

• NEMA Rating: Choose based on your installation location—indoor (NEMA 1) or outdoor/harsh (NEMA 3R/4X).

• Voltage Compatibility: Ensure matching with 480V three-phase systems.

• Installation Orientation: Some units are wall-mounted; others are floor-standing.

• Maintenance Features: Look for visible blades, interlocks, and labeling options.

• Reputable Brands: Consider ABB, Schneider Electric, Siemens, Eaton, GE for reliability and certification.

Real-World Use Case

A major logistics center installs six 400A 3 phase disconnects to separate load panels supplying warehouse conveyors, dock lighting, HVAC chillers, and packaging machinery. The switches offer safety lockout mechanisms and corrosion-resistant NEMA 4X housings suitable for exposure to outdoor humidity and dust.

FAQ: Frequently Asked Questions

Final Thoughts

The 400 amp 3 phase disconnect is a vital part of modern power distribution systems. It ensures safety, reliability, and operational control in high-demand environments. From manufacturing to renewable energy to mission-critical data centers, these switches deliver robust performance and meet stringent safety standards.

For compliance, durability, and electrical integrity, always select a model that meets your system’s voltage, load, and environmental requirements.
