1. APG manufacturing technic
2. It complies with the requirements of EN50180, EN50181 and DIN47636
3. Fitted with 12kV/24kV/36kV/40.5kV system separately, suitable for 200A, 630A and 1250A rated current
4. It complies with the requirements of IEC41442 to complete the Power frequence and Partial discharge test
5. leakage value 1 x10-‘ mbar I/s
6. We can design and make moulds to meet unique requirements
7. APG bushing fitted with indicator

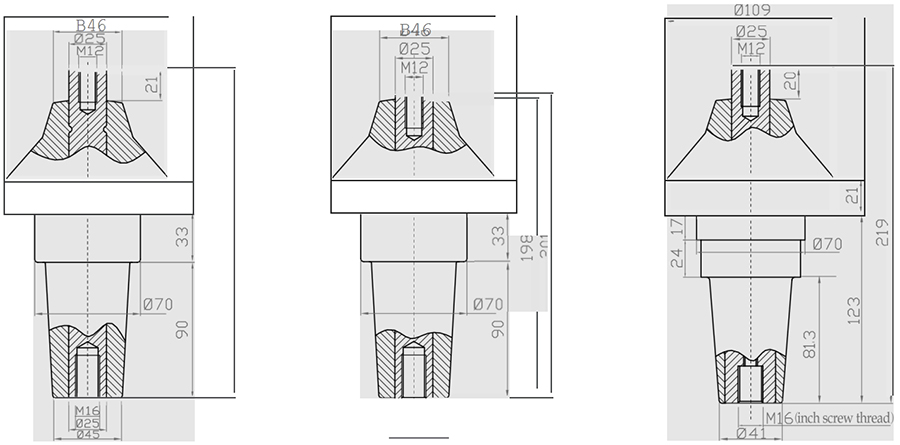

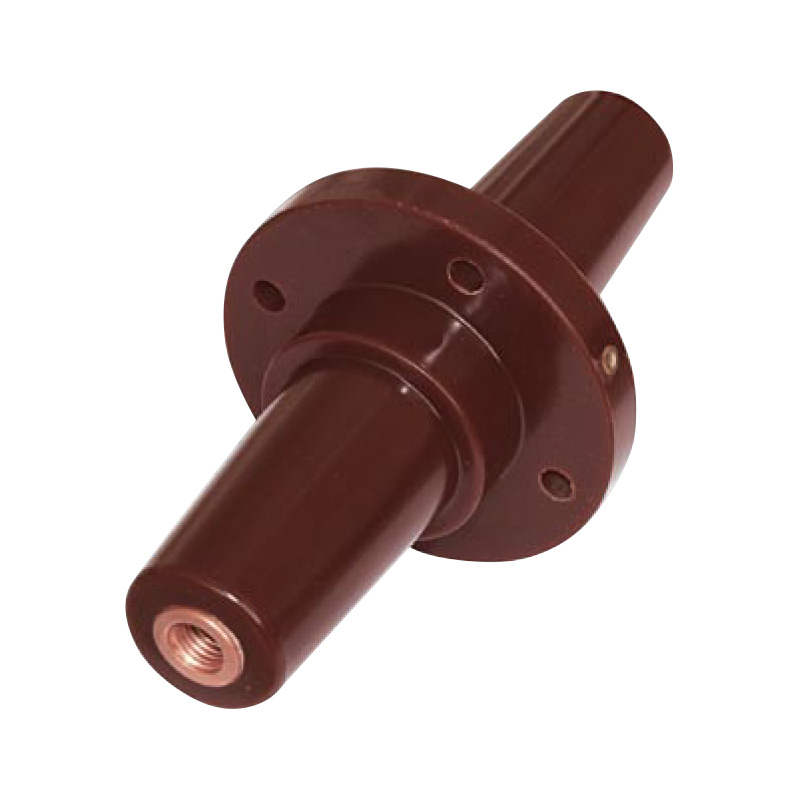

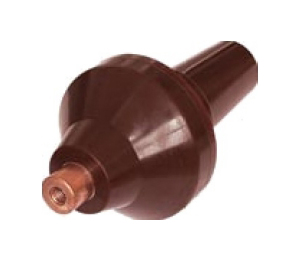

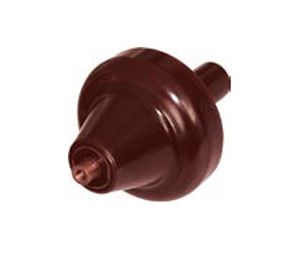

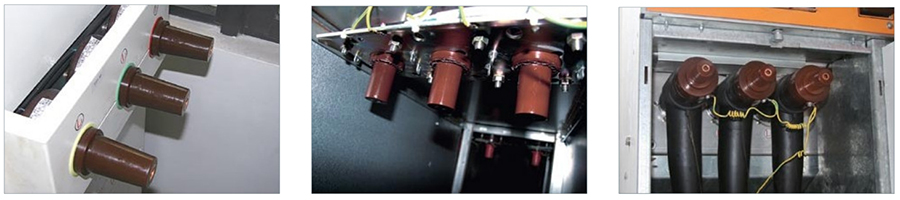

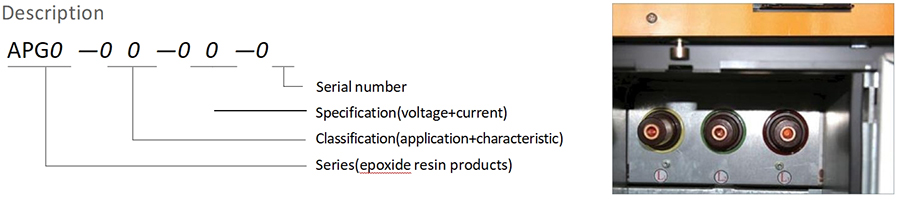

APGST-IASB-24/630-I
The outer-line of the switch cabinet and the 630A plug installation base.
APGST-IASB-24/630-iI
The outer-line of the switch cabinet and the 630A plug installation base.
APGST-IASB-24/630-ili
The 630A plug installation base with inch screw thread.

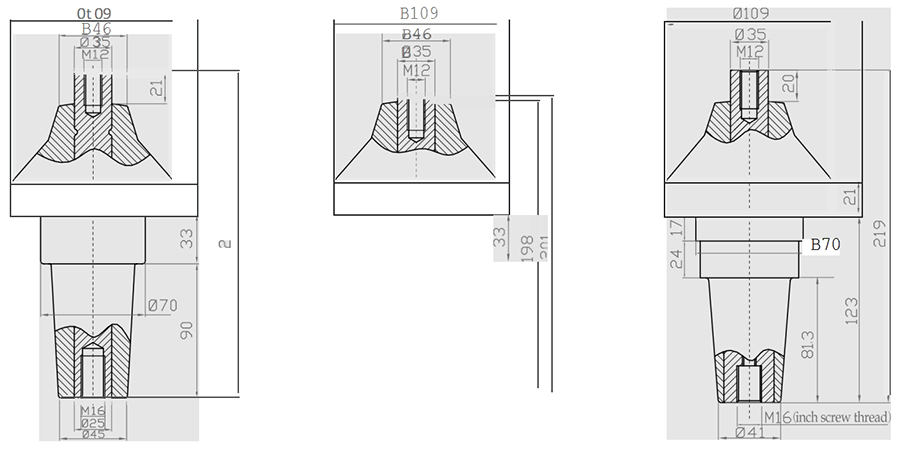

Technology Parameter
No |
Type | Total length
| Max outside diameter (mm) | Max system voltage (kV) | Break- over current (A) | Max impluse voltage (kV) | DryAC withstand voltage (kV) | Design standard | Connection methodof incoming- line | Connection methodof outcoming- line | Unit weight
|
Remark | |
APGST-IASB-24/630— 1 | 219 | 109 | 24 | 630 | 125 | 54 | DIN47636 | IEC137 | M12 thread connection | M16thread connection | 2025 | ||
2 | APGST-IASB-24/630—!l | 201 | 109 | 24 | 630 | 125 | 54 | HN52561 | IEC137 | M12 thread connection | M16thread Connection | 1960 | |
3 | APGST-IASB-24/630—B | 219 | 109 | 24 | 630 | 125 | S4 | / | IEEE386 | M12 thread connection | M16thread connection | 2120 | |

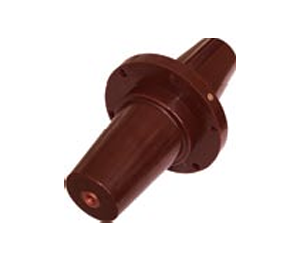

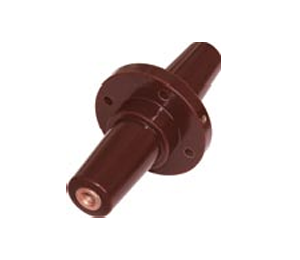

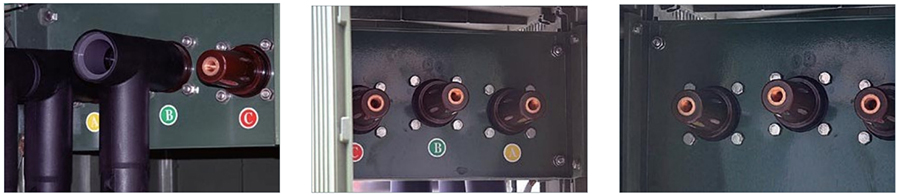

APGST-IASB-24/1250- I
The outer-line of the switch cabinet and the 1250A plug installation base.
APGST-IASB-24/1250-iI
The outer-line of the switch cabinet and the 1250A plug installation base.
APGST-IASB-24/1250-ill
The 1 250A plug installation base with inch screw thread.
Technology Parameter
No |
Type | Total length
| Max outside diameter (mm) | Max system voltage (kV) | Break- over current (A) | Max impluse voltage (kV) | DryAC withstand voltage (kV) |
Design standard | Connection methodof incoming- line | Connection methodof outcoming- line | Unit weight
|
Remark | |
APGST-IASB-24/125o— 1 | 219 | 109 | 24 | 1250 | 125 | 54 | DIN47636 | IEC137 | M12 thread connection | M16thread connection | 2791 | ||
2 | APGST-IASB-24/1250—II | 201 | 109 | 24 | 1250 | 125 | 54 | HN52561 | IEC137 | M12 thread connection | M16thread Connection | 2663 | |
3 | APGST-IASB-24/1250—B | 219 | 109 | 24 | 1250 | 125 | S4 | / | IEEE386 | M12 thread connection | M16thread connection | 2886 | |

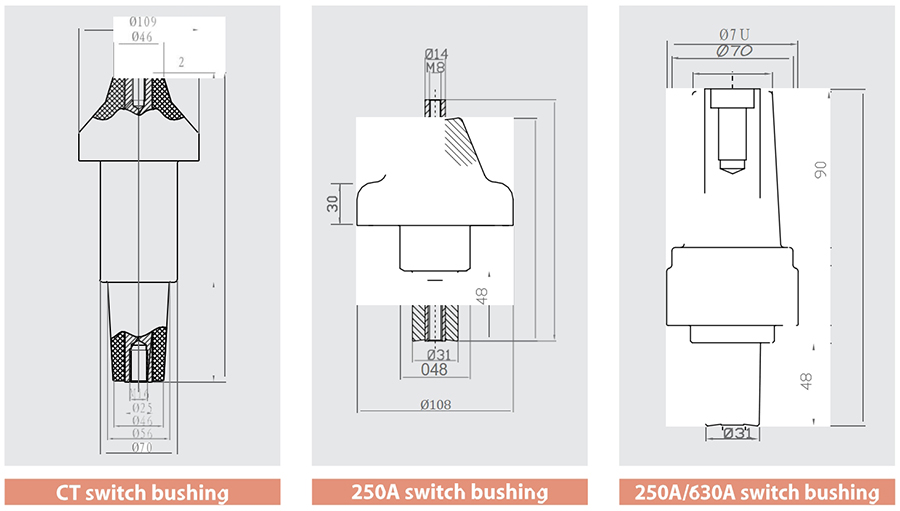

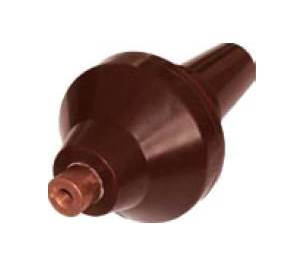

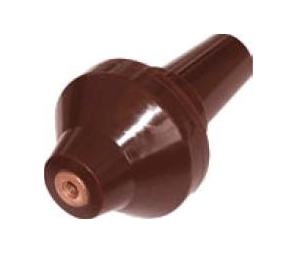

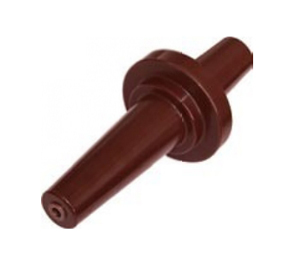

APGST-IASB-24/630-CT
24kV plug installation base for CT switch cabinet.

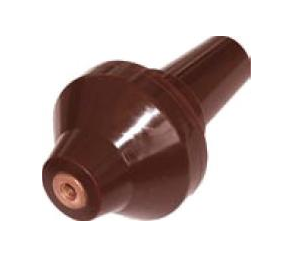

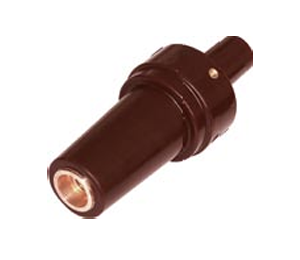

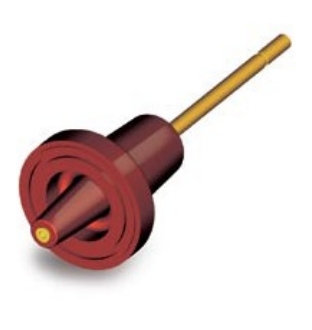

APGST-IASB-24/250
Installation base for the fuse outer-line of the switch cabinet and the 250A plug.
APGST-IASB-24(250/630)
Installation base for the abutting joìnt between 250A plug and 630A plug.
Technology Parameter
No |
Type | Total length (**) | Max outside diameter (mm) | Max system voltage (kV) | Break- over current (A) | Max impluse voltage (kV) | DryAC withstand voltage (kV) |
Design standard | Connection method of incoming- line | Connection method of outcoming- line | Unit weight (g) |
Remark | |
4 | APGST-IASB-24/630-CT | 281 | 109 | 24 | 630 | 125 | 54 | EN'î0181 | IEC137 | Ml6thread connection | Inserting- pulling connection |
2790 | |
5 |
APGST-IASB-24/250 |
1ó7 |
108 |
24 |
250 |
125 |
54 |
EN'î0181 |
IEC137 | M8thread connection | Inserting- pulling connection | 1o15 | |
6 | APGST-IASB-24(250/630) | 195 | 75 | 24 | 250/ 630 | 125 | 54 | EN50181 | IEC137 | M16thread connection | Inserting- pulling connection | 11o5 | |

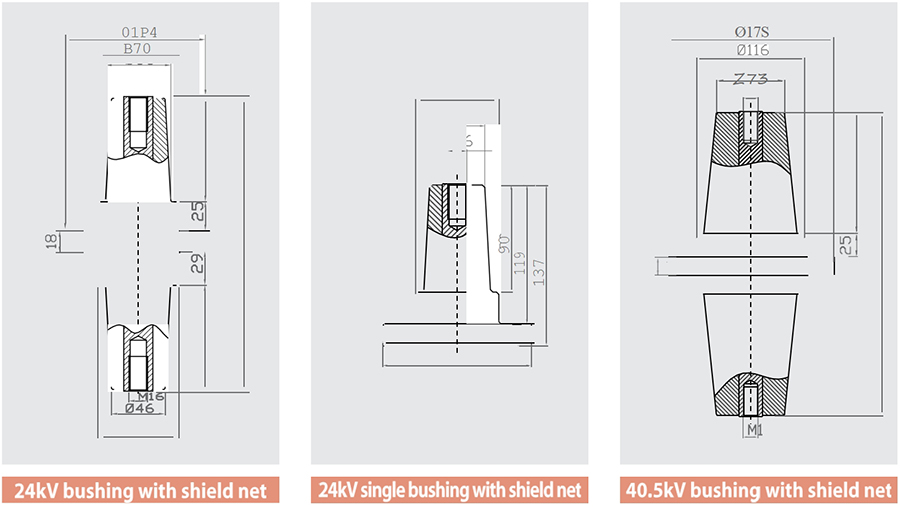

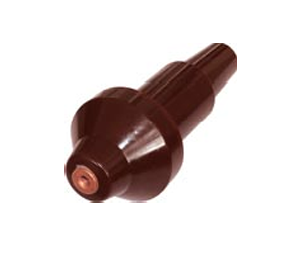

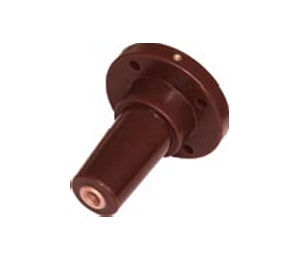

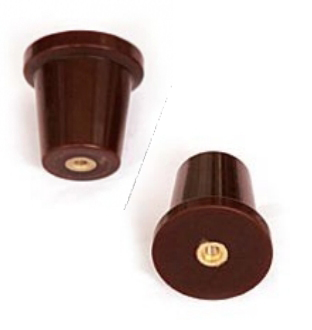

APGST-DSB-24/630
Installation base of 630A plug for 24kV distrubution cabinet.
APGST-DDB-24/630
Installation base of 630A plug for abutting joint cabinet.
APGST-DSB-40.5/630
Installation base of 630A plug for 36kV distrubution cabinet.
Technology Parameter
No |
Type | Total length
| Max outside diameter (mm) | Max system voltage (kV) | Break- over current (A) | Max impluse voltage (kV) | DryAC withstand voltage (kV) |
Design standard | Connection mE'th d incoming- line | Connection method f outcoming- line | Unit weight (g) |
Remark | |
7 | APGST-DSB-24/630 | 254 | 124 | 24 | 630 | 125 | 54 | EN50181 | IEC137 | M16thread connection | M16thread connection | 2135 | |
8 | APGST-DDB-24/630 | 137 | 124 | 24 | 630 | 125 | 54 | EN50181 | IEC137 | / | M16thread connection | 1270 | |
9 | APGST-DSB-40.5/630 | 328 | 179 | 40.5 | 630 | 200 | 117 | EN50181 | IEC137 | M16thread connection | M16thread connection | 5330 | |

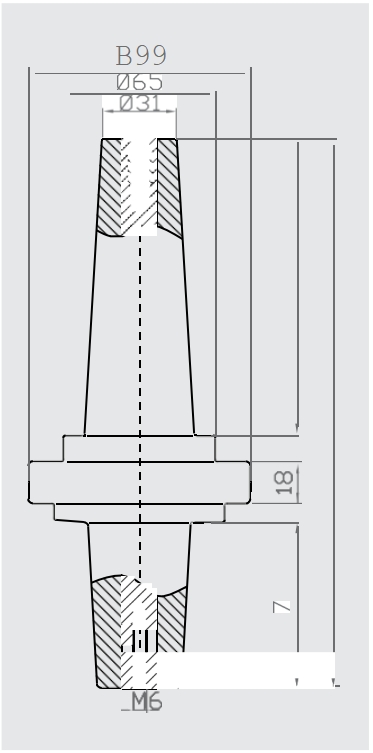

Technology Parameter
No | Type | Total length (mm) | Max outside diameter(mm) | Max system voltage(kV) | Break-over current(A) | Max impluse voltage(kV) |
10 | APGST-BSB-24/200 | 235 | 95 | 24 | 250 | 125 |
Dry AC withstand voltage(kV) | Design standard | Connectionmethod ofincoming-line | Connectionmethod ofoutcoming-line | Unit weight (g) | Remark | |
54 | EN50181 IEC137 | M16thread connection | Inserting-pulling connection | 1035 | ||
Other Products
Switch bushing on the pole
Stanchion insulator

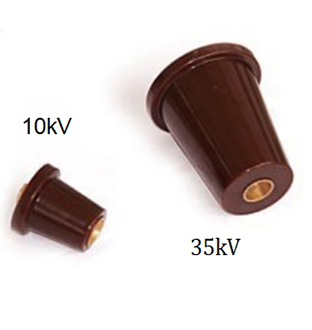

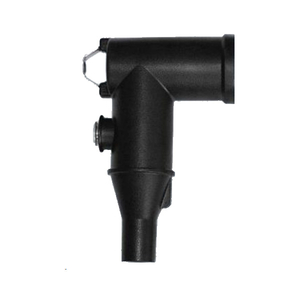

Back plug

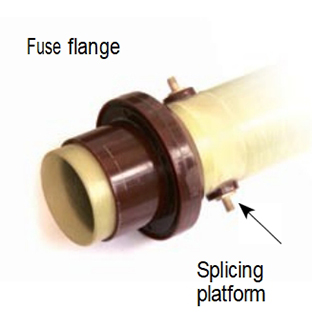

Fuse flange / Splicing platform
