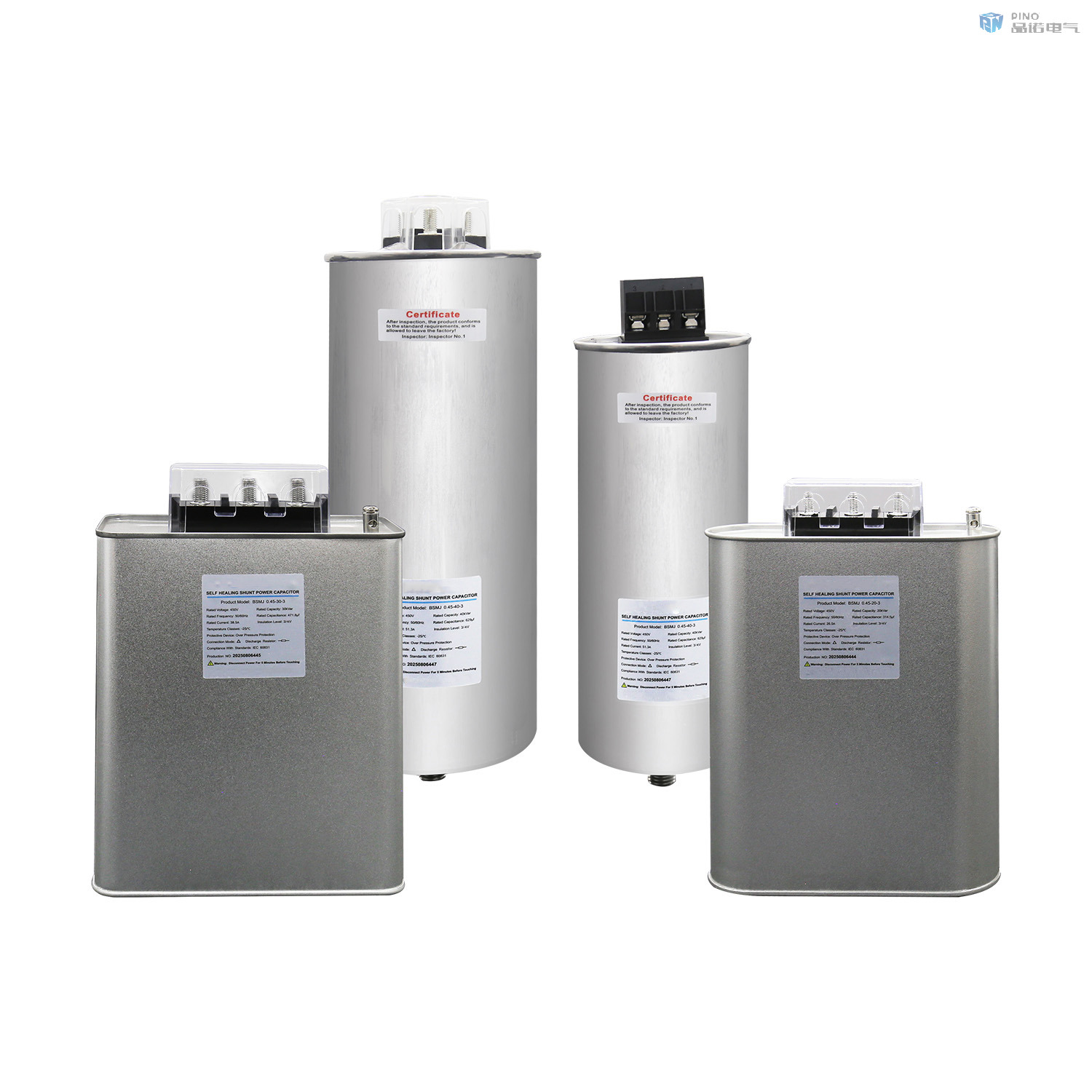

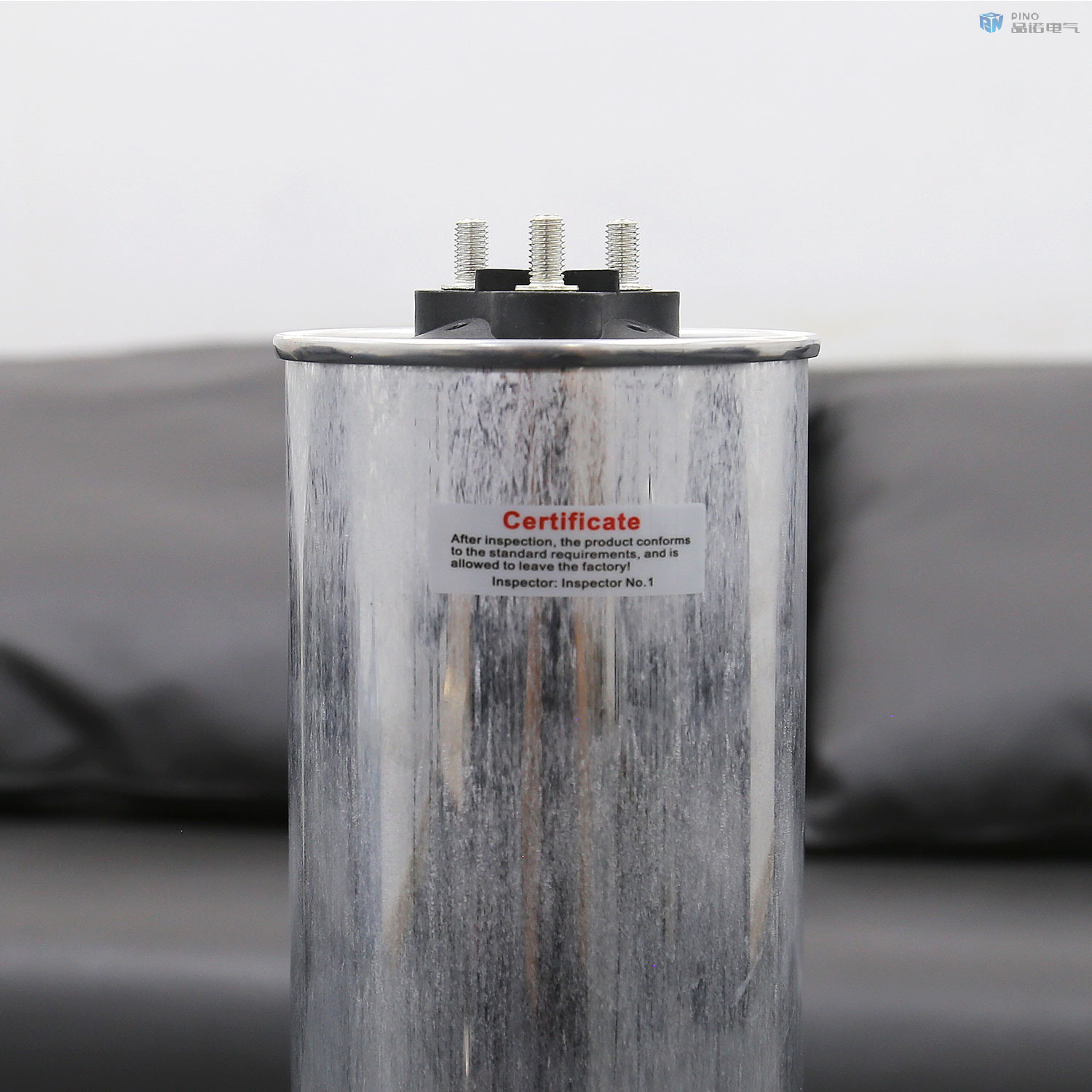

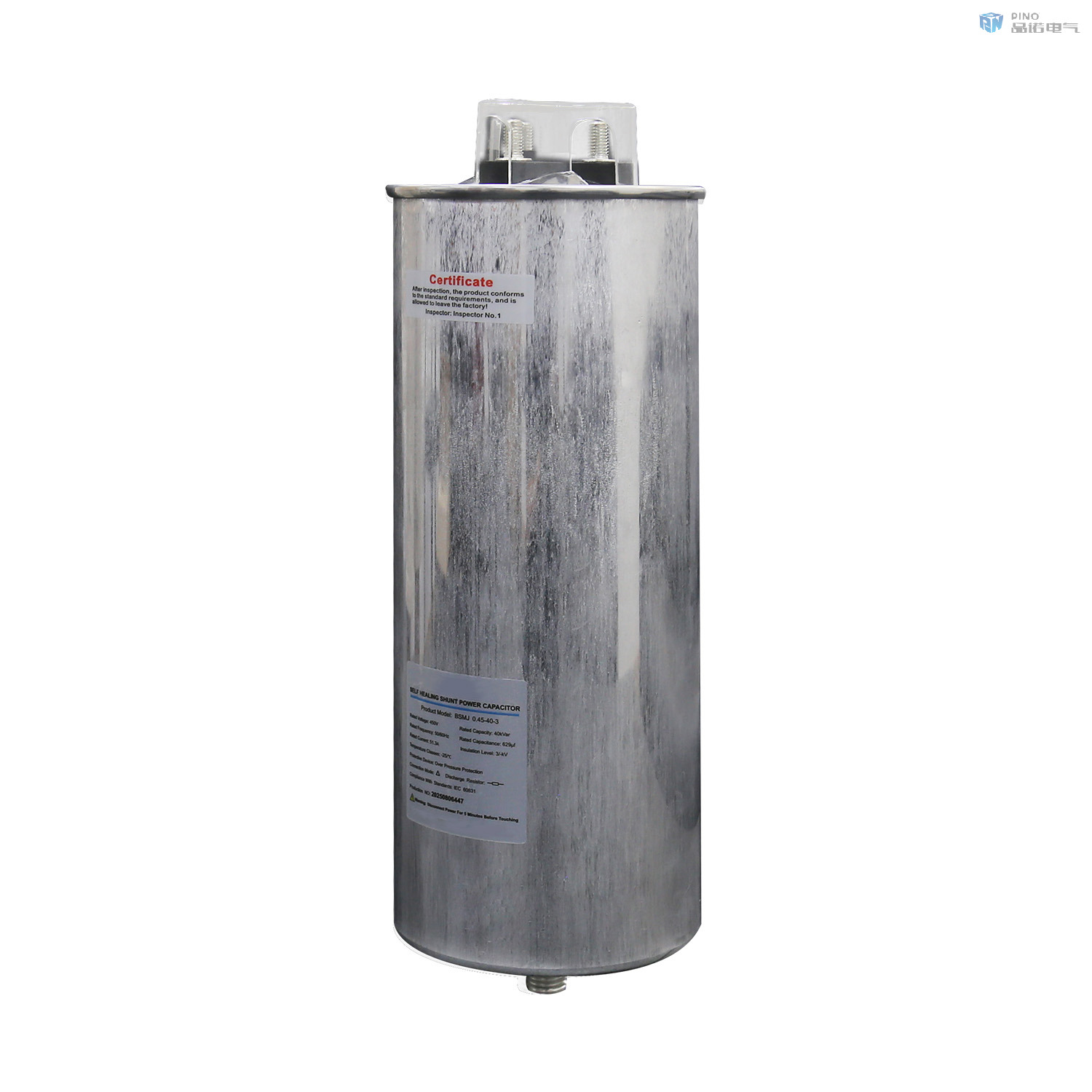

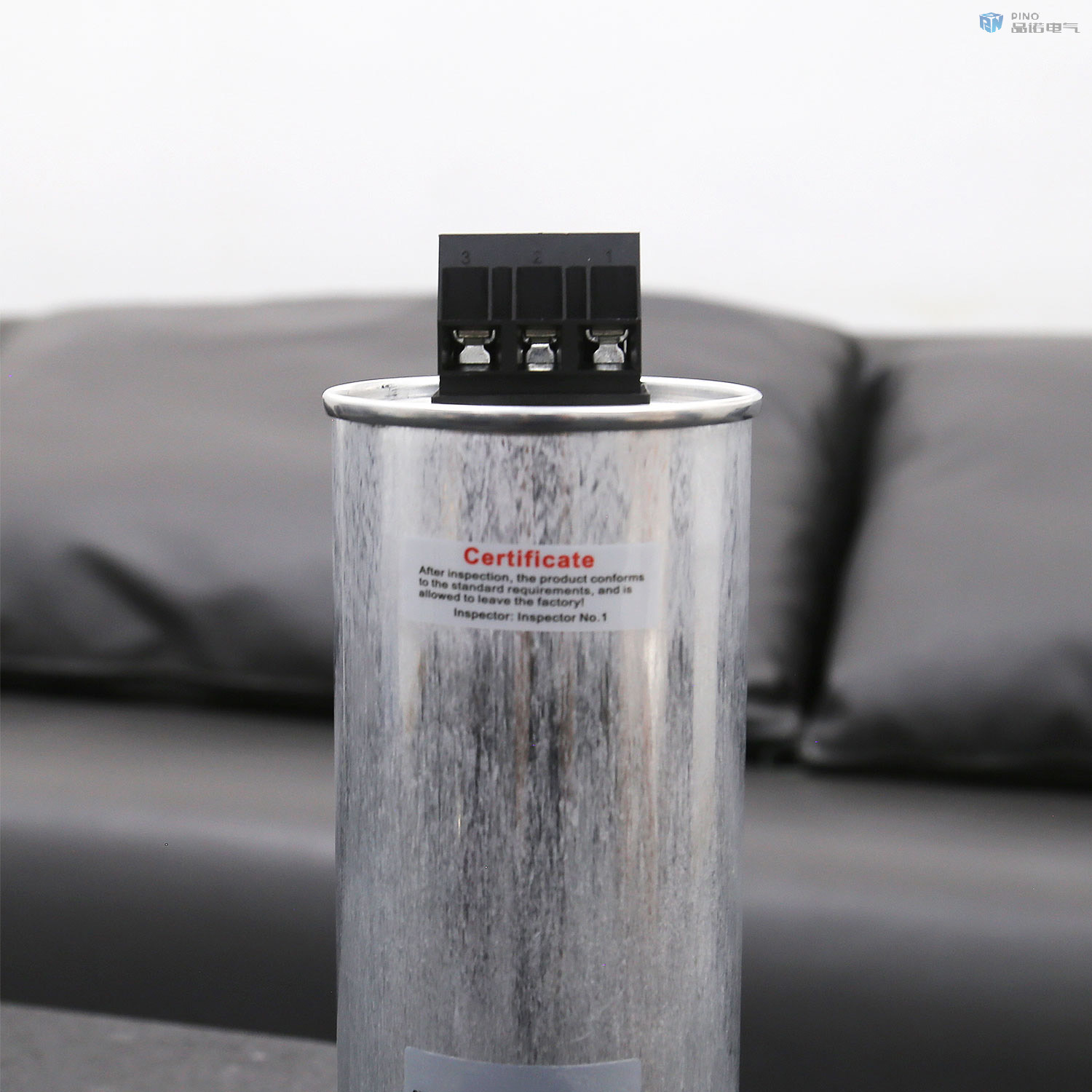

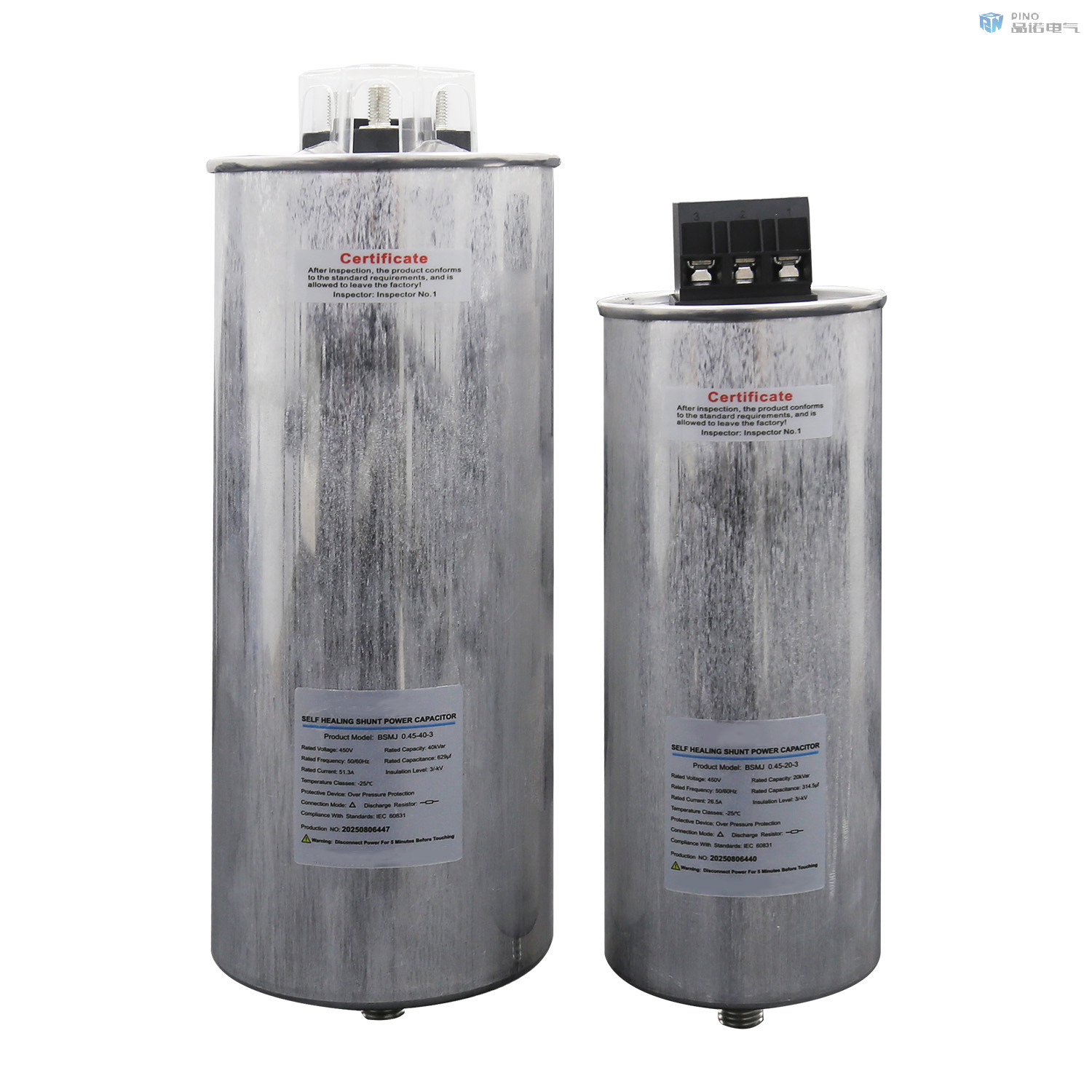

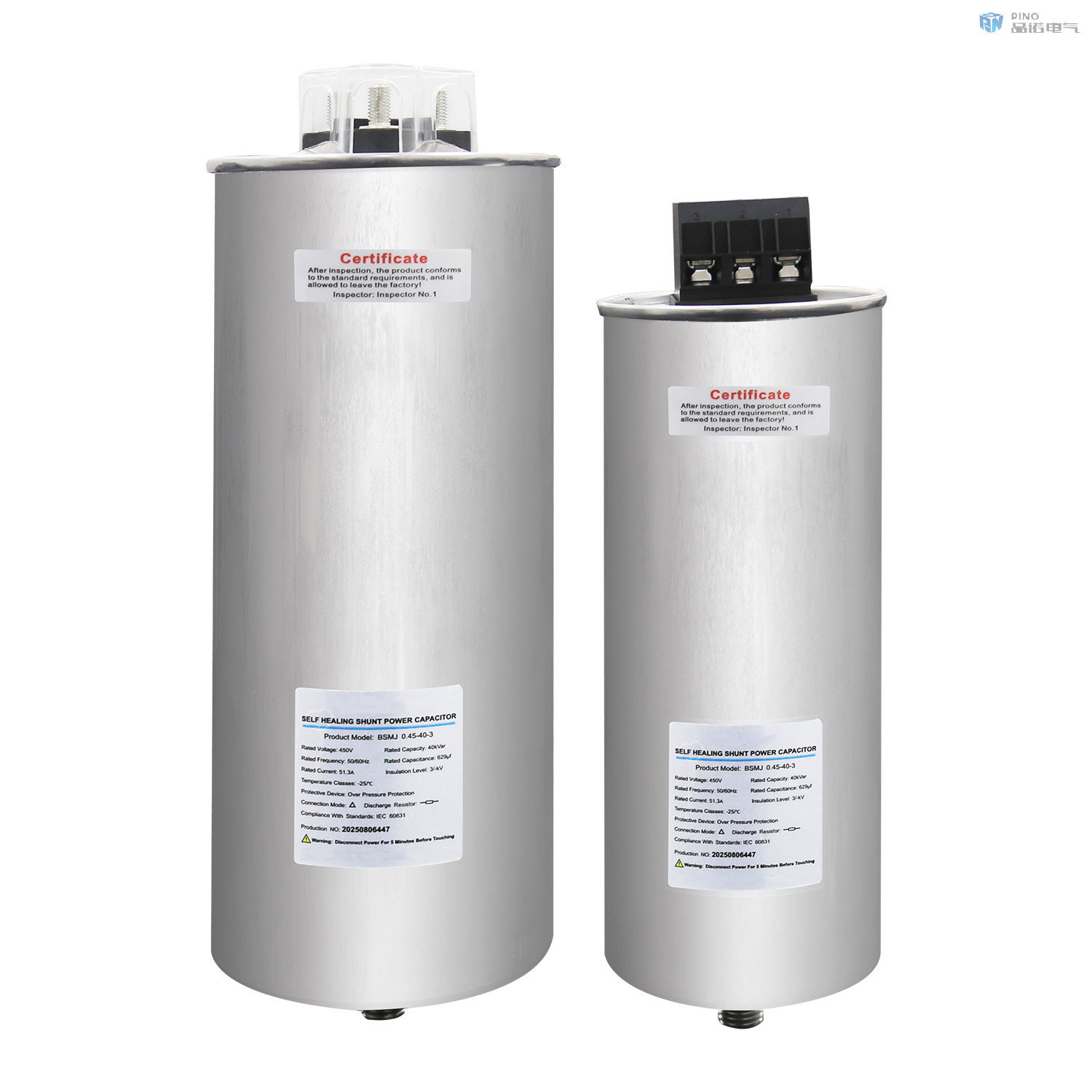

Low Voltage Three Phase Cylindrical Shunt Power Filter Capacitor

The self-healing L ow-voltage Shunt Power Capacitor is applicable to 50Hz and 60Hz power systems. It mainly serves to improve the power factor, reduce reactive power loss, enhance voltage quality, and tap the capacity of transformers, etc. It is a superior power-saving product strongly recommended and utilized by our company. This product complies with standards such as GB/T 12747-2004 and IEC 60831-1996.

Model:
BSMJ
Brand:
Pino Electric Technology

Availability:

Quantity:



Inquire Add to Basket

Filter Capacitor Low Voltage Shunt Capacitor Shunt Capacitor Filter Industrial Shunt Capacitor Custom Shunt Capacitor Manufacturer Shunt Capacitor Supplier Shunt Capacitor China Shunt Capacitor Factory Custom Low Voltage Shunt Capacitor

Product Description

Model: BSMJ Brand: Pino Electric Technology Rated Voltage: 200V 220V 230V 240V 250V 380V 400V 415V 440V 450V 480V 600V 690V Rated Frequency: 50/60Hz Phase: 3/4 MOQ: 1 Piece Rated Capacity: 5, 10, 15, 20, 25, 30, 35, 40, 50kvar

Overview

The BSMJ Dry Type Low-voltage Shunt Capacitor is a high-performance electrical component designed for power systems, commonly utilized in both industrial and commercial settings. Its primary role is to enhance power quality and improve system efficiency. With advanced manufacturing techniques, the BSMJ capacitor offers excellent insulation properties and durability, ensuring reliable operation under various conditions. It adheres to international standards established by the International Electrotechnical Commission (IEC), making it essential for reactive power compensation and harmonic filtering, thus significantly contributing to the efficiency of power systems.

Product Features

Power Factor Compensation:

Reduces reactive power effectively, enhances system power factor, and lowers electricity costs.

Harmonic Filtering:

Minimizes harmonics, improves power quality, and protects equipment from overload and damage.

High Temperature Resistance:

Constructed with high-quality insulation materials, it maintains stable performance in elevated temperatures, extending its lifespan.

Low Loss:

Optimized design ensures minimal energy consumption during operation, boosting overall system efficiency.

Environmental Resistance:

Features exceptional moisture, corrosion, and shock resistance, suitable for harsh operating environments.

Ease of Maintenance:

Modular design simplifies installation and maintenance, minimizing downtime.

Eco-Friendly Materials:

Manufactured from non-toxic materials, complying with environmental standards and supporting sustainable development.

Product Features

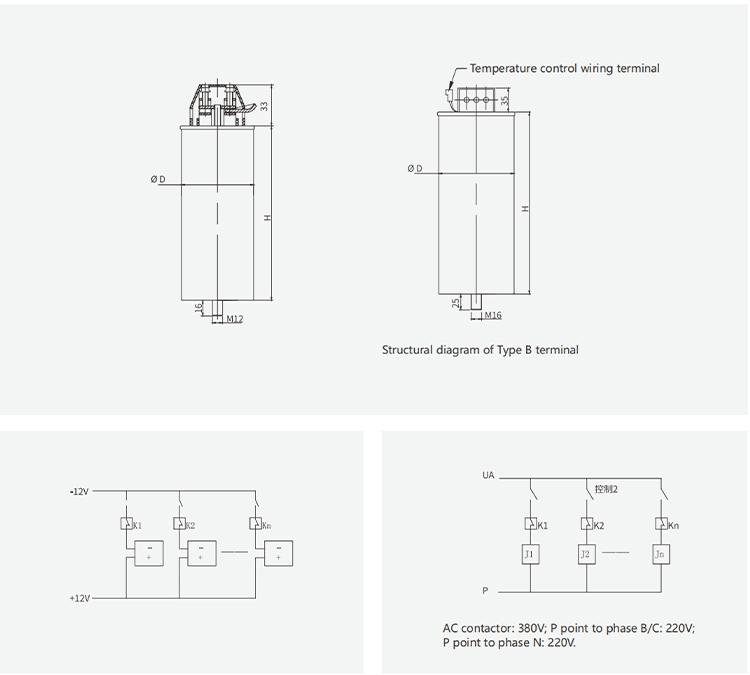

NO.	Specifications	Rated voltage KV	Rated capacity Kvar	Rated frequency Hz	Rated capacity HF	Rated current A	Shell height	Drawing No.
1	BSMJ0.4-5-3	0.4	5	50	99.5	7.2	115	A
2	BSMJ0.4-10-3	0.4	10	50	199	14.4	125	A
3	BSMJ0.4-15-3	0.4	15	50	298.5	21.6	180	A
4	BSMJ0.4-20-3	0.4	20	50	398	28.8	210	A
5	BSMJ0.4-25-3	0.4	25	50	497.5	36	240	A
6	BSMJ0.4-30-3	0.4	30	50	597	43.2	210	B
7	BSMJ0.4-40-3	0.4	40	50	796	57.6	250	B
8	BSMJ0.4-50-3	0.4	50	50	995	72	300	B
9	BSMJ0.45-5-3	0.45	5	50	78.65	6.4	115	A
10	BSMJ0.45-10-3	0.45	10	50	157.3	12.8	125	A
11	BSMJ0.45-15-3	0.45	15	50	235.95	19.2	180	A
12	BSMJ0.45-20-3	0.45	20	50	314.6	25.6	210	A
13	BSMJ0.45-25-3	0.45	25	50	393.25	32	240	A
14	BSMJ0.45-30-3	0.45	30	50	471.9	38.4	210	B
15	BSMJ0.45-40-3	0.45	40	50	629.2	51.3	250	B
16	BSMJ0.45-50-3	0.45	50	50	786.5	64	300	B
17	BSMJ0.48-5-3	0.48	5	50	69.1	6	125	A
18	BSMJ0.48-10-3	0.48	10	50	138.2	12	125	A
19	BSMJ0.48-15-3	0.48	15	50	207.3	18	210	A
20	BSMJ0.48-20-3	0.48	20	50	276.4	24	210	A
21	BSMJ0.48-25-3	0.48	25	50	345.5	30	210	B
22	BSMJ0.48-30-3	0.48	30	50	414.6	36	250	B
23	BSMJ0.48-40-3	0.48	40	50	552.8	48	300	B
24	BSMJ0.48-50-3	0.48	50	50	691	60	300	B
25	BSMJ0.525-5-3	0.525	5	50	57.7	5.5	115	A
26	BSMJ0.525-10-3	0.525	10	50	115.5	11	125	A
27	BSMJ0.525-15-3	0.525	15	50	173.3	16.5	180	A
28	BSMJ0.525-20-3	0.525	20	50	231	22	210	A
29	BSMJ0.525-25-3	0.525	25	50	288.9	27.5	210	B
30	BSMJ0.525-30-3	0.525	30	50	346.6	33	210	B
31	BSMJ0.525-40-3	0.525	40	50	462.2	44	250	B
32	BSMJ0.525-50-3	0.525	50	50	577.7	55	300	B
33	BSMJ0.69-20-3	0.69	20	50	134	16.7	240	A
34	BSMJ0.69-30-3	0.69	30	50	200.7	25.1	250	B
35	BSMJ0.25-5-3YN	0.25	5	50	254.5	6.7	115	A
36	BSMJ025-10-3YN	0.25	10	50	509	13.3	180	A
37	BSMJ025-15-3YN	0.25	15	50	763.5	20	240	A
38	BSMJ0.25-20-3YN	0.25	20	50	1018	26.7	210	B
39	BSMJ0.25-25-3YN	0.25	25	50	1275	33.3	250	B
40	BSMJ0.25-30-3YN	0.25	30	50	1527	40	300	B
