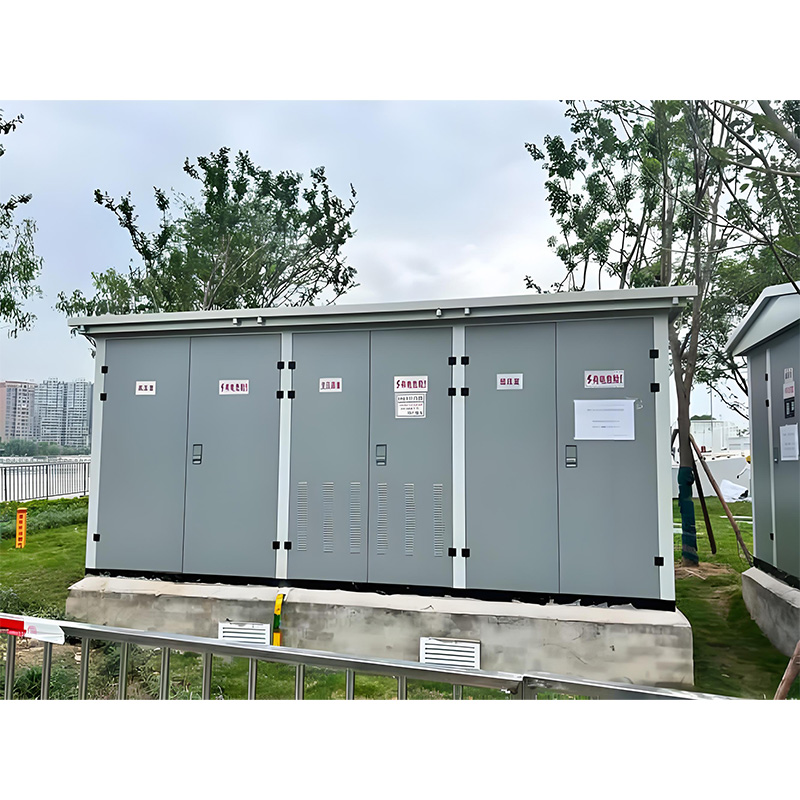

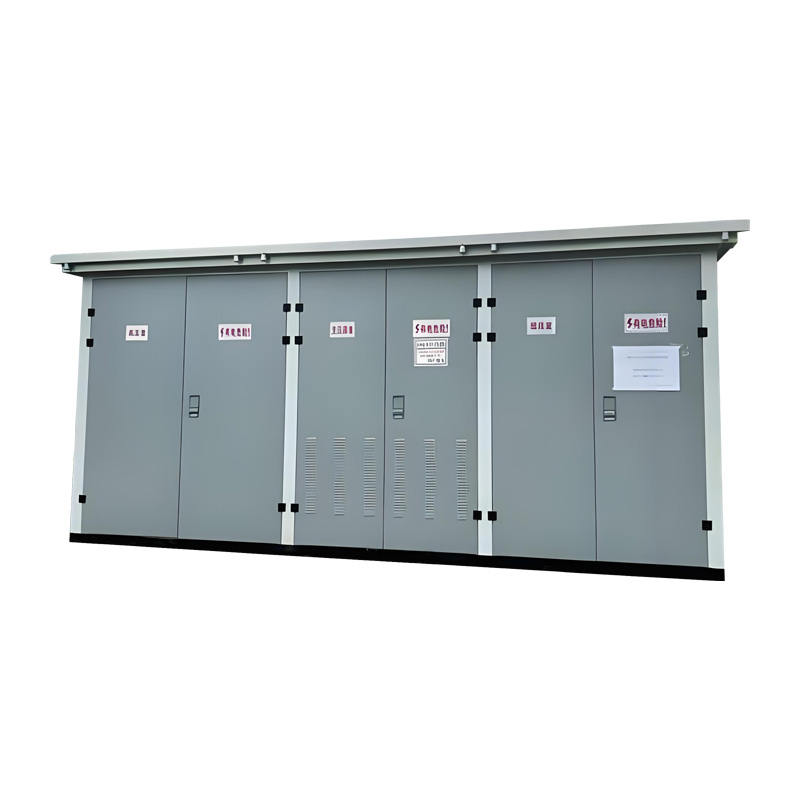

Medium-Voltage Compact Substation、Complete Substation

A compact medium voltage substation is an advanced power equipment that integrates high-voltage switchgear, transformers, and low-voltage distribution devices. They are capable of receiving, converting, and distributing medium voltage electrical energy, converting high voltage electricity into low voltage electricity suitable for user use. Adopting the modular design concept, assembly and debugging are completed in the factory, and on-site installation is convenient, which can effectively shorten the construction period and provide reliable and stable power supply for various places.

Product Advantages and Features

1. Compact modular design: Adopting modular design, each functional module is highly integrated, reducing the volume by 30% -40% compared to traditional substations. It occupies a small area and is easy to install in places with limited space, such as urban center areas and old residential area renovations.

2. High reliability: Key electrical components are selected from internationally renowned brands such as Siemens, ABB, etc. The average time between failures can reach over 80000 hours, greatly reducing the occurrence of failures and ensuring stable power supply.

3. Intelligent monitoring system: equipped with an intelligent monitoring system, it can monitor operating parameters such as voltage, current, temperature in real time, achieve remote control and fault warning. Once an abnormality occurs, an alarm can be issued within 0.1 seconds, which facilitates timely handling by operation and maintenance personnel and improves operation and maintenance efficiency.

4. Flexible configuration: High voltage switches, transformer capacity, and low-voltage distribution solutions can be flexibly configured according to different user needs to meet various power consumption scenarios such as industrial, commercial, and residential, providing personalized power solutions.

5. Efficient heat dissipation system: With a unique heat dissipation duct design and efficient heat dissipation materials, the temperature of the transformer winding can be reduced by 10-15 ℃ compared to ordinary products, effectively extending the service life of the equipment and ensuring long-term stable operation.

Application Scenarios

1. Industrial plant area: Provide stable power for various production equipment in the factory, meet the voltage and current requirements of different production processes, ensure the continuous operation of production lines, and improve production efficiency.

2. Commercial complex: used in commercial places such as shopping malls, office buildings, hotels, etc., to ensure the normal operation of lighting, air conditioning, elevators and other equipment, provide reliable power support for commercial activities, and create a comfortable commercial environment.

3. Residential communities: undertake the task of power distribution in residential communities, provide stable guarantee for residents' daily electricity consumption, meet various electricity needs such as lighting, home appliances, charging piles, etc., and improve residents' quality of life.
