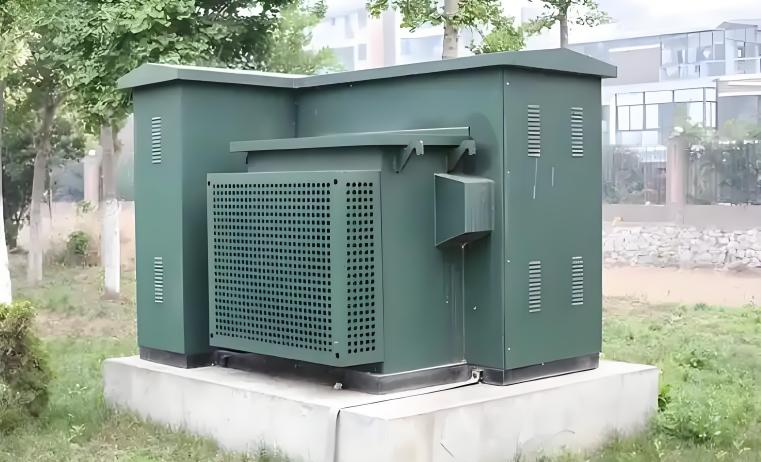

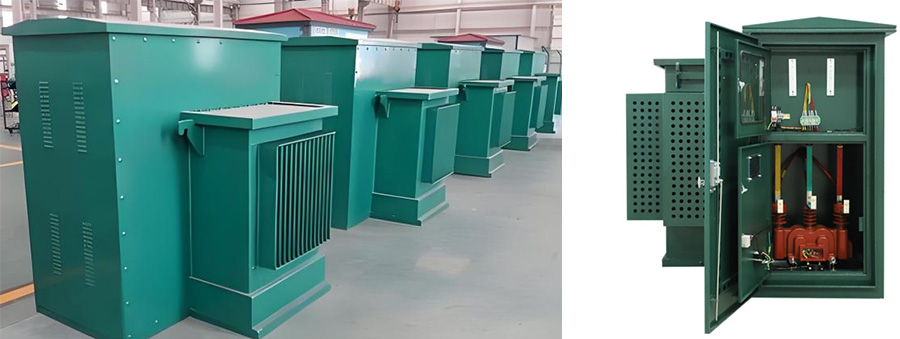

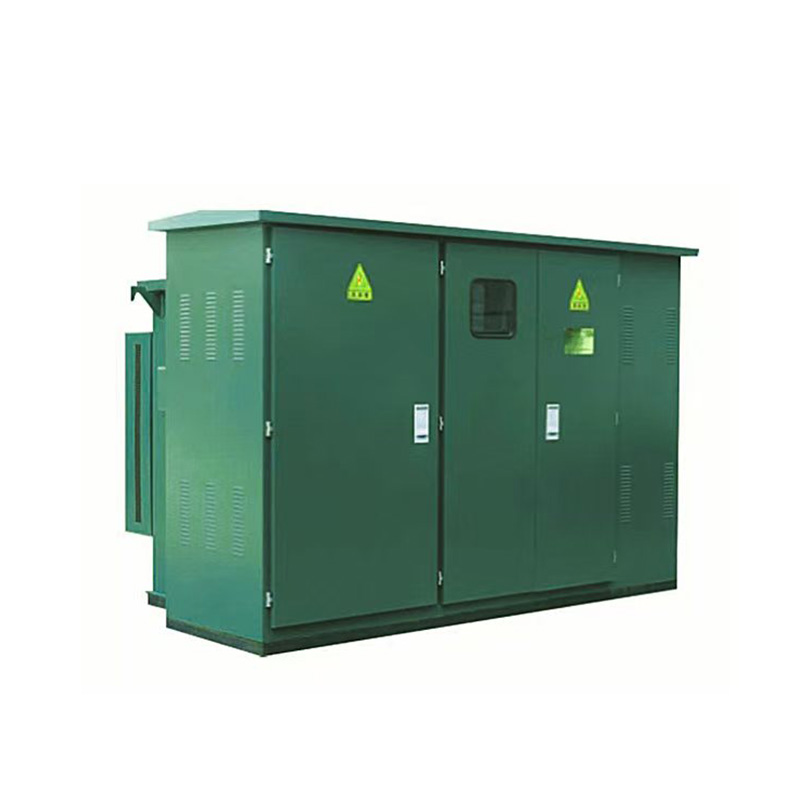

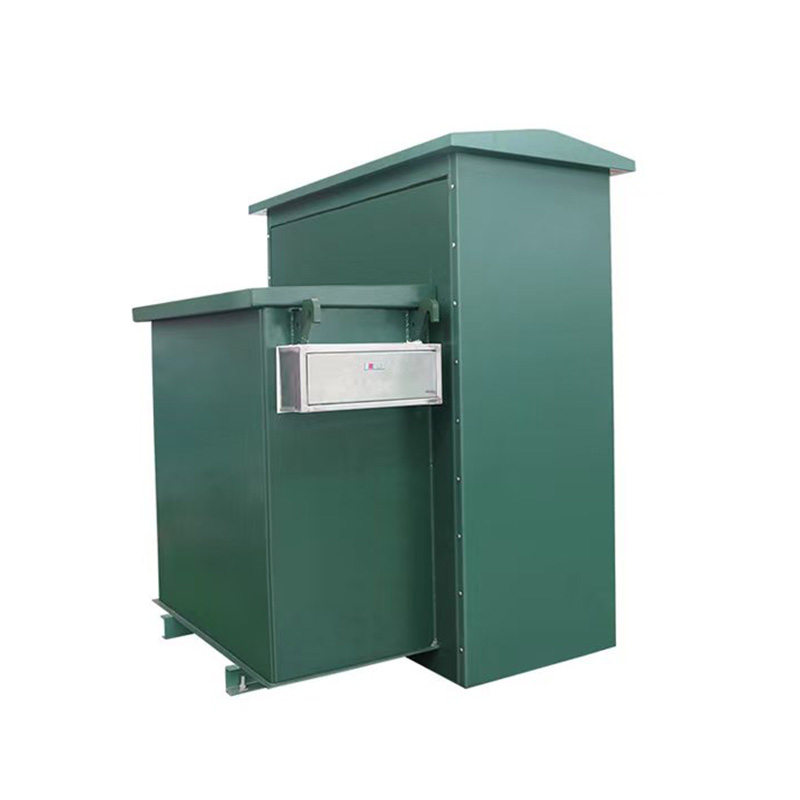

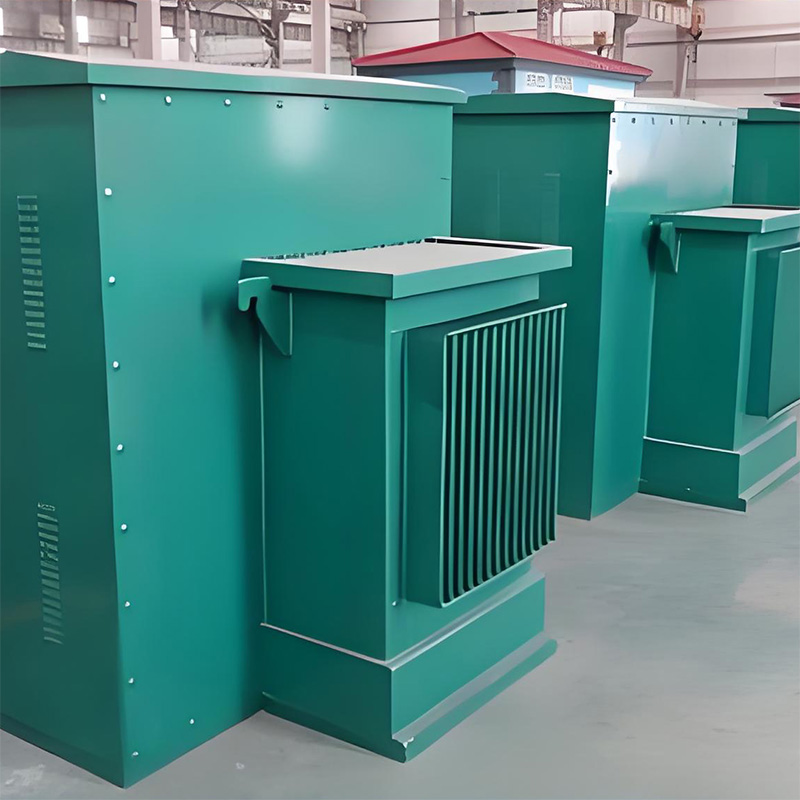

‌Medium-Voltage Compact Apartment Substation (6~10kV)

The medium voltage compact 6-10kV apartment substation is an advanced compact distribution device that integrates high-voltage electrical equipment, transformers, and low-voltage electrical equipment. It can convert medium voltage into low voltage suitable for various electrical equipment in a 6-15KV, 50HZ (60HZ) distribution system, achieving efficient power distribution and control. The product follows the IEC1330 standard and is assembled and debugged in the factory. It is easy to install on site and can quickly provide stable power supply to various places.

Product Advantages and Features

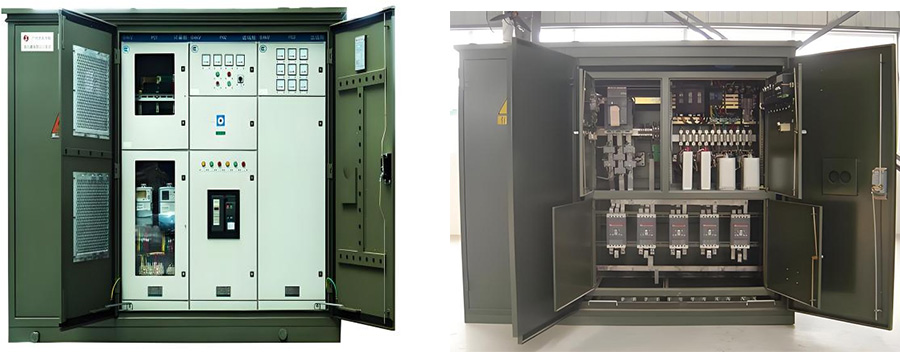

1. Ultra high integration: High voltage switchgear, transformers, and low-voltage distribution equipment are highly integrated into a compact box, reducing the connection links between devices and improving the stability and reliability of the system. Compared with traditional decentralized distribution equipment, the failure rate is reduced by 30%.

Small and compact, space saving: With a compact size and structure, compared to conventional civil substations, it only requires 1/10-1/15 of the building area under the same capacity. Whether it's high-rise buildings in cities with limited space or temporary construction sites with narrow spaces, they can be easily installed.

3. Safe and reliable operation: Key electrical components are selected from high-quality brands, with complete protection functions such as lightning protection, short circuit, overload, etc. After strict testing, they can withstand 1.2 times the rated current overload for up to 2 hours, ensuring stable operation under complex working conditions and ensuring electrical safety.

4. Convenient and efficient maintenance: adopting modular design, each functional module is independent and easy to disassemble. Maintenance personnel can quickly locate and replace faulty modules, reducing the average fault repair time by 50%, effectively reducing maintenance costs and power outage time.

5. Wide applicability: Suitable for ring network distribution systems and dual power or radiation terminal distribution systems, it can be flexibly applied to various places such as urban and rural areas, residential areas, high-tech development zones, small and medium-sized factories, mining areas, oil fields, temporary construction sites, etc., to meet the distribution needs of different scenarios.

Application Scenarios

1. High rise buildings and skyscrapers: installed in basement or rooftop equipment rooms, providing power for lighting, elevators, air conditioning and other equipment, solving the problem of tight space in high-rise buildings, and ensuring stable power supply.

2. Residential community: In the power distribution room of the community, it provides guarantee for residents' daily electricity consumption. Its compact design reduces the occupation of greenery and public space in the community, and improves the quality of the living environment.

3. Small and medium-sized factories: meet the electricity needs of various production equipment in the factory, can be flexibly placed in the factory area, occupies a small area and has reliable power supply, helping the factory to produce efficiently.
