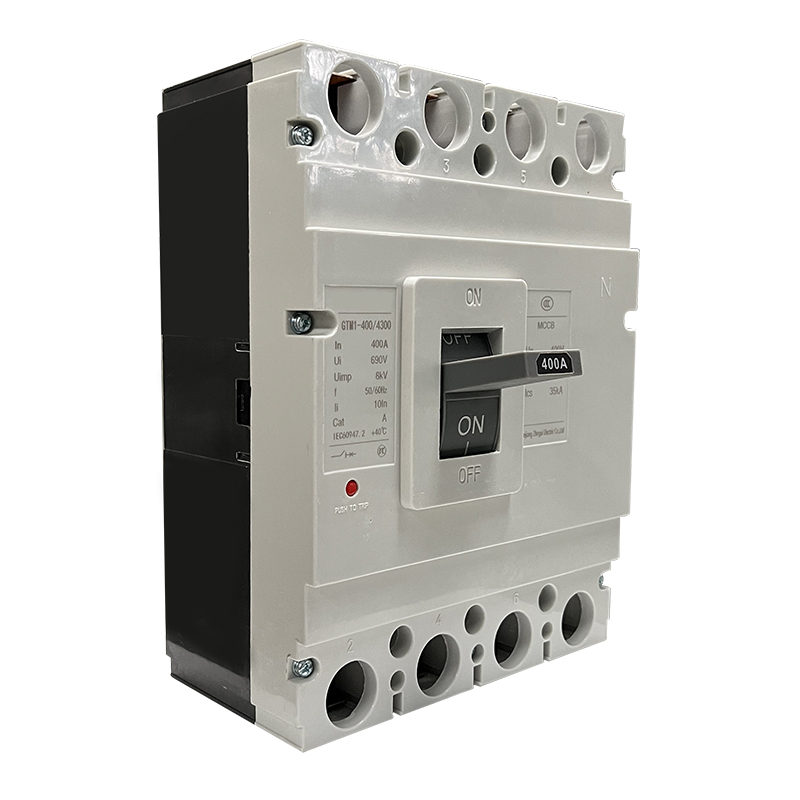

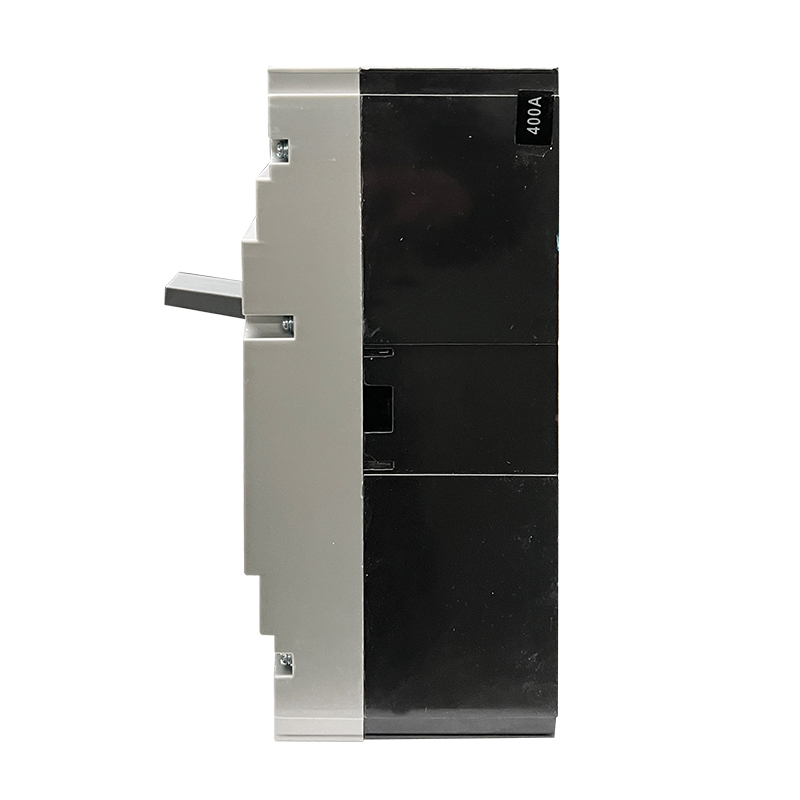

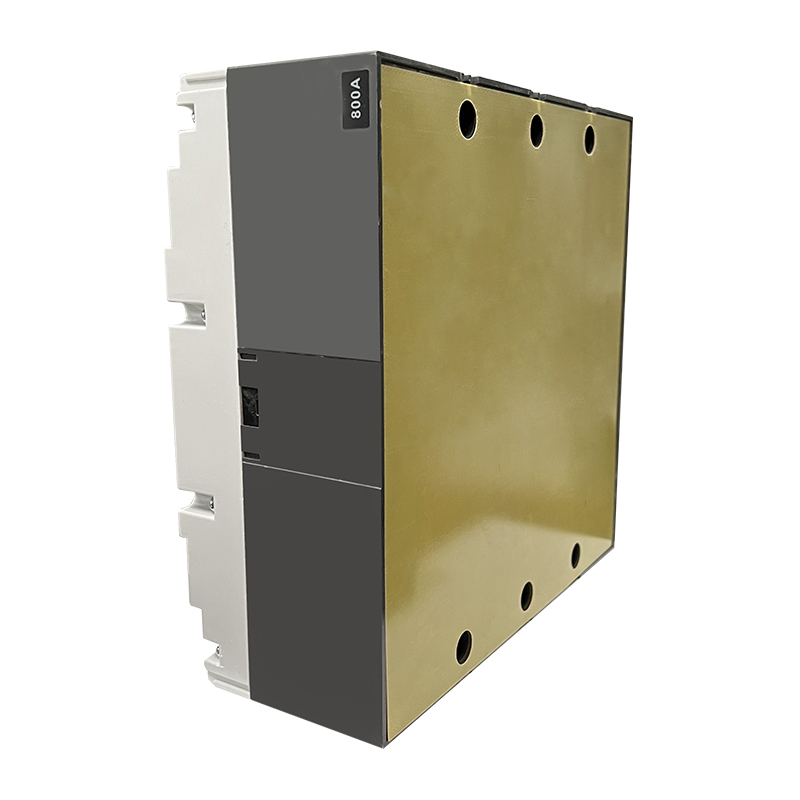

M1 Series 2P 3P 4P Molded Case Circuit Breaker

M1 series moulded case circuit breaker is suitable for occasional conversion and motor start (lnms 630A trpe and below) under the circuit of AC 50hz/60hz, rated insulation voltage of 690V (500V for GMLM1-63), rated operational vltage of 400V and below and rated current to 1250A.

Installation: Vertical/ Horizontal

Conforms to IEC 60947-2 and GB14048.2 standards

Rated Current:

63A 630A 1250A

Phase:

3

Model:
M1 Circuit Breaker
Brand:
Pino Electric
Code:
PN-M1

Availability:

Quantity:



Inquire Add to Basket

M1 Molded Case Circuit Breaker 2P/3P/4P MCCB M1 Series Circuit Breaker Thermal-Magnetic MCCB IEC 60947-2 Certified Breaker 16A-1600A Current Range Commercial Building Distribution Solar PV System Protection IP40 Protection Grade UL/CE Certified MCCB

Product Description

Model:M1 Brand:Pino Electric Standard:IEC GB Product name:M1 MCCB Rated Voltage:AC400/690V Rated Current:Up to 800A Rated Frequency:50/60hz MOQ:1pcs

Overview

The GTM1 Molded Case Circuit Breaker (MCCB) stands as a pinnacle of electrical protection technology designed for low-voltage distribution systems. Engineered to swiftly sever abnormal currents, it safeguards against overloads and short circuits, thereby protecting electrical infrastructures. Encased in robust plastic and equipped with a state-of-the-art circuit interruption mechanism, the GTM1 MCCB is dedicated to delivering unparalleled safety. It is an indispensable asset across a variety of settings, including industrial, commercial, and residential environments, ensuring electrical integrity and security.

Product Features

Exceptional Interruption Capacity: With the ability to rapidly address significant short-circuit currents, it acts swiftly to disconnect circuits, averting potential electrical fires and safeguarding equipment from damage.
Precision Sensitivity: Boasting superior detection capabilities for overload and short circuits, it promptly identifies irregularities in current, thereby significantly reducing the likelihood of electrical mishaps.
User-Friendly Operation: Designed with the user in mind, it offers both manual and automatic modes of operation, providing adaptability and ease of use to meet diverse needs.
Modular Configuration: Its modular design streamlines the customization process, allowing for easy selection and arrangement based on specific circuit requirements, thus facilitating effortless installation and maintenance.
Built to Last: Constructed from premium materials using cutting-edge techniques, it promises consistent, reliable performance, even under adverse conditions.
Sustainability in Mind: By incorporating eco-friendly materials in its production, it not only ensures safety but also aligns with contemporary environmental conservation standards.
Versatile Applications: Compatible with a range of voltage and current specifications, it caters to various applications, from residential homes and commercial hubs to industrial sites, offering steadfast electrical protection.

Technical Data

Type	Rated current (A)	Pole	Rate dinsulating voltage(V)	Rated operating voltage(V)	Arcingover distance(mm)	Ultimate short circuit breaking capacity(kA)	Service short circuit breaking capacity(kA)	Operation performance		Utilization category
								Load	Unload
GTM1-63L	(6),10,16,20, 25,32,40,50,63	3，4	500V	400V	0	25	18	1500	8500	A
GTM1-63M					0	50	35
GTM1-125L	(10),16,20,25, 32,40,50,63 80,100,125		800V		0(≤50)	35	22
GTM1-125M					0(≤50)	50	35
GTM1-250L	100,125,160, 180,200,225				≤50	35	22	1000	7000
GTM1-250M					≤50	50	35
GTM1-400L	225,250,315, 350,400				≤50	50	35	1000	4000
GTM1-400M					≤100	65	42
GTM1-630L	400 500 600				≤100	50	35
GTM1-630M					≤100	65	42
GTM1-800M	630,700,800				≤100	75	50
GTM1-1250M	1000,1250				≤100 ≤100	100 150	65 80

Note: 6A without thermal protection

The N-pole of four-poles breaker is sited at the right side of the product has four types:

Type A: Without current trip-release on N pole which making all the time, not closing and opening with the other three poles.

Type B: Without current trip-release on N pole which closing and opening with the other poles..

Type C: With current trip-release which closing and opening with the other three poles.

Type D: With current trip-release which making all the time not closing and opening with the other three poles.

Protection Characteristic

The thermodynamic release of a circuit breaker provides the feature of inverse time-delay, while the magnetic release is the instantaneous operation as shown on table 2(distribution circuit breaker) and table 3 (motor protection circuit breaker).

d current of release (A)	Thermodynamic release( ambient temperature land +40°℃ marine +45°C )		Operating current of magnetic release (A)
d current of release (A)	1.05In(cold state) Inoperative time(h)	1.30In(heat state) Operative time(h)	Operating current of magnetic release (A)
10 ≤In ≤ 63	≥1	<1	10In ±20%
63 ≤In ≤ 100	>2	<2	10In ±20%
100 ≤In ≤ 800	≥2	<2	5In ±20% 10In ±20%

Rated current of release (A)	Thermodynamic release( ambient temperature land +40°℃ marine +45°C )				Operating current of magnetic release (A)
	1.0ln(cold state) non-trip time(h)	1.20ln(heat state) trip time (h)	1.50ln(heat state) trip time (m)	7.2In(cold state) trip time(s)
10 ≤In ≤ 250	≥2	<2	≤4	4<t≤10	12In ±20%
250 ≤In ≤ 630			≤8	6<t≤20

Outline and Installation Dimensions (mm)

	Outline Dimensions(mm)																																Installation Dimensions
	Front panel connection																	Back panel connection					Plug- in connection										Installation Dimensions
	W	W1	L	L1	L2	H	H1	H2	H3	H4	C	D	E	F	G	W2	W3	L4	H5	H6	ØD	ØD1	L5	L6	H7	H8	H9	H10	J	K	Ød1	M	A	B	Ød
GTM1-63L	76	50	135	170	117	74	92	20	7	4	85	28.5	48	22	14	100	75	117	44	66	8	8							60.7				25	117	3.5
GTM1-63M	76	50	135	170	117	82	98.5	28	7	4	85	28.5	48	22	14	100	75	117	44	66	8	8							62				25	117	3.5
GTM1-100L	92	60	150	185	132	68	86	24	7	4	88	35.5	50	22	17.5	122	90	129	68	108	26	16	92	168	50	62	74	17.5	56	60	6.5	M8	30	129	4.5
GTM1-100M	92	60	150	185	132	86	104	24	7	4	88	35.5	50	22	17.5	122	90	129	68	108	26	16	92	168	50	62	74	17.5	56	60	6.5	M8	30	129	4.5
GTM1-250L	107	70	165	215	144	86	110	24	5	4	102	31.5	50	22	17	142	105	126	66	110	20	20	94	183	50	69.5	84.5	17.5	54	70	6.5	M8	35	126	5
GTM1-250M	107	70	165	215	144	103	127	24	5	4	102	31.5	50	22	17	142	105	126	66	110	20	20	94	183	50	69.5	84.5	17.5	54	70	6.5	M8	35	126	5
GTM1-400L	182	116	270	370	234	110	160	43	8	6	134	70	89	65	Φ29	198	144	200	65	125	36	36	169	299	60	92	110	21	123	100	8.5	M12	58	200	7
GTM1-400M	182	116	270	370	234	110	160	43	8	6	134	70	89	65	Φ29	198	144	200	65	125	36	36	169	299	60	92	110	21	123	100	8.5	M12	58	200	7
GTM1-630L	182	116	270	370	234	110	160	43	8	6	134	70	89	65	Φ29	240	174	200	65	125	36	36	169	299	60	92	110	21	123	100	8.5	M12	58	200	7
GTM1-630M	182	116	270	370	234	110	160	43	8	6	134	70	89	65	Φ29	240	174	200	65	125	36	36	169	299	60	92	110	21	123	100	8.5	M12	58	200	7
GTM1-800M	210	140	280	380	243	106	145	33	30	128									128														70	243	7.2
GTM1-1250M	210	140	393			200
GTM1-1600M	210	140	393			200
