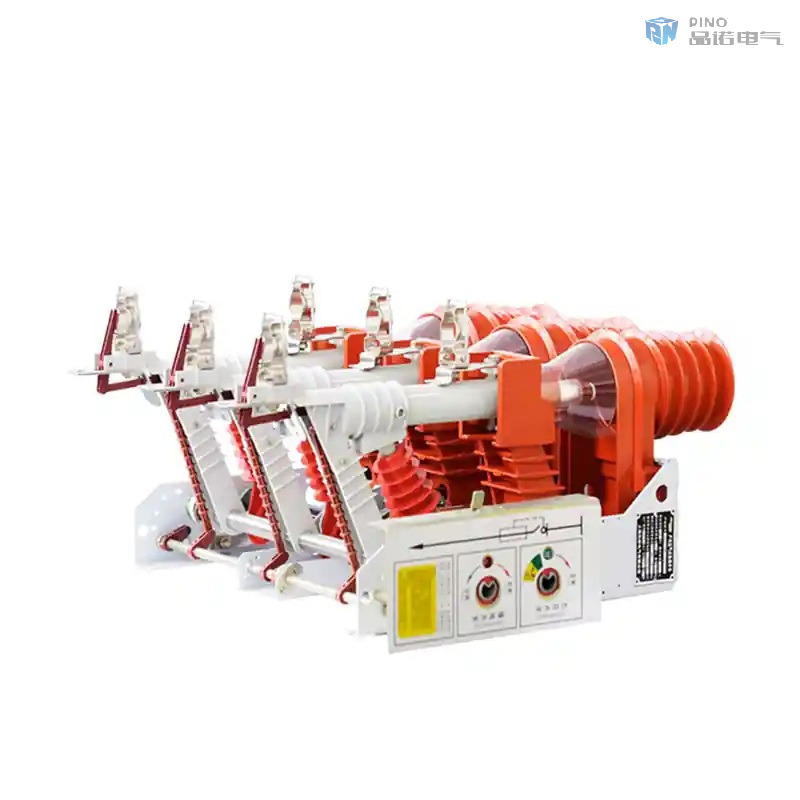

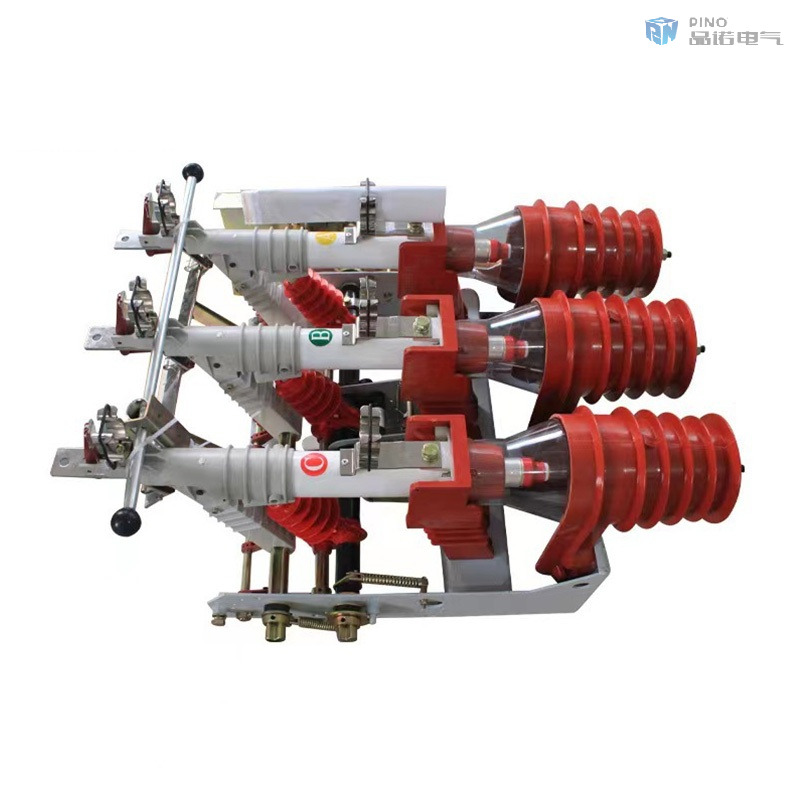

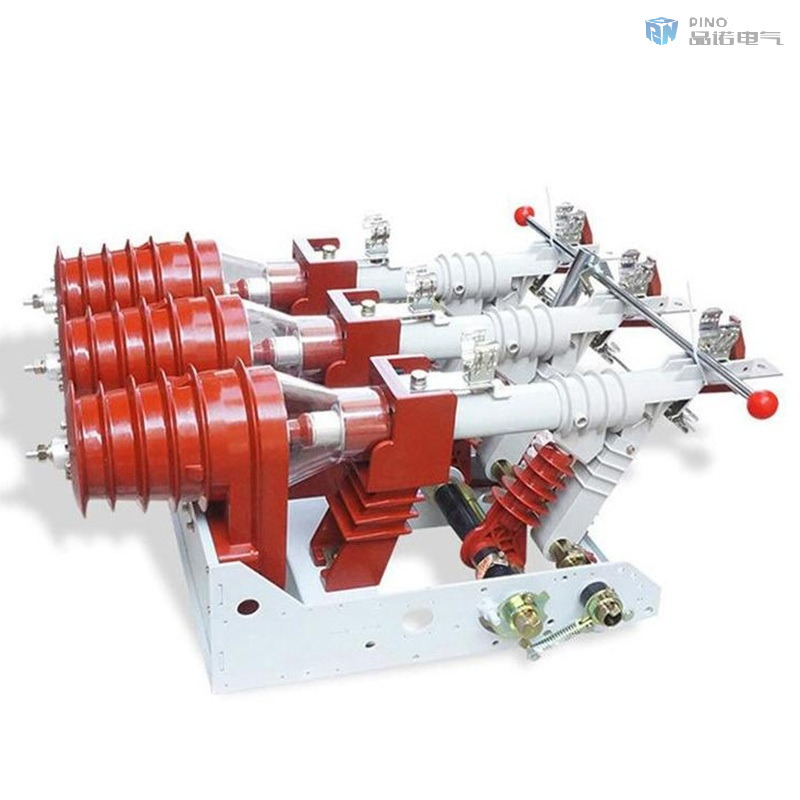

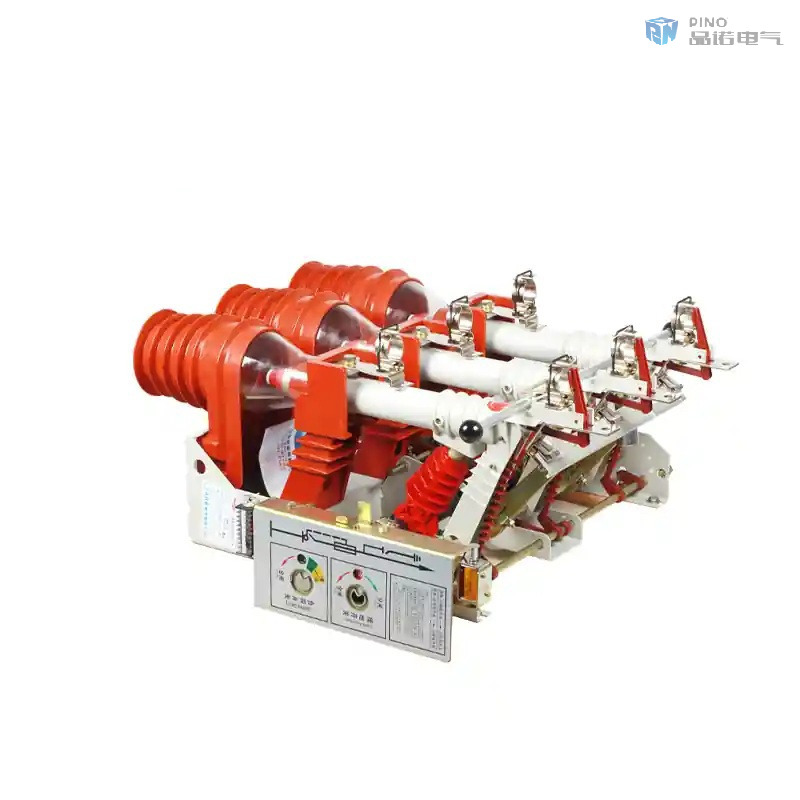

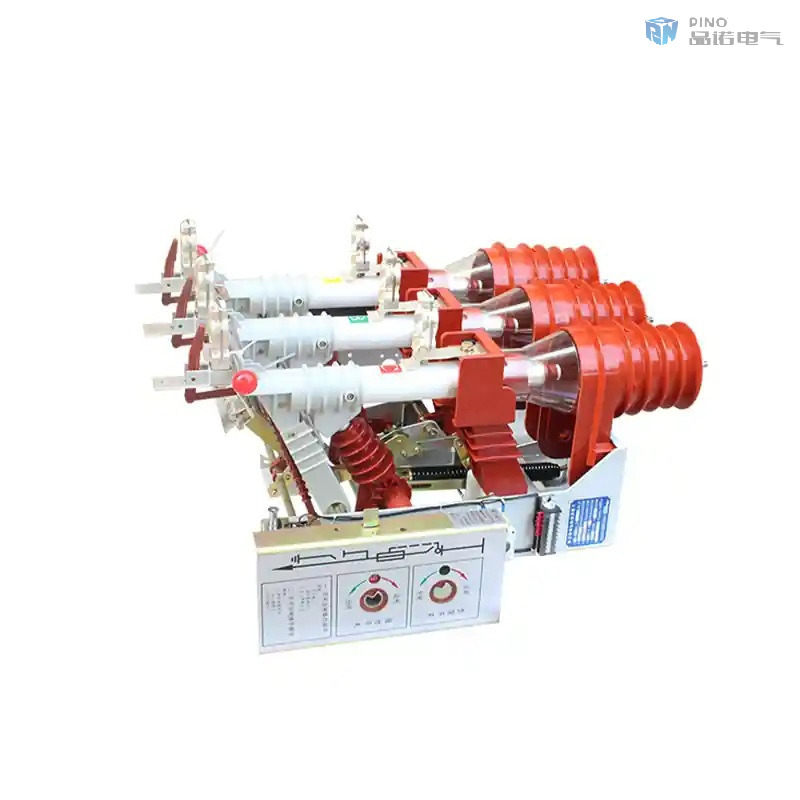

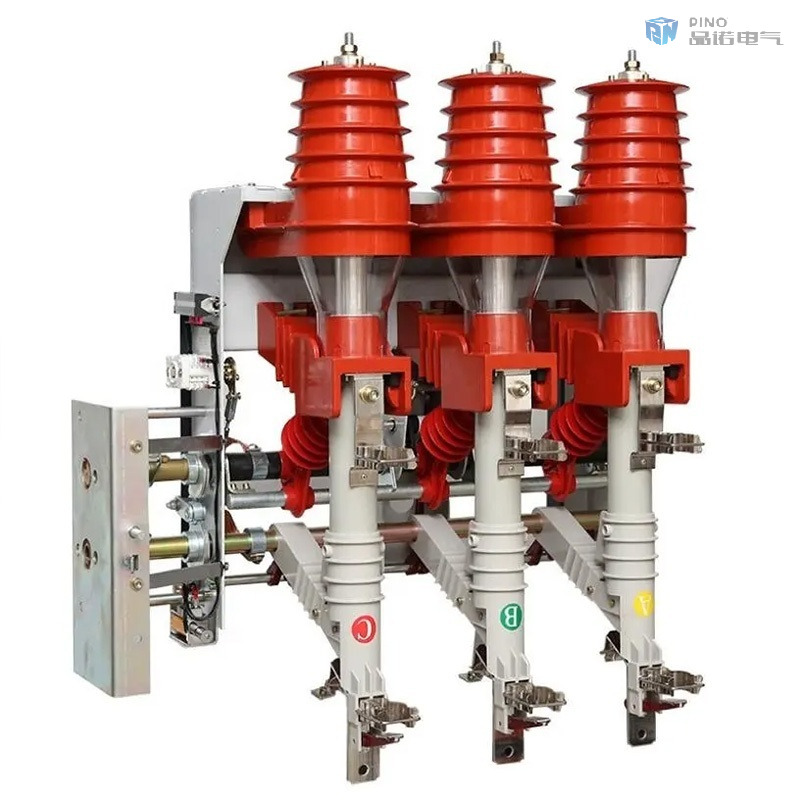

What Is the FKN12-12RD High Voltage Load Break Switch?
The FKN12-12RD is a high voltage load break switch built for 12kV systems with a 50Hz frequency. It’s perfect for turning circuits on or off under normal load conditions—think of it as a trusty gatekeeper for your power flow. Paired with a fuse, it also doubles as a short-circuit protector, making it a versatile piece of equipment for urban and rural power networks. Its compact design and reliable operation make it a favorite in terminal substations and box-type setups.
Why Choose the FKN12-12RD High Voltage Load Break Switch?
So, what’s the big deal with this switch? For starters, it’s all about reliability. The FKN12-12RD can handle load currents, overloads, and even short-circuit currents when teamed up with a fuse. It’s built to last, with a sturdy frame and a spring-loaded mechanism that keeps switching smooth and consistent, no matter how often you use it. Plus, it’s got a sleek, space-saving design that fits right into tight indoor setups—perfect for modern power distribution needs.
Key Features of the FKN12-12RD High Voltage Load Break Switch
This high voltage load break switch isn’t just about getting the job done—it’s about doing it well. Here’s what sets it apart:
Versatile Operation: Handles load currents, closed-loop currents, and transformer charging currents with ease.
Fuse Compatibility: Works seamlessly with high-voltage fuses for short-circuit protection.
Durable Build: Designed for long-term use in tough indoor environments.
Safety First: Features reliable interlocking and a clear disconnect point for secure maintenance.
Technical Specifications of the FKN12-12RD High Voltage Load Break Switch
Let’s get into the nitty-gritty. Below is a detailed breakdown of the FKN12-12RD’s specs—everything you need to know to see if it fits your system.
| Parameter | Value |
| Rated Voltage | 12 kV |
| Rated Frequency | 50 Hz |
| Rated Current | 630 A |
| Rated Short-Circuit Breaking Current (with Fuse) | 31.5 kA |
| Rated Short-Time Withstand Current | 20 kA (4s) |
| Mechanical Life | 2000 operations |
| Operating Mechanism | Spring-operated (Manual or Motorized) |
| Ambient Temperature Range | -25°C to +40°C |
| Altitude Limit | ≤ 1000 m |
| Relative Humidity | Daily Avg. ≤ 95%, Monthly Avg. ≤ 90% |
Where Can You Use the FKN12-12RD High Voltage Load Break Switch?
This switch is a real workhorse, shining in all kinds of setups. You’ll find it in urban power grids, rural substations, and even industrial plants. It’s especially handy for ring network systems and dual-power supply units, where flexibility and safety are non-negotiable. Whether you’re isolating a transformer for maintenance or managing daily power distribution, the FKN12-12RD has your back.
How to Install and Maintain the FKN12-12RD
Setting up the FKN12-12RD is pretty straightforward. It’s designed for vertical installation, and you’ll want to ground the frame and any connected cables properly—no cutting corners there! Before you flip it on, run a few test switches to make sure everything’s moving smoothly. For maintenance, keep it simple: check for wear, clean it up, and test the insulation now and then. Just make sure it’s powered down first—safety’s the name of the game.
Why It’s a Smart Investment
Investing in a high voltage load break switch like the FKN12-12RD isn’t just about keeping the lights on—it’s about doing it efficiently and safely. Its ability to handle tough jobs without breaking the bank makes it a solid pick for anyone looking to upgrade their power system. Plus, with its long lifespan and low upkeep, you’re getting bang for your buck over the long haul.
Final Thoughts on the FKN12-12RD High Voltage Load Break Switch
If you’re in the market for a high voltage load break switch that’s reliable, easy to use, and built to last, the FKN12-12RD is worth a serious look. It’s got the specs to handle modern power demands and the durability to stick around for years. Ready to power up your system? This switch might just be the perfect fit.
