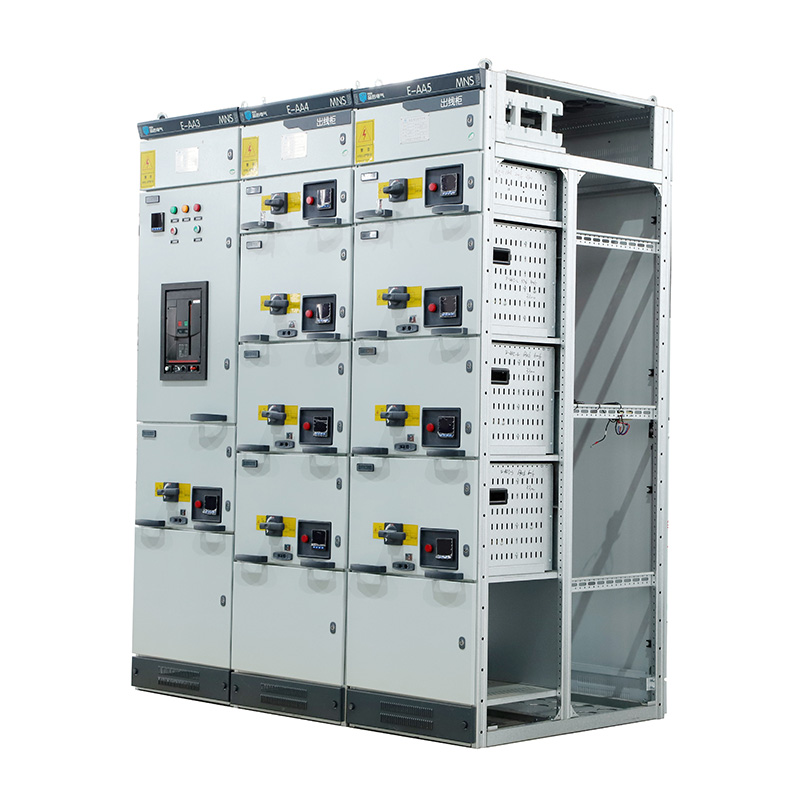

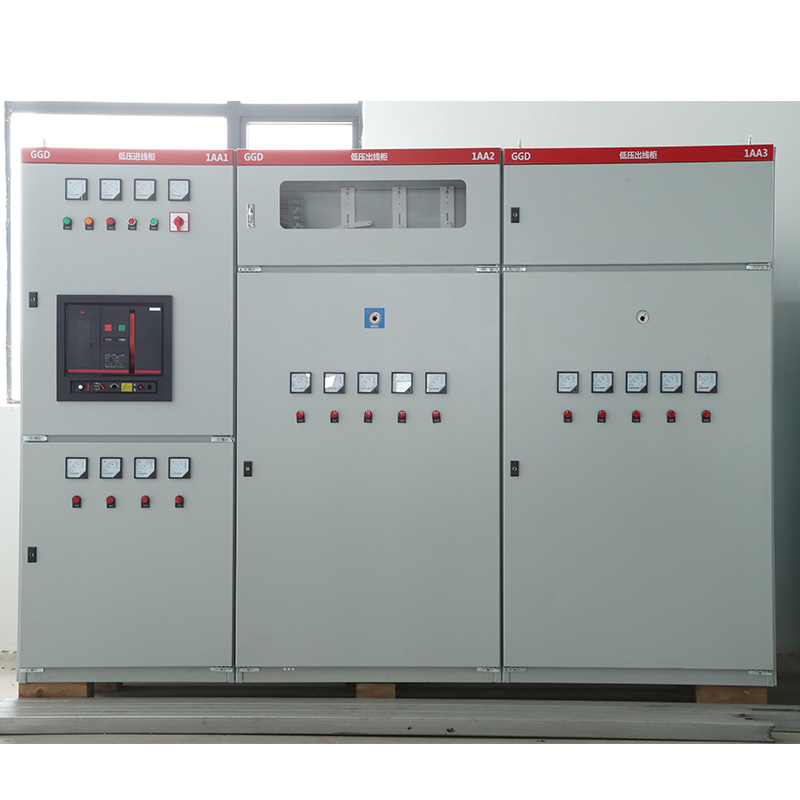

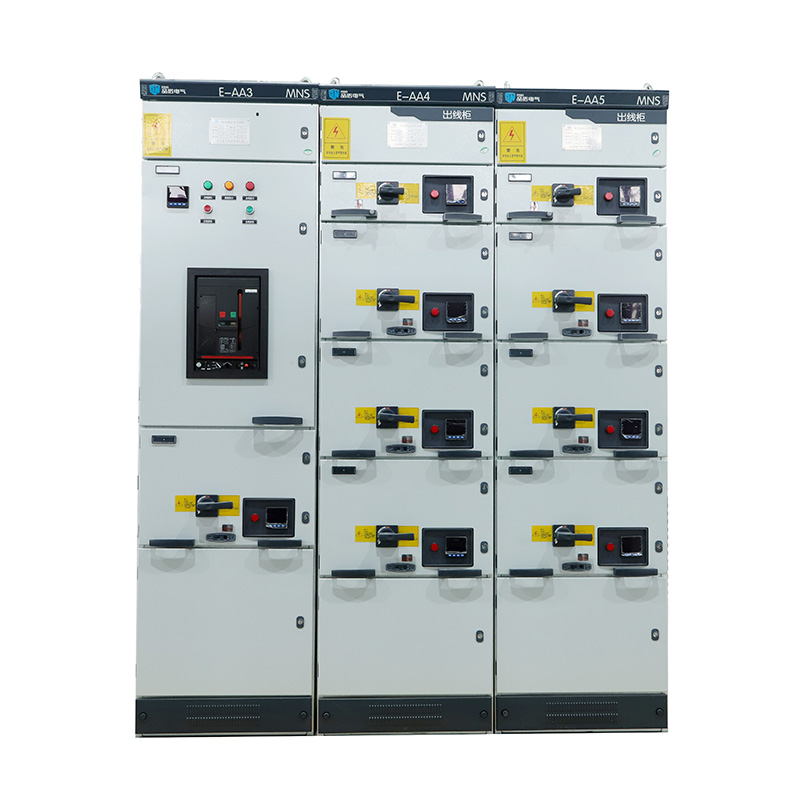

Low voltage switchgear is a key equipment in power distribution systems, mainly used in low-voltage distribution systems with AC 50Hz and rated voltage of 380V and below. It is capable of centralized control, distribution, and protection of electrical energy, and integrates various high-quality electrical components such as circuit breakers, contactors, relays, etc. internally to ensure stable and safe transmission of electricity to various power terminals.
Product Advantages and Features
1. High reliability design: Using internationally renowned electrical components such as Siemens, ABB, etc., the average time between failures exceeds 40000 hours, greatly reducing the probability of equipment failure and ensuring the continuous stability of power distribution. (Keywords: high reliability low-voltage switchgear, well-known brand electrical components)
2. Flexible combination scheme: Adopting a modular design concept, various functional units can be flexibly combined according to different electricity needs, such as incoming units, outgoing units, metering units, etc., to meet diverse distribution requirements. (Keywords: modular low-voltage switchgear, flexible combination functional unit)
3. Excellent protective performance: The cabinet protection level reaches IP54, effectively preventing dust intrusion and water splashing, and can adapt to complex environments such as industrial plants and basements, ensuring stable operation of equipment. (Keywords: high protection level low-voltage switchgear, adaptable to complex environments)
4. Efficient heat dissipation system: With a unique heat dissipation structure design and high-quality heat dissipation materials, the temperature inside the cabinet can be reduced by 10-15 ° C compared to ordinary products, extending the service life of electrical components and improving equipment operating efficiency. (Keywords: efficient heat dissipation low-voltage switchgear, extended component life)
5. Personalized customization service: We understand that the needs of different customers vary greatly, and we provide comprehensive customization services. From cabinet size and color, to the brand, quantity, and layout of internal electrical components, we can tailor them according to the specific requirements of customers, providing you with the most suitable low-voltage switchgear solution for your needs.
Technical Parameter
No. | Name | Unit | Standard Parameter Values |
1 | Rated Operational Voltage | V | 400、380 |
2 | Rated Insulation Voltage | V | 690 |
3 | Rated Current Of The Main Busbar | A | 4000~1600 |
4 | Rated Short-Time Withstand Current Of The Main Busbar | KA | 50＜Icw≤80 |
5 | Rated Current Of Distribution Busbar | A | 1000~400 |
6 | Rated Short-Time Withstand Current Of Distribution Busbar | KA | 30＜Icw≤50 |
7 | Frequency | Hz | 50 |
8 | Degrees Of Protection Provided By Enclosure | IP41 |

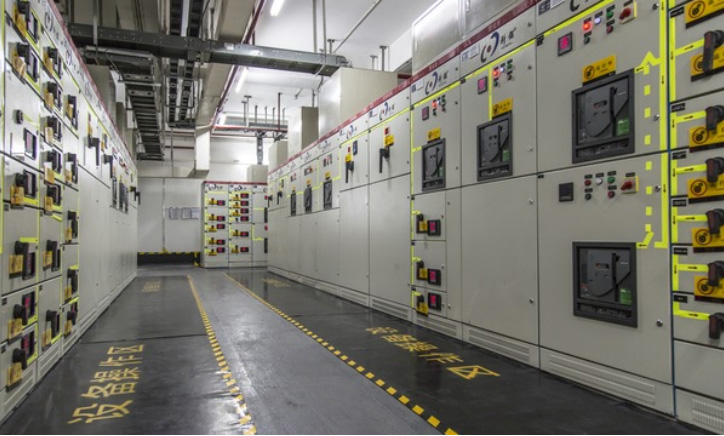

Application Scenarios
1. Residential community: Provide power distribution for residential buildings, ensure stable electricity supply for lighting, household appliances, and other equipment, and meet the daily needs of residents.
2. Commercial complex: used in shopping malls, supermarkets, office buildings and other places to supply power to lighting systems, air conditioning systems, elevators and other equipment, ensuring the normal operation of commercial activities.
3. Industrial plant: Adapt to the electricity needs of various industrial production equipment, ensure the stable operation of production lines, and improve industrial production efficiency.
