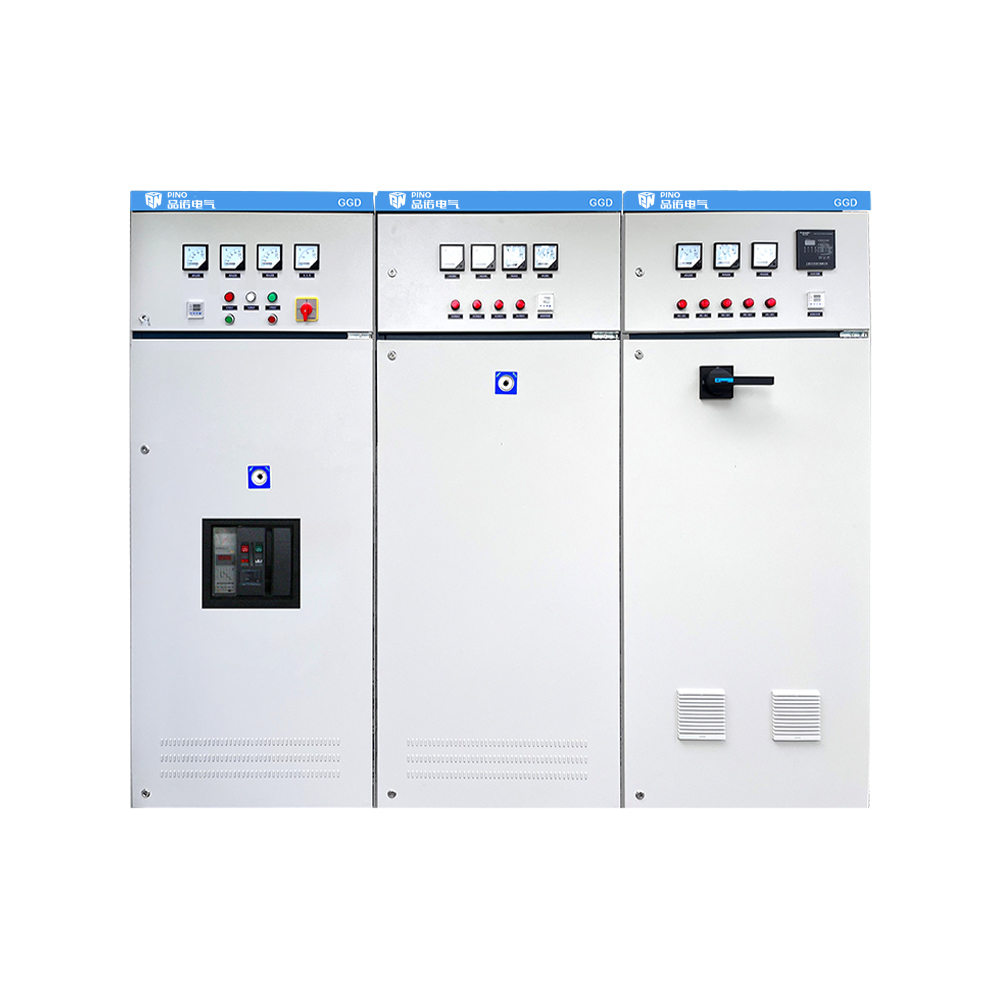

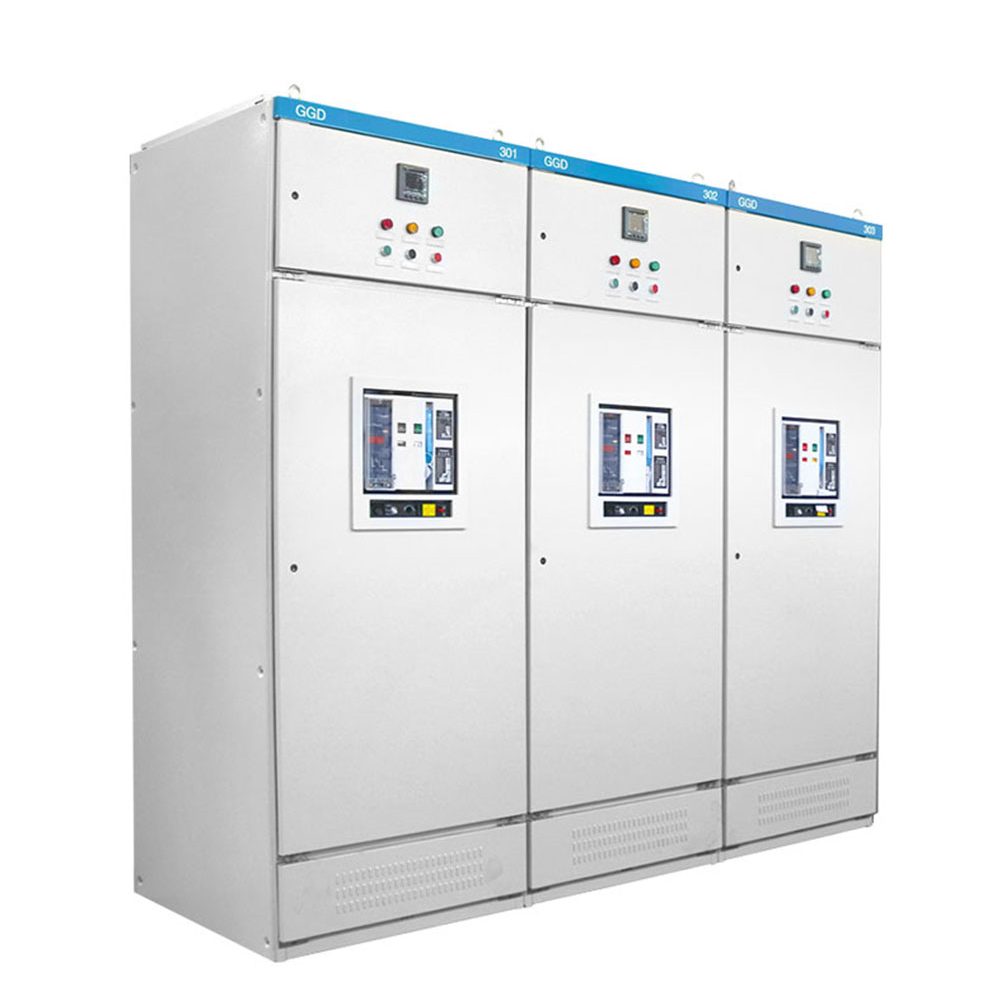

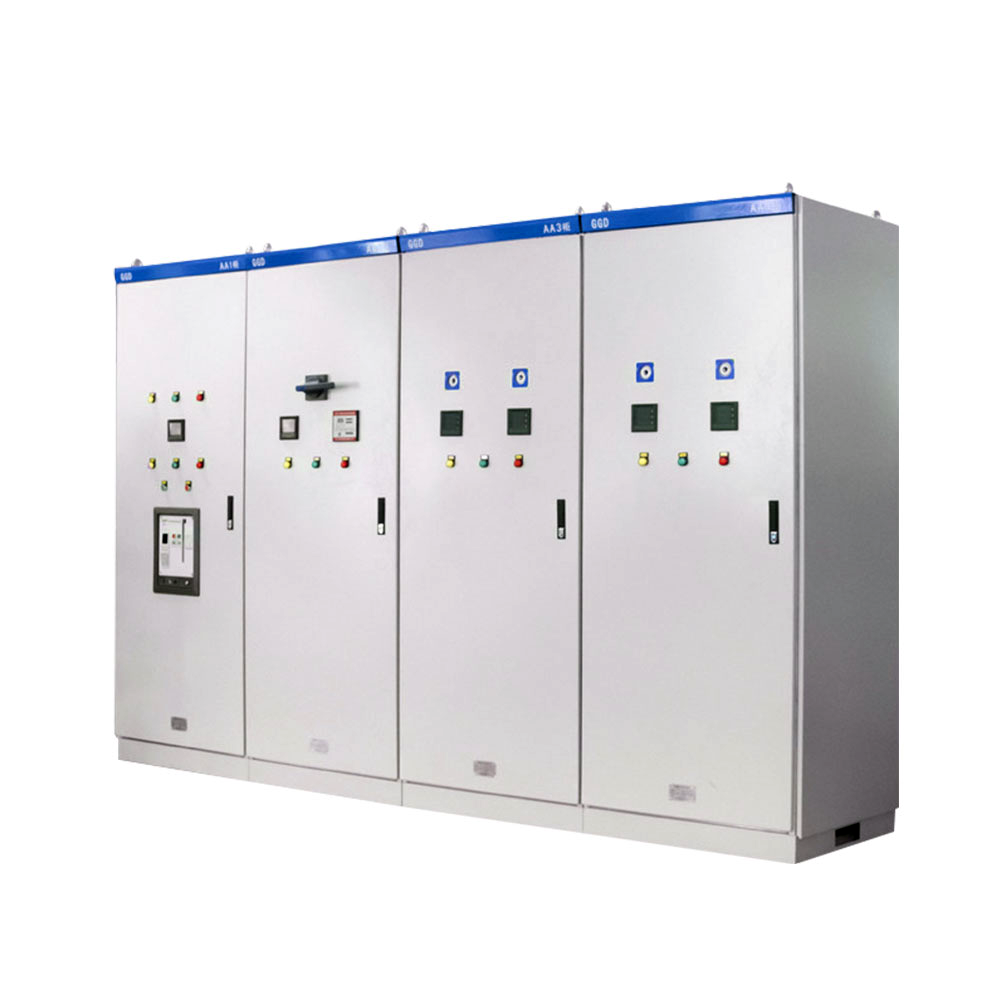

Pino Electric’s GGD AC Low Voltage Complete Fixed Switchgear is a robust, industry-proven power distribution solution engineered specifically for industrial facilities, mining operations, power stations, and substations. Designed to operate seamlessly at AC 50/60Hz and 380V rated voltage, this fixed switchgear supports rated operating currents ranging from 400A to 3150A, making it ideal for medium to large-scale electrical distribution networks. Its primary function is to facilitate the safe transformation, distribution, and control of electrical energy for power supply, lighting, and distribution equipment. Manufactured in strict compliance with IEC 60439 and GB 7251 international and national standards, the GGD switchgear delivers reliable electrical performance, enhanced operational safety, and broad adaptability, making it an indispensable component in modern industrial and civil infrastructure projects. The minimum order quantity is 1 set, suitable for both small retrofit projects and large-scale new construction.
Features a flexible modular construction that allows for customized configurations to meet diverse electrical grid requirements. This design simplifies on-site installation and routine maintenance, significantly reducing equipment downtime and long-term operational costs.
Constructed from high-strength, flame-retardant materials with comprehensive electrical insulation and protective measures. The IP40 degree of protection safeguards internal components from solid foreign objects larger than 1mm and ensures operator safety during all routine operations.
Incorporates a specialized, optimized ventilation system that efficiently dissipates internal heat generated during continuous operation. This maintains all critical components within their safe temperature ranges, extending the overall service life of the switchgear by up to 30% and minimizing the risk of overheating failures.
Delivers industry-leading breaking capacity and exceptional thermal stability, with ratings up to 3150A rated current and 50kA short circuit breaking current. This ensures reliable performance even under heavy load conditions and meets the demanding requirements of most low-voltage distribution networks.
All operational functions can be performed safely with the cabinet doors fully closed, eliminating exposure to live electrical components. This intuitive design enhances both operational convenience and workplace safety for maintenance personnel.
Adaptable to a wide range of indoor environments and application scenarios, from heavy industrial manufacturing plants to commercial buildings and utility substations.
We offer full tailored solutions, including custom cabinet sizes, circuit configurations, component selection, and additional accessories, to address your unique project requirements.
Every unit undergoes 12-point comprehensive testing at our ISO 9001-certified manufacturing facility, with all critical components sourced from reputable global suppliers to ensure consistent quality and long-term reliability.
Model number | Rated voltage(V) | Rated current(A) | Rated short circuit breaking current (kA) | Rated short-time withstand current (1s)(kA) | Rated peak withstand current (kA) | |
GGD1 | 380 | A | 1000 | 15 | 15 | 30 |
GGD1 | B | 600(630) | 15 | 15 | 30 | |
GGD1 | C | 400 | 15 | 15 | 30 | |
GGD2 | A | 1500(1600) | 30 | 30 | 63 | |
GGD2 | B | 1000 | 30 | 30 | 63 | |
GGD2 | C | 600 | 30 | 30 | 63 | |
GGD3 | A | 3150 | 50 | 50 | 105 | |
GGD3 | B | 2500 | 50 | 50 | 105 | |
GGD3 | C | 2000 | 50 | 50 | 105 | |
Shape and Size (mm)
Product code | A(mm) | B(mm) | C(mm) | D(mm) |
GGD06 | 600 | 600 | 450 | 556 |
GGD06A | 600 | 800 | 450 | 756 |
GGD08 | 800 | 600 | 650 | 556 |
GGD08A | 800 | 800 | 650 | 756 |
GGD10 | 1000 | 600 | 850 | 556 |
GGD10A | 1000 | 800 | 850 | 756 |
GGD12 | 1200 | 800 | 1050 | 756 |
GGD1 Main Circuit Scheme
The GGD fixed switchgear is designed for indoor installation under the following standard environmental conditions:
Ambient air temperature: -5°C to +40°C, with a 24-hour average not exceeding +35°C
Altitude: ≤ 2000m above sea level
Relative humidity: ≤ 50% at +40°C, up to 90% at +20°C (occasional condensation is acceptable)
Installation inclination: ≤ 5° from the vertical plane
No violent vibration, impact, or corrosive atmospheres
For projects with harsh environmental conditions (such as high humidity, dust, or corrosive gases), our engineering team can provide customized protective solutions to ensure reliable long-term operation.
Our GGD low voltage switchgear is trusted by industrial and utility clients worldwide for a wide range of applications:
Industrial manufacturing facilities and processing plants
Mining and mineral processing operations
Power generation stations and distribution substations
Commercial buildings and civil infrastructure projects
Power distribution and lighting control systems
With over 15 years of specialized manufacturing experience, Pino Electric has delivered more than 8,000 GGD switchgear units to clients across 35+ countries, earning a reputation for consistent quality and reliable performance.
As a professional manufacturer of low voltage electrical equipment, Pino Electric combines advanced automated manufacturing technology, rigorous ISO 9001 quality control, and dedicated technical support to deliver exceptional value to our clients.
We offer competitive factory-direct pricing with no middleman markup, fast lead times (as short as 15 days for standard models), and strict quality control throughout the entire production process.
Our team provides end-to-end support from initial technical consultation to post-installation maintenance. We offer 24/7 technical assistance, detailed product datasheets, and customized training for your maintenance staff.
Our GGD switchgear supports rated operating currents from 400A up to 3150A, with three standard models (GGD1, GGD2, GGD3) to cover different load requirements.
The GGD fixed switchgear has an IP40 degree of protection, providing defense against solid foreign objects larger than 1mm and ensuring operator safety during routine operations.
Yes, we offer full customization options including cabinet dimensions, circuit configurations, component selection, and additional accessories to meet your specific project needs.
The minimum order quantity is 1 set, making it suitable for both small retrofit projects and large-scale new construction.
