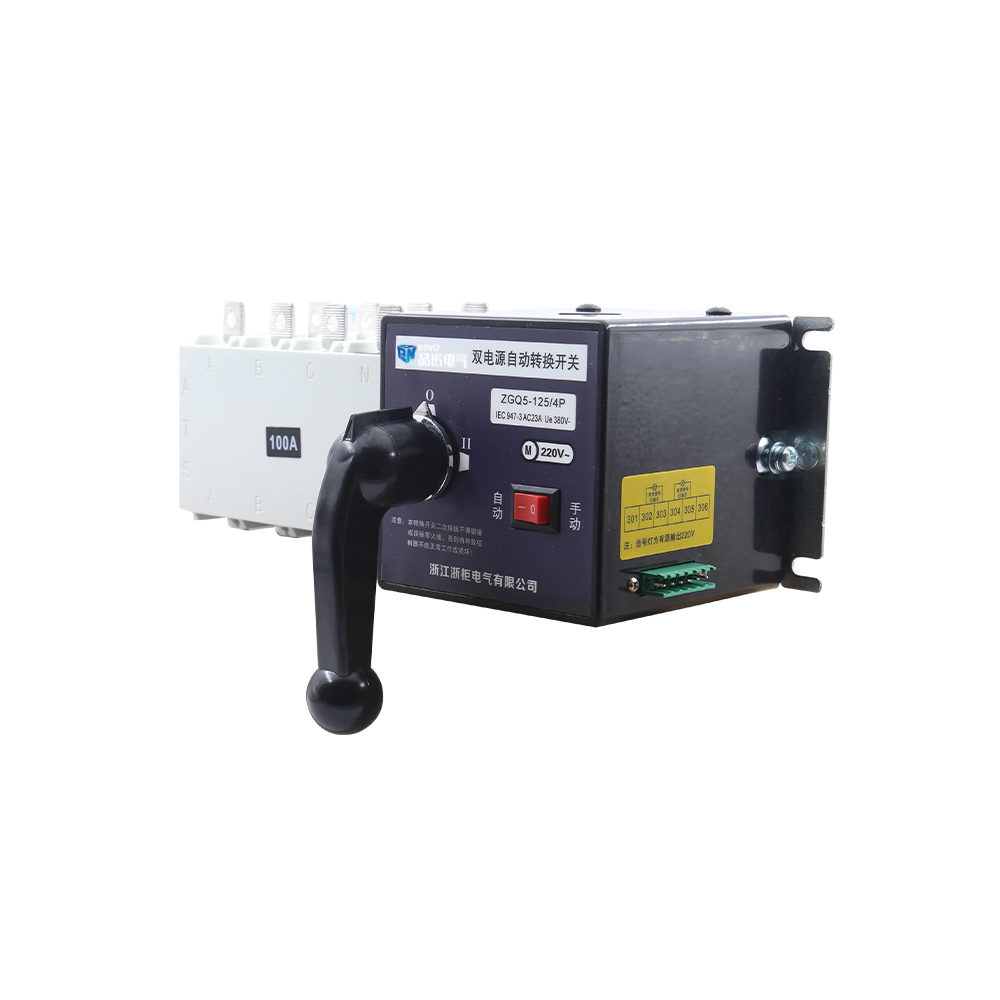

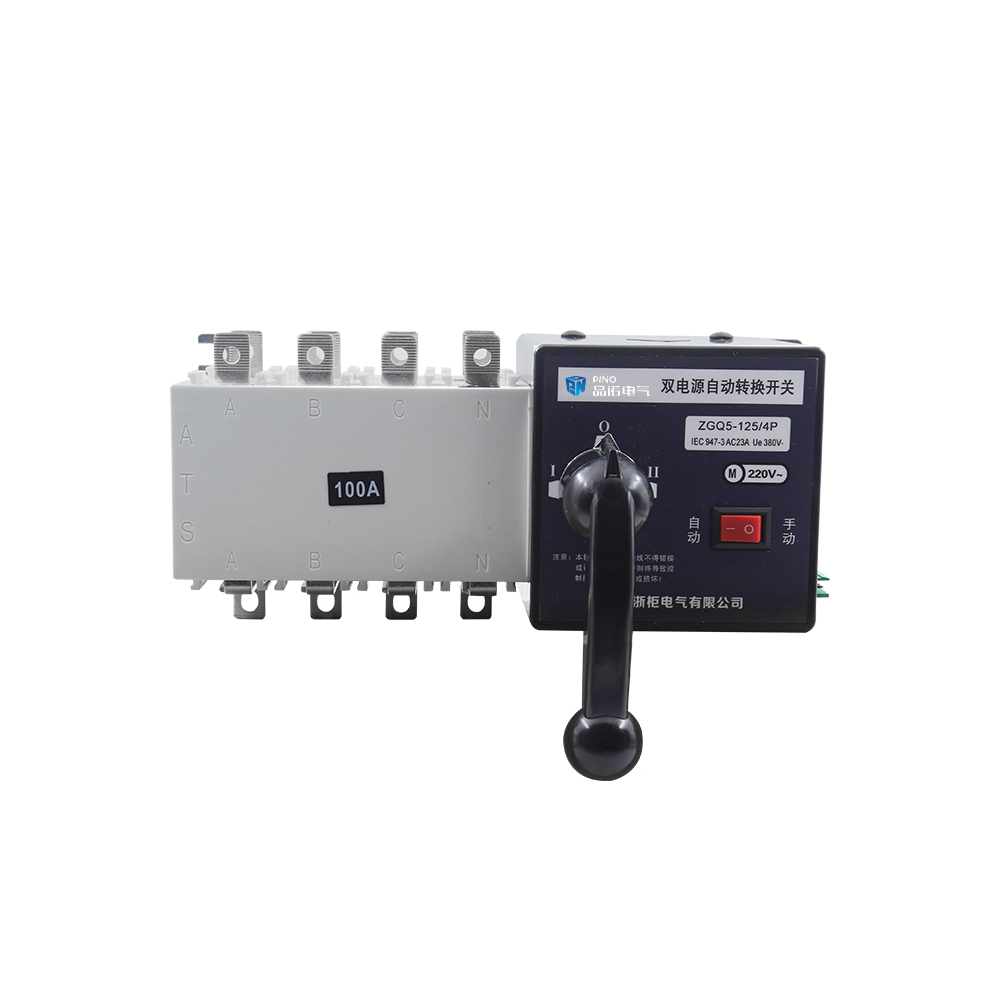

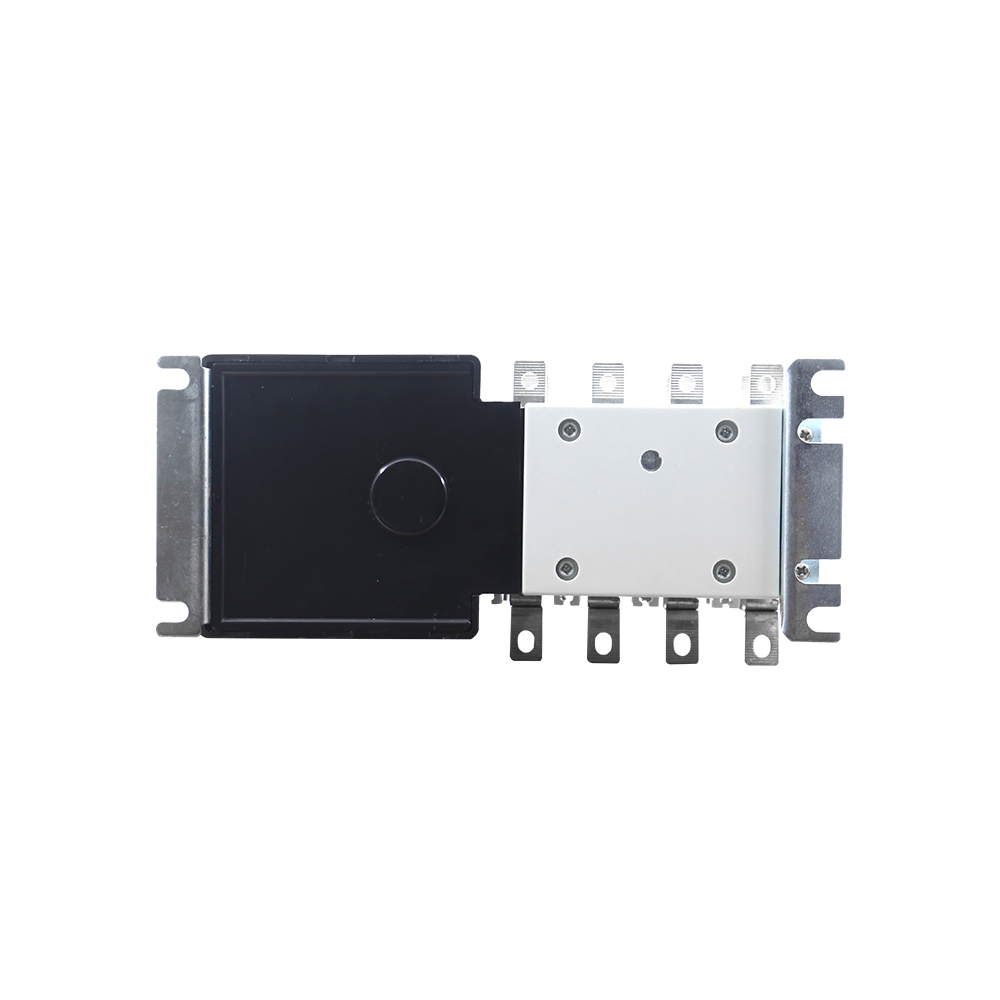

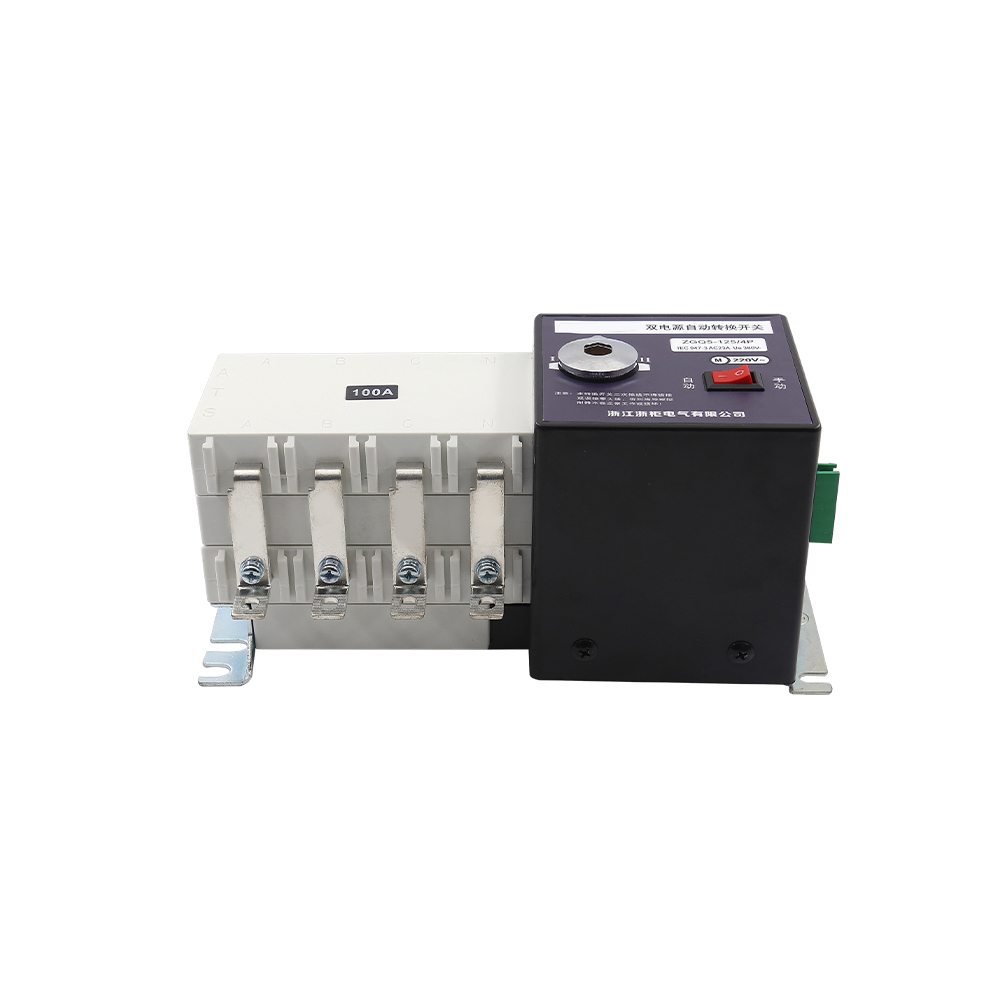

ZGQ5 Dual Power Automatic Transfer Switch

Model:ZGQ5  Brand:Pino Electric  Rated Voltage:400v  Rated Current:20A/1600A  Phase:Four  MOQ:1pcs

Overview

The ZGQ5 Automatic Transfer Switch (ATS) integrates switch and logic control for seamless electromechanical integration without an extra controller. It supports automatic, remote, and manual operations with voltage and frequency detection, plus electrical and mechanical interlocks. Ideal for AC 50Hz, 380V, and DC 220V systems, catering to currents from 16 to 3200A, it's perfect for critical power switching in various environments. Its durable design ensures reliable power supply continuity.

Product Features

• Automatic Monitoring and Swift Transition: Equipped with sophisticated monitoring capabilities, the ZGQ5 vigilantly tracks the voltage and frequency of power sources in real-time. Should any irregularity in the primary power source be detected, it immediately transitions to the backup source without delay, significantly reducing any potential downtime.

• Versatile Control Options: This switch supports various control modes including automatic, manual, and remote operations, providing flexibility to accommodate different operational requirements and scenarios.

• Safety with Electrical and Mechanical Interlocks: It features comprehensive electrical and mechanical interlocking mechanisms to ensure safety during transitions and prevent mishaps due to operational errors.

• Communication Interface for Smart Management: The inclusion of a communication interface facilitates connectivity with intelligent systems for remote monitoring and management, enhancing the overall smart capabilities of the power management system.

• Wide Range of Applications: Beyond serving critical infrastructures like hospitals, data centers, and manufacturing facilities, the ZGQ5 is also compatible with community power supplies, USV inverters, solar energy systems, etc., showcasing its versatility.

• Designed for Reliability: In anticipation of potential phase failures, the ZGQ5 is capable of quickly isolating the issue and switching to a reliable power source, thus ensuring consistent and dependable power supply.

• User-Friendly Operation and Maintenance: With an intuitive interface and clear status indicators, the system is designed for simplicity in operation. Its modular construction also simplifies maintenance and facilitates efficient troubleshooting.

Technical Data

Switch Structure Description

• Electric key lock: control switch internal control line power supply, when the electric lock is opened, the switch can achieve automatic, operational  control, strong "0" operation: when the electric lock is closed, the switch can only be manually operated.

• Operating handle: When manually operating with the operating handle, the electric lock must be closed first.

• Mechanism padlock: special maintenance, that is, first use the operating handle to make the switch in the "0 "stop position, and then pick up the  padlock mechanism and padlock, can be repaired (pick up the padlock will cut off the internal control power supply of the switch, the switch can  not be automatic, and can not achieve manual). Indicator:

• Indicates the working status position of the switch (I, 0, II).

Outline dimensional drawing
