Model:JXF Brand:Pino Electric Rated Voltage:230V/400V/500V Rated Current:400A Rated Frequency:50Hz/60Hz Phase:Three
Overview

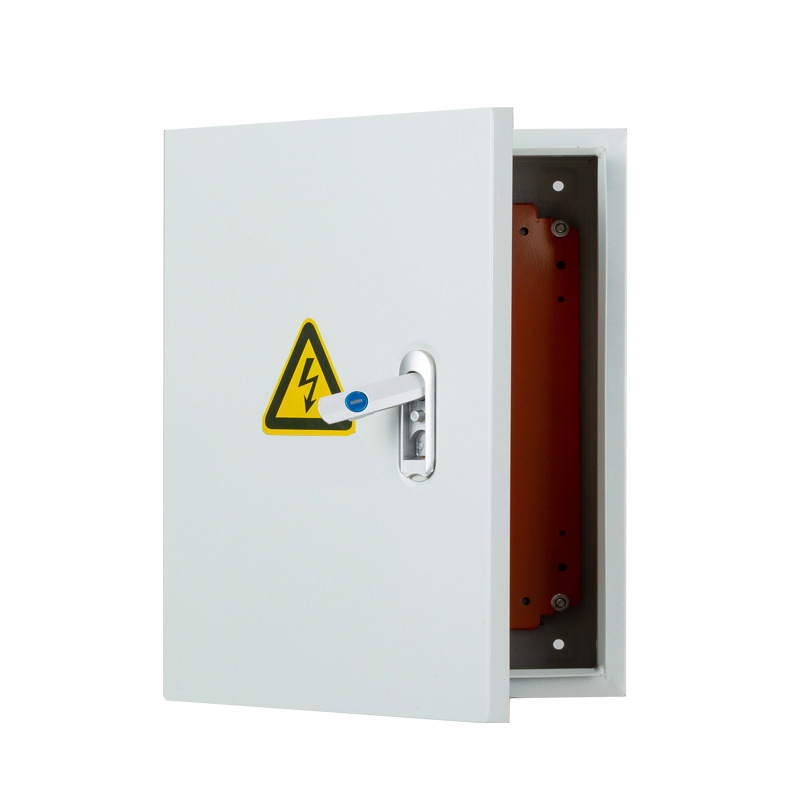

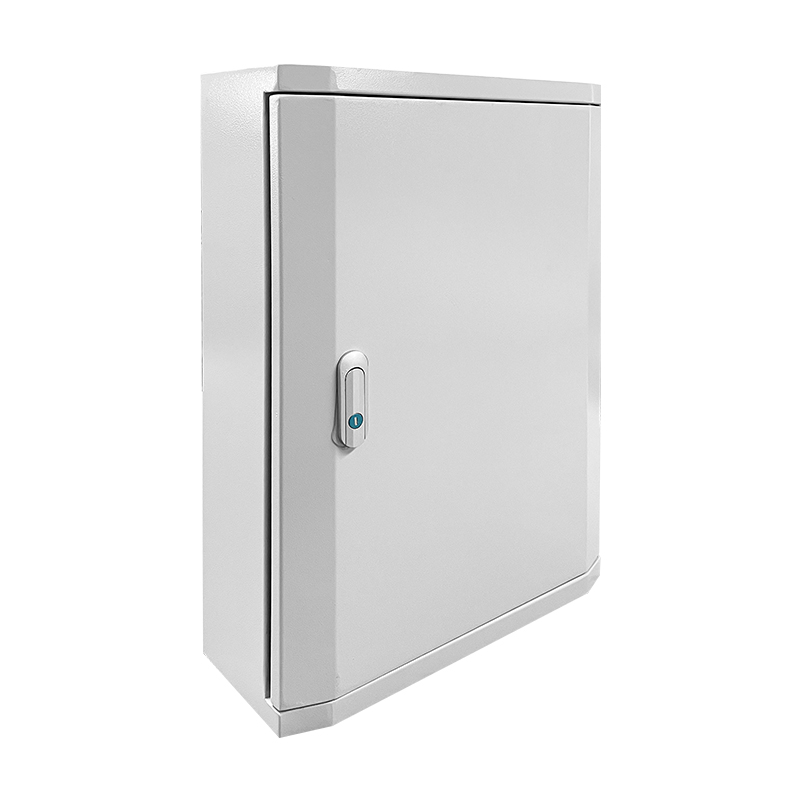

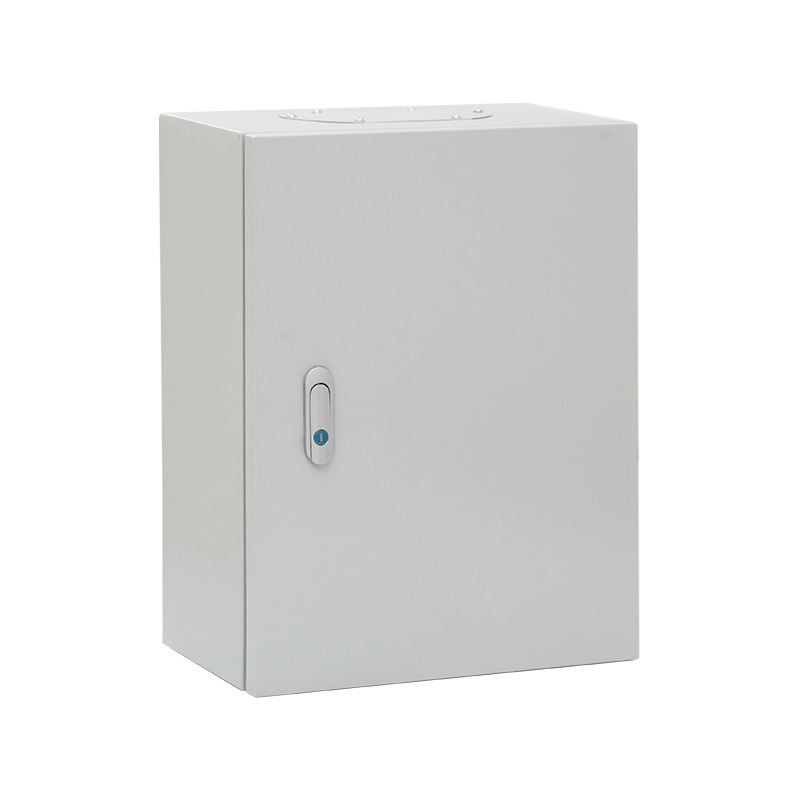

The JXF small distribution box is a widely used device in low-voltage power systems, designed for the distribution and control of electrical energy. Suitable for various buildings, industrial, and commercial settings, it enhances the reliability and safety of power systems. The product features a compact design for easy installation, a well-organized internal structure for convenient maintenance, and meets the electrical needs of different users.
Product Features
Compact Structure
Modular design for a compact size and easy installation, saving space.
Well-organized internal structure facilitates cable connections and maintenance, reducing construction time and costs.
High Safety
Equipped with high-quality circuit breakers and protective devices to prevent overloads and short circuits, ensuring safe circuit operation.
High protection level (e.g., IP54) effectively prevents dust and water ingress, suitable for various harsh environments.
Premium Materials
Made of high-quality cold-rolled steel with electrostatic powder coating, offering excellent corrosion resistance and extended service life.
All electrical components are sourced from well-known brands, ensuring long-term stable operation and reducing maintenance frequency.
Flexible Configuration
Can be configured with various electrical components such as residual current devices and air switches according to user requirements.
Multiple entry and exit options adapt to different installation environments and wiring requirements, enhancing system flexibility.
Intelligent Control
Supports intelligent monitoring and management systems, enabling remote monitoring and fault diagnosis.
Optional smart meters for precise energy measurement and management, helping users optimize energy usage.
Easy Maintenance
Transparent door design allows users to view internal operations in real-time, quickly identifying and addressing issues.
Modular design facilitates easy disassembly and replacement, simplifying maintenance and reducing downtime.
Eco-friendly and Energy-saving
Meets national energy-saving and environmental protection standards, reducing energy consumption and environmental impact.
Made of eco-friendly materials, aligning with modern green environmental protection concepts.
Wide Application
Suitable for residential, office buildings, shopping malls, factories, and various other settings.
Used for the distribution, control, and protection of electrical energy in low-voltage distribution systems, enhancing system reliability and safety.
| Type | Specifications [H*W*D(mm)] | Type | Specifications [H*W*D(mm)] |
| JXF1-2525/14 | 250*250*140 | JXF1-6040/23 | 600*400*230 |
| JXF1-3025/14 | 300*350*140 | JXF1-6050/14 | 600*500*140 |
| JXF1-3025/18 | 300*350*180 | JXF1-6050/20 | 600*500*200 |
| JXF1-3030/14 | 300*300*140 | JXF1-6050/23 | 600*500*230 |
| JXF1-3030/20 | 300*300*200 | JXF1-7050/16 | 700*500*160 |
| JXF1-4030/14 | 400*300*140 | JXF1-7050/20 | 700*500*200 |
| JXF1-4030/20 | 400*300*200 | JXF1-7050/25 | 700*500*250 |
| JXF1-5040/14 | 500*400*140 | JXF1-8060/20 | 800*600*200 |
| JXF1-5040/20 | 500*400*200 | JXF1-8060/25 | 800*600*250 |
| JXF1-5040/23 | 500*400*230 | JXF1-10080/20 | 1000*800*200 |
| JXF1-6040/14 | 600*400*140 | JXF1-10080/25 | 1000*800*250 |
| JXF1-6040/20 | 600*400*200 | JXF1-10080/30 | 1000*800*300 |
Notes: customization for special specification and requirement is available
