Why Three Phase Oil Transformers Are Essential for Modern Utility Substations

Three phase oil transformers are very important in today's power systems. They help substations give out power that is safe, steady, and works well for both sending and sharing electricity. Engineers like these transformers because they control voltage, handle lots of power, and keep the power steady. Three phase oil transformer designs cut down on energy loss and make things work better with some main features:

• They keep power flowing all the time, so they work better and lose less energy than single-phase units.

• Sharing the load over three phases stops overloads and cuts down on wasted materials.

• Using laminated silicon steel cores lowers core losses and makes magnets work better.

• Keeping voltage steady and lowering harmonic distortion makes power quality better.

Operators pick these transformers because they can handle a lot, are safe, and save money while meeting tough utility rules today.

Key Takeaways

• Three phase oil transformers give steady and safe power. They balance loads across three wires. This helps lower energy loss. It also stops overloads from happening.

• They change voltage levels to send electricity far away. They deliver power safely to homes and businesses. Oil cools and protects the inside parts.

• These transformers help the grid stay stable. They handle big power loads. They adjust to changing needs. This helps keep the power system working well.

• Regular maintenance and oil checks help transformers last longer. This makes sure they work well for many years. It also saves money over time.

• Modern designs have smart monitoring and eco-friendly features. This makes transformers work better and save space. It also helps the environment.

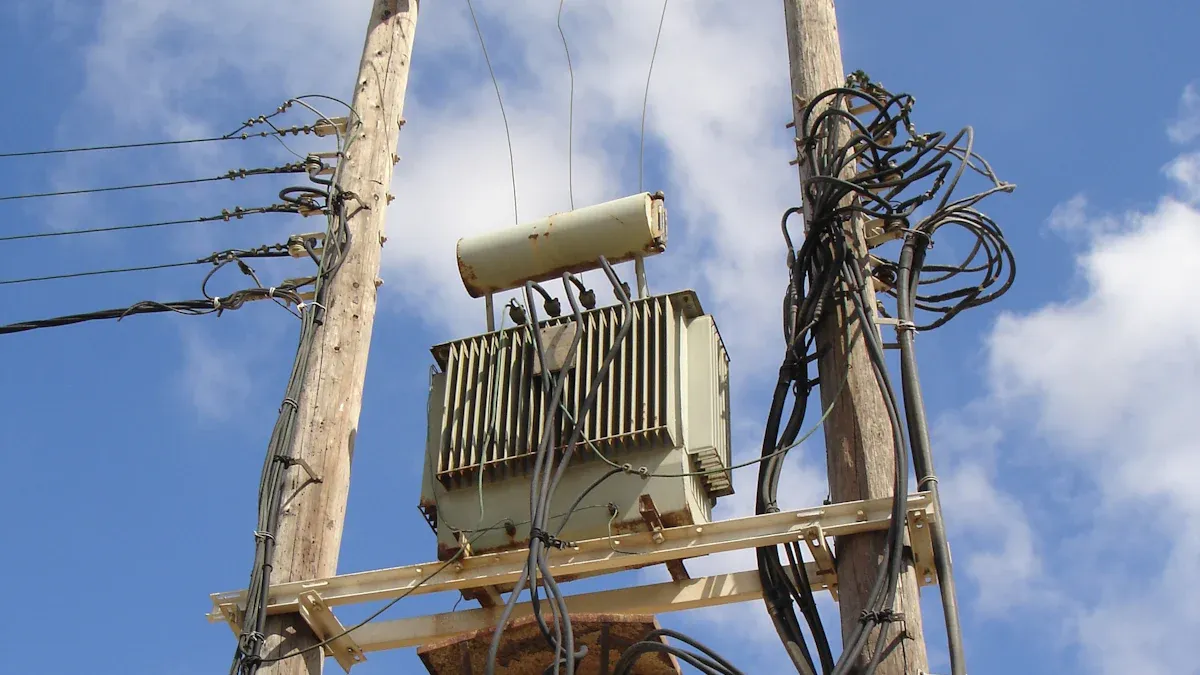

Power Functions of Three Phase Oil Transformers

Voltage Step-Up and Step-Down

Three phase oil transformers help change voltage in power networks. They make voltage higher for sending electricity far. They make voltage lower for sharing electricity nearby. This works by changing the number of turns in the windings. Step-up transformers have more turns in the secondary winding, so voltage goes up. Step-down transformers have fewer turns in the secondary winding, so voltage goes down. These transformers only work with AC. They use changing magnetic fields to move electricity.

Operators use three-phase oil transformer units for many voltages. Some common primary voltages are 3.3 kV, 6.6 kV, 11 kV, 33 kV, and up to 230 kV for big power transformers. Secondary voltages are often between 400 V and 433 V. Some units work with medium voltage up to 46 kV and can handle up to 66 MVA. The oil inside helps cool and insulate the transformer. This makes it work better and last longer.

Note: Modern transformers work very well. They save energy by being more than 95% efficient.

Key Functions of Three Phase Oil Transformers in Utility Substations:

• Lower high transmission voltages to medium levels for use

• Keep the system steady and protect against faults

• Connect transmission and distribution grids together

• Handle lots of power for big utility systems

• Give electrical isolation

• Help deliver balanced three-phase power needed for utility work

Load Balancing and Grid Stability

Three phase oil transformers help keep loads balanced in substations. Their strong coils and good cooling systems help them work well in tough places. These transformers handle changes in load at places like schools and factories. Substations with these transformers change voltage, manage loads, and send power where it is needed. These jobs help keep the grid working right.

Operators use three-phase transformers to match supply and demand. These transformers give steady voltage and handle big loads. This helps keep the grid stable. If substations do not have these transformers, poor load balancing can happen. This can cause voltage problems, hot equipment, and bad power quality.

Consequences of Poor Load Balancing:

• Voltage problems from uneven loads on each phase

• Motors and transformers can get too hot

• Bad power quality can cause flickering and other issues

• More losses in lines and transformers from unbalanced currents

• Less output and overload ability from the transformer

• Zero sequence currents can heat steel parts and wear out insulation faster

• Unsafe operation from voltage imbalance and neutral point drift

• Motors work less well because of negative sequence voltages

Tip: Substations help control the grid. They manage loads and move power during outages. Three phase oil transformers help with these important jobs.

Energy Loss Reduction

Three phase oil transformers help cut down energy losses in power networks. Operators pick these transformers because they work well and have smart designs. Using good silicon steel sheets and better core shapes lowers losses. Sealed oil tanks keep out dirt and water, which helps insulation and makes them last longer. Oil inside cools and insulates, so the transformer works quietly and efficiently.

Design Features That Minimize Energy Losses:

• Good silicon steel cores lower magnetic losses

• Smart winding designs balance loads and lower harmonics

• Good cooling systems like oil immersion and corrugated tanks help get rid of heat

• Vacuum nitrogen annealing helps with internal stresses

• Windings use copper with no oxygen

• Sealed oil tanks stop insulation from getting worse

Even small improvements in efficiency save a lot of energy and lower emissions in power networks. Oil-immersed transformers cool better and get rid of heat faster. This lets them handle more power and work longer under heavy loads. These transformers last longer and are easier to take care of, which makes them reliable. Distribution transformers with oil immersion are best for substations and big factories that need lots of power.

Operators look at different transformers for how well and how long they work. Oil-immersed transformers use oil for cooling and insulation. This helps them get rid of heat and work well under high loads and heat. Dry-type transformers use air or resin for cooling. They are less efficient and have lower power ratings. In substations, oil-immersed transformers are picked for high efficiency and reliability. Dry-type transformers are used where safety and the environment matter most.

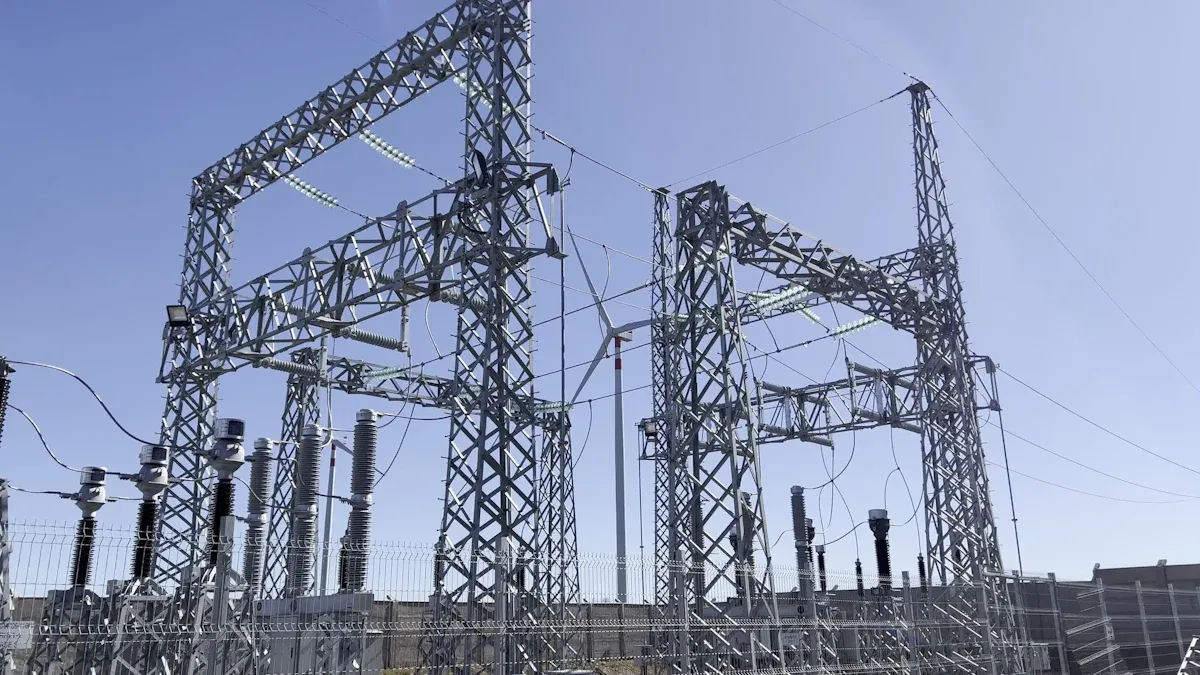

Safety and Reliability in Substation Transformers

Oil Cooling and Insulation

Oil-immersed transformer units use oil to cool and insulate. The oil takes heat from the core and windings. It moves this heat to radiators and heat exchangers. This keeps the transformer at a safe temperature. Operators watch oil temperature and quality to find problems early. They do regular checks, oil tests, and cleaning to stop cooling system overload. Sludge can block oil flow and make hot spots. Cooling problems like blocked radiators or leaks raise heat risks. By controlling heat, the transformer's insulation stays strong. This lowers equipment failure and helps it last longer.

Key Cooling and Insulation Benefits:

• Oil gives electrical insulation, stopping arcing and short circuits.

• Oil spreads heat, so overheating is less likely.

• Oil filled transformer ratings let them handle high voltage and loads.

• Oil filled distribution transformer units are quiet because of better insulation.

• Oil filled power transformer designs carry heavy loads in substations.

Operators use oil-immersed transformer units for good cooling and insulation. They check oil temperature and quality to keep transformers safe.

System Protection Features

Substation transformers have many protection features. These features help stop faults and keep the system safe. Operators depend on these devices to find problems early and stop damage.

Operators use these features to keep transformers safe and working well. Real-time checks help change loads and plan repairs.

Compliance with Standards

Transformers in substations must follow strict safety and reliability rules. These rules make sure transformers work safely and last long.

Operators pick transformers that meet these rules. UL certification makes sure transformers are safe during overload or short circuit. Using approved transformers skips extra tests and meets reliability needs.

Operators use best ways for oil handling and environmental safety. They use systems to catch leaks, watch for spills, and recycle oil to lower risks.

Efficiency and Cost Benefits of Three-Phase Transformers

Space and Cost Savings

Three phase oil transformer units help utility companies save space and money. They use oil for cooling and insulation. This lets them work at higher ratings than air-cooled types. Operators can fix them after failures, so they do not need to buy new substation transformers often. These units fit in smaller spaces because they combine three phases into one. This design means fewer incoming lines and crossbars. It makes installation easier in tight places. It also lowers the cost of materials and labor.

Operators pick three-phase transformers because they are small and cost less to install.

Cost Savings and Space Optimization Table

High Capacity and Performance

Three-phase transformers carry bigger loads than single-phase units. They have a three-section iron core, which saves materials and works better. Operators use them for factories and places that need lots of power. They support higher ratings, so they send more power through three wires. This design makes them reliable and helps them work well in utility substations.

Performance Metrics

• Higher energy efficiency means lower energy bills.

• Less heat comes out, so less cooling is needed.

• Strong design makes them safe and tough.

• They support big networks and factory loads.

Operators trust three phase oil transformer units for high capacity and steady work. They do well in hard places and keep power on all the time.

Maintenance and Longevity

Operators make transformers last longer by doing regular maintenance. They can last 40 to 80 years, depending on insulation and how much they are used. Checking oil, watching for moisture, and changing silica gel stops insulation from breaking down. Operators look at, test, and fix transformers to find problems early. They use special programs to plan checks and oil tests.

Maintenance Advantages

• Yearly checks and oil tests every 3-5 years.

• Keeping track of maintenance helps them work better.

• Cleaning, oiling, and checking their condition makes them last longer.

• Fixing leaks and worn insulation fast stops failures.

• Handling and getting rid of oil the right way keeps workers safe.

Operators help transformers last longer by using expert care and regular checks. This keeps power systems working well and saves money over time.

Adapting to Modern Grid Demands

Integration with Renewables

Modern grids use transformers to connect solar and wind power. These energy sources change how much power they make. This can cause the grid to go up and down. Operators need transformers that can handle these changes. They must keep the power steady when things change fast. New transformer designs use less energy and are better for the environment. They have smart systems that watch and check data all the time. IoT lets operators see problems early and fix them before they get worse. Dry-type transformers are good for places where fires might happen. They are also safe for sensitive areas. Governments make rules and give money to help build smart grids. This helps companies use new transformers. People worry about the environment, oil spills, and how hard it is to add new things. These worries make companies invent better solutions.

Operators have problems when adding solar and wind power. Harmonic distortion, heat, DC bias, core saturation, and too much load need special care. Good cooling and the right size help transformers work safely. Strong windings and insulation keep them safe.

Scalability and Flexibility

Transformers help substations grow and serve more people. They lower high voltages so power can go to homes and businesses. Load tap changers help change voltage when loads go up or down. Operators can pick different setups for backup and smart grid use. These transformers work for houses and stores, so they fit many needs. Upgrading to new transformers keeps voltage steady in busy places.

• Lowers high voltages for local use.

• Keeps voltage steady as substations grow.

• Load tap changers help manage power.

• Works for homes and businesses.

• Different setups make them flexible.

• Upgrades keep voltage steady in growing areas.

Choosing the Right Three-Phase Oil Transformer

Picking the right transformer takes careful planning. Operators choose a kVA rating that matches the load. They check voltage ratings and how wires connect. Voltage taps help change settings for different needs. Impedance affects how faults and voltage changes happen. Insulation temperature ratings help with heat. Sound levels must be okay for the site. Harmonics and using more than one transformer affect how well things work.

1. Pick kVA rating for the load.

2. Check voltage ratings and how to connect.

3. Use voltage taps to change settings.

4. Look at impedance values.

5. Make sure insulation can handle heat.

6. Check sound levels for the site.

7. Think about what happens if something fails.

8. Check harmonics.

9. Plan for using more than one transformer.

Operators also look at load needs, voltage, phase setup, frequency, efficiency, cooling, weather, rules, size, and cost. If they forget about power factor or peak loads, transformers can be too small. This can cause overheating and waste energy. Picking the right transformer keeps power steady and makes it last longer.

Conclusion

Three phase oil transformers give safe and efficient power. They can change voltage up or down. They help balance loads and lower energy loss. Operators use them for steady power in many places. These places include factories, stores, and renewable energy sites. Doing regular checks helps transformers last longer. New trends show smart transformers will help grids work better. Smaller designs will save space. Eco-friendly oils will help the environment.

Operators need to plan for transformers. This helps keep power strong and reliable.

FAQ

What makes three-phase transformers better for power distribution networks?

They spread loads over three wires. This helps stop overloads. They can carry more power. They make power use better. They help keep voltage steady.

How does an oil-immersed transformer improve safety in substations?

What types of transformers work best for utility substations?

Three-phase oil transformer units carry big loads. Oil filled power transformer designs work with high voltage. Oil filled distribution transformer units are good for local use.

How long can substation transformers last?

They can work for 40 to 80 years. Regular checks help them last longer. Good oil keeps insulation strong.

What should operators check before choosing a transformer?
