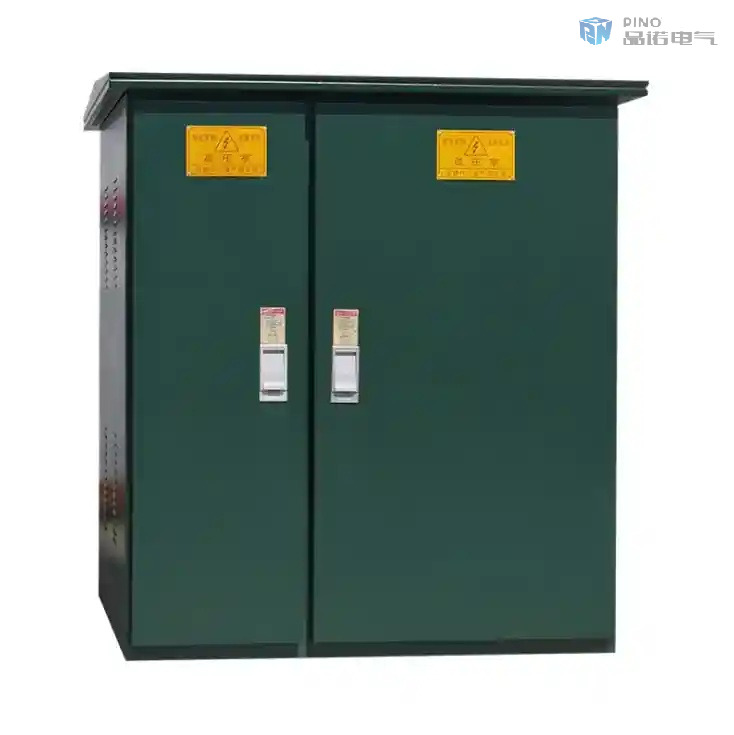

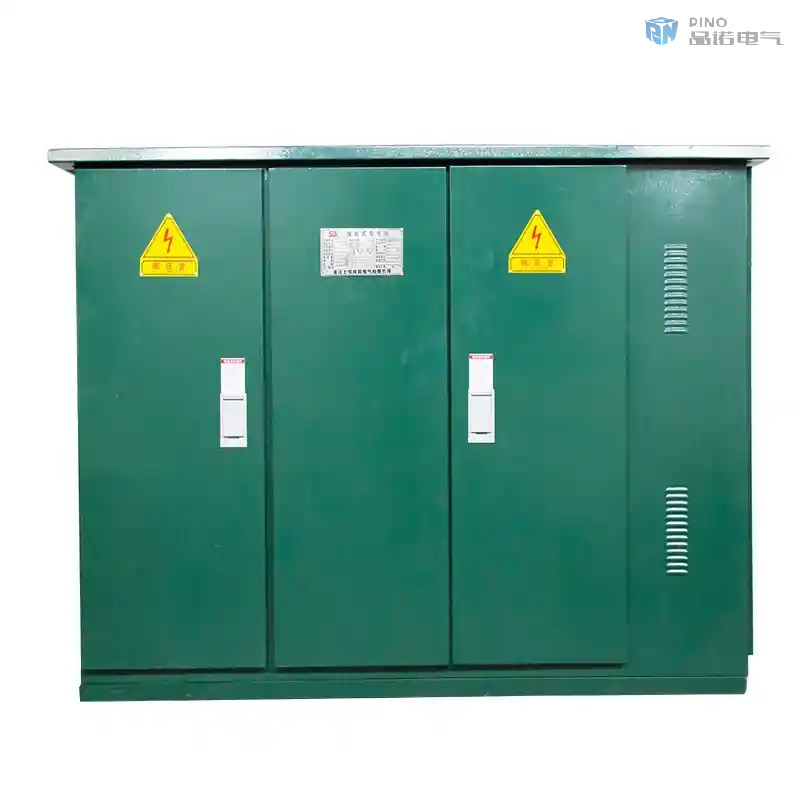

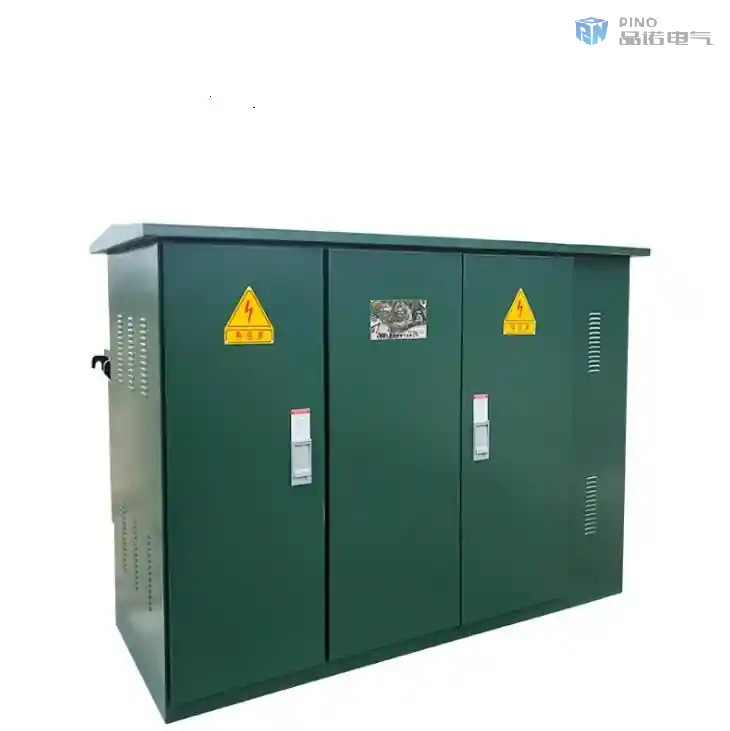

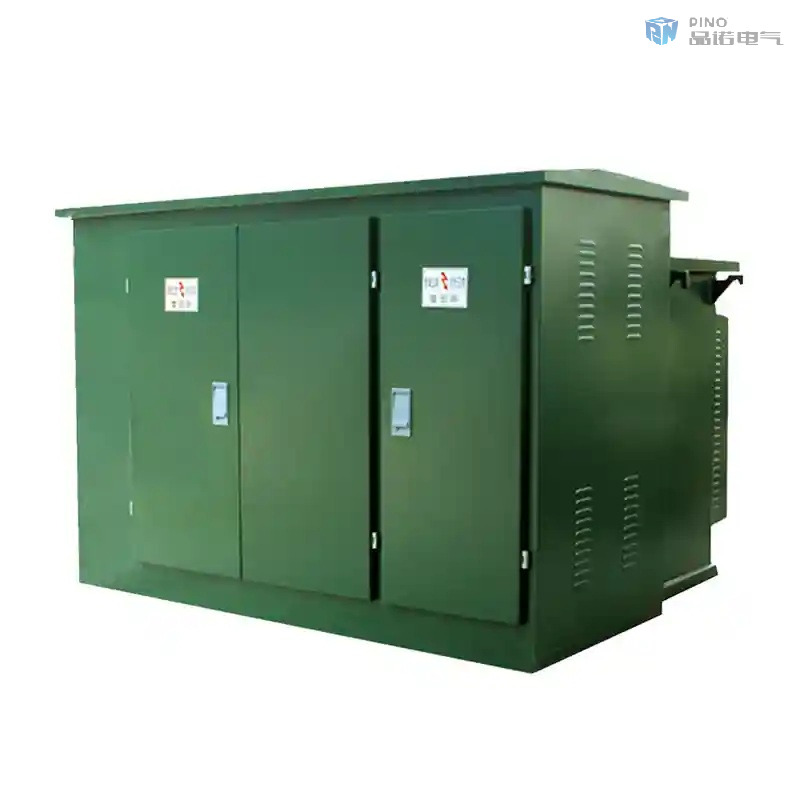

American Type Substation ZGS Compact Substation

The ZGS Series American Type Prefabricated Substation is an advanced, compact, and cost-effective power distribution solution designed for urban and rural power distribution networks. Manufactured by Shenheng Power Equipment Co., Ltd., this substation integrates high-voltage control, protection, power transformation, and distribution into a single unit.

This prefabricated Compact Substation guide features an oil-immersed transformer, where the high-voltage load switch and fuse are installed directly inside the transformer oil, reducing external components and enhancing safety and efficiency. Its compact design and high performance make it ideal for power plants, industrial areas, commercial buildings, and urban infrastructure projects.

Model:
ZGS
Brand:
Pino Electric Technology
Code:
PN- ZGS

Availability:

Quantity:



Inquire Add to Basket

‌High-Voltage Integrated Substation Substation outdoor substation Compact Substation Custom Substation Apartment Substation Electric Substation Prefabricated Substation Substation Factory OEM Substation

Product Description

Key Features

Compact Structure – The ZGS substation occupies 1/3 to 1/5 of the space required by a conventional European-style substation of the same capacity.
Fully Sealed and Insulated – Eliminates the need for insulation clearance, ensuring personnel safety.
Flexible High-Voltage Connection – Can be used in both looped network and terminal configurations for enhanced reliability.
High-Performance Transformer – Features low loss, low noise, high overload capacity, strong impact resistance, and excellent short-circuit resistance.
Multiple Cable Connection Options – Supports both 200A elbow connectors and 600A T-type fixed cable connectors, with optional ZnO lightning protection.

Technical Specifications

Parameter	Specification
Model	ZGS
Form	All-Packaged Type
Operation Voltage	High Voltage
Size	1 Unit
Application Range	Power Plants, Urban & Rural Power Distribution
Shell Material	Stainless Steel
Shell Protection Grade	IP43
Brand	CHSH
Ambient Temperature	-35°C to +40°C
Altitude	No More Than 1000m
Rated Capacity	50-1600kVA
Noise Level	≤50dB
Certificates	CE / ISO Certified
Key Features	Compact, Cost-Effective, High Flexibility, Low Maintenance
Frequency	50Hz / 60Hz
Rated Voltage	Up to 35kV
OEM Service	Available
Transport Package	Iron Case / Wooden Case
HS Code	8537209000
Production Capacity	100 Pieces / Week

Advantages of ZGS Prefabricated Substation

1. Space-Saving & Compact Design

The ZGS series substation is significantly smaller compared to traditional European-style substations.
Ideal for urban environments where space constraints are a concern.

2. Fully Sealed & Insulated for Safety

The entire structure is fully insulated and sealed, ensuring no insulation clearance is required.
Enhances personnel safety by preventing direct contact with live electrical components.

3. Versatile High-Voltage Wiring

Supports both looped network and terminal configurations, providing greater reliability and flexibility in power distribution.

4. High-Performance Transformer

Low Loss & High Efficiency – Reduces energy wastage and ensures cost-effective operation.
Low Noise & Low Temperature Rise – Ideal for noise-sensitive environments like commercial buildings and residential areas.
High Overload Capacity – Allows for stable operation even under heavy electrical loads.
Strong Short-Circuit Resistance – Enhances the transformer’s ability to handle electrical faults.

5. Dual Cable Connection Options

200A elbow connector (compatible with load plug, acts as an insulation switch).
600A T-type fixed cable connector, supports optional ZnO lightning arresters for enhanced protection.

Environmental Conditions

The ZGS Prefabricated Substation is built to withstand various environmental conditions, ensuring long-term durability and reliability.

Environmental Factor	Specification
Ambient Temperature	-25°C to +40°C
Altitude	≤1000m
Relative Humidity (Daily Avg.)	≤95%
Relative Humidity (Monthly Avg.)	≤90%
Water Vapor Pressure (Daily)	≤2.2 kPa
Water Vapor Pressure (Monthly)	≤1.8 kPa
Seismic Resistance	≤8 Magnitude
Maximum Wind Speed	≤35m/s
Installation Requirements	No fire, explosion hazards, or chemical corrosion

Applications of ZGS American Type Substation

The ZGS series compact substation is widely used in various power distribution systems due to its small footprint, high flexibility, and ease of installation.

Common Application Scenarios

Urban Power Distribution – Ideal for residential areas, shopping malls, hospitals, airports, and railway stations.
Industrial Power Systems – Suitable for factories, manufacturing plants, and industrial parks.
Renewable Energy Integration – Used in solar farms and wind energy substations to efficiently step up or step down voltages.
Infrastructure Projects – Applied in metro stations, highways, tunnels, and underground power networks.
Oil & Gas Sector – Used in drilling platforms and refineries requiring a reliable power source.

Customization Options

We can custom-manufacture ZGS substations according to customer requirements:

Custom Voltage Levels (Up to 35kV)
Transformer Capacity (From 50kVA to 1600kVA)
Different Cable Connection Types
Optional Lightning Protection Devices
Tailored Housing Materials – Stainless Steel, Composite Non-Metal, Aluminum Alloy

Our engineering team can design and fabricate solutions tailored to meet specific project demands.
