Transformer oil does much more than fill a tank. Without it, an oil-filled transformer cannot operate safely or manage heat effectively. The oil insulates energized components and carries heat away from the windings and core. These functions help prevent electrical faults and overheating. However, moisture, contamination, and aging can weaken its performance. Poor oil condition may reduce reliability and shorten transformer service life. So, why is transformer oil so important, and what happens when it deteriorates? Understanding its role helps operators protect equipment and avoid costly failures. The following sections explain its insulating and cooling functions, common deterioration risks, essential oil tests, and practical maintenance methods.
Electrical insulation is one of the most important functions of transformer oil. Inside an oil-filled transformer, different components operate at different electrical potentials. The insulating liquid helps prevent unwanted electrical discharge between them.
Transformer oil has high dielectric strength when properly processed and maintained. This property allows it to withstand electrical stress without conducting significant current.
The oil fills spaces around windings, connections, and other internal components. It creates an insulating barrier between energized parts and grounded structures. Transformer oil also works alongside solid insulation materials, including cellulose-based paper. Together, these materials form the transformer's internal insulation system.
Their combined performance matters because electrical stress occurs throughout normal operation. If insulation becomes weak, electrical discharges may develop inside the equipment. These faults can damage nearby materials and eventually cause transformer failure. Good oil quality therefore supports electrical safety and dependable power distribution.
Water and contamination can seriously affect the insulating properties of transformer oil. Even small amounts of moisture may become problematic under certain operating conditions.
Moisture can exist in dissolved form or as separate water droplets. Dissolved moisture is particularly difficult to identify through visual inspection. Suspended particles also create problems inside the insulation system. Metal particles, fibers, and other contaminants may increase the risk of electrical breakdown.
For example, moisture levels may increase after seals begin leaking. The transformer might continue operating without obvious external symptoms. However, its insulation margin may already be decreasing. Regular testing helps identify these changes before serious damage occurs. Operators should assess moisture together with other oil condition measurements.
Transformer oil also serves as a heat transfer medium. This function prevents excessive temperature buildup around critical internal components. An oil-filled transformer generates heat through electrical and magnetic losses. Without adequate cooling, this heat would accumulate inside the equipment.
Heat develops mainly within transformer windings and the magnetic core. Winding resistance produces heat as electrical current passes through the conductors. Additional losses occur within the core during magnetic operation. Transformer oil absorbs heat from these components and carries it toward cooling surfaces. In many designs, this process relies on natural convection.
As oil becomes warmer, its density decreases, and it rises. Cooler oil moves downward to replace the warmer liquid. This continuous movement transfers heat away from internal components. The tank walls or radiators then release heat into the surrounding air. Larger transformers may use additional cooling equipment to improve heat removal. Fans and pumps can support cooling where the design requires them.
However, cooling performance depends on more than oil circulation alone. Oil condition, radiator cleanliness, ambient temperature, and loading also influence operating temperatures.
Excessive heat creates serious risks for transformer insulation. High temperatures accelerate the aging of materials surrounding the windings. Cellulose insulation is particularly sensitive to prolonged thermal stress. As it deteriorates, its mechanical strength gradually decreases.
This damage may eventually reduce the transformer's ability to withstand electrical faults. Replacing degraded solid insulation is also difficult and expensive. High operating temperatures can increase winding resistance and related electrical losses. However, transformer oil does not directly eliminate these losses.
Instead, it removes heat generated during normal operation. Effective cooling helps maintain temperatures within the equipment's design limits. Operators should investigate persistent overheating rather than simply reducing the symptoms. Overloading, poor ventilation, or restricted oil circulation may require corrective action.
Transformer oil gradually changes as it experiences heat and electrical stress. These changes may affect its insulation performance and cooling ability. The deterioration rate depends on operating conditions and oil chemistry. Poor maintenance and environmental exposure can accelerate the process.
Heat is a major factor in transformer oil deterioration. Prolonged exposure to elevated temperatures can accelerate chemical reactions within the liquid. Oxygen also contributes to the oxidation of mineral insulating oil. This process can produce acidic compounds and other degradation products.
Over time, severe oxidation may lead to sludge formation. These deposits can accumulate on internal surfaces and reduce cooling effectiveness. Moisture introduces another concern for the insulation system. It may enter through damaged seals or unsuitable maintenance procedures.
Water can also form through the aging of cellulose insulation. Therefore, moisture problems do not always indicate external leakage. Sealed transformer designs help reduce exposure to environmental contaminants. However, they cannot completely prevent internal aging processes.
Oil deterioration becomes dangerous when its protective functions weaken. Reduced dielectric performance can increase the likelihood of electrical discharge. Sludge deposits may also interfere with heat transfer. Restricted cooling can create higher operating temperatures around critical components.
These conditions may reinforce each other over time. Additional heat accelerates deterioration, while degraded oil makes cooling less effective. Consider a transformer operating under consistently high loads. Its oil may gradually oxidize as temperatures remain elevated. Without testing, the developing problem could remain unnoticed.
Eventually, the equipment may experience insulation damage or unexpected shutdowns. Repairs can become expensive when internal components are affected. Early detection helps operators avoid more serious consequences. Tracking oil condition is usually more practical than waiting for visible damage.
Transformer oil must maintain suitable electrical, chemical, and physical properties. These characteristics determine how effectively it performs its protective functions.
No single measurement provides a complete picture of oil condition. Several tests are needed to evaluate an oil-filled transformer accurately.
Oil Property | Why It Matters | Potential Concern |
Dielectric Breakdown Voltage | Measures the oil's ability to withstand electrical stress under test conditions | Low results may indicate moisture or particulate contamination |
Moisture Content | Indicates water contamination affecting the insulation system | Excessive moisture can weaken insulation reliability |
Acidity | Helps assess oxidation and chemical deterioration | Increasing acidity may indicate advanced oil aging |
Viscosity | Influences liquid movement and cooling performance | Unsuitable viscosity may restrict heat transfer |
Dissipation Factor | Measures dielectric losses under specified conditions | Elevated values may suggest contamination or degradation |
Dielectric breakdown voltage is useful, but it has limitations. An acceptable result does not guarantee the entire insulation system remains healthy.
Moisture testing provides additional information about insulation-related risks. However, temperature influences how water distributes between oil and cellulose insulation. Acidity and dissipation factor measurements help reveal chemical changes. Viscosity is particularly relevant when evaluating oil suitability for cooling.
New oil specifications also differ from in-service acceptance criteria. Operators should use requirements appropriate to their equipment and insulating liquid. IEC 60422 provides guidance for supervising and maintaining mineral insulating oils. Its recommendations include testing, condition evaluation, and oil treatment procedures.
A suitable maintenance decision should consider several test results together. Operating history and previous measurements provide valuable context. For example, a gradual increase in acidity may indicate developing oxidation. Even when individual measurements remain acceptable, consistent deterioration deserves attention.
Regular oil testing helps identify problems before they interrupt transformer operation. It also supports informed decisions about maintenance and equipment service life. The correct approach depends on transformer design and operating conditions. Critical equipment may require closer monitoring than smaller, less demanding installations.
Different oil tests provide information about separate operating risks. Combining their results creates a clearer picture of transformer condition.
Dielectric Breakdown Voltage Testing: Measures the voltage at which an oil sample breaks down electrically. Low results may indicate contamination or reduced insulating performance.
Moisture Testing: Measures water content in transformer oil. It helps assess contamination and potential risks to the insulation system.
Acidity Testing: Evaluates acidic compounds produced during oil aging. Increasing results may indicate oxidation and the need for further investigation.
Dissolved Gas Analysis (DGA): Measures gases dissolved within the insulating liquid. Gas patterns and trends can help identify developing thermal or electrical faults.
These tests should not be interpreted separately from operating conditions. Temperature, loading history, and previous results can influence maintenance decisions. An abnormal result does not always require immediate oil replacement. However, it should trigger appropriate investigation by qualified personnel.
Transformer oil does not always need replacement when its properties deteriorate. Different treatment methods can restore certain characteristics. Filtration removes suspended particles and some physical contaminants. However, ordinary filtration cannot remove every type of degradation product.
Dehydration reduces moisture through suitable oil treatment equipment. This process helps improve insulation reliability when excess water is present. Degassing removes dissolved gases and may accompany other treatment methods. It is often performed using specialized processing equipment. Reclamation addresses certain chemical deterioration products, including acidic and polar compounds. It generally requires more extensive treatment than basic filtration.
Oil replacement may become necessary when deterioration is severe. It may also be appropriate when treatment cannot restore acceptable properties. However, replacing oil does not repair damaged windings or aged cellulose insulation. The underlying cause must still be identified and addressed.
Effective maintenance begins before oil deterioration becomes severe. Operators should establish inspection and testing routines suited to equipment conditions.
Important maintenance practices include:
1. Monitor operating temperatures. Investigate unusual temperature increases or repeated overheating conditions.
2. Inspect seals and connections. Check for leakage and possible environmental contamination.
3. Schedule oil testing. Adjust testing intervals according to equipment importance and operating history.
4. Review historical results. Compare measurements to identify gradual changes and emerging risks.
5. Follow qualified procedures. Use trained personnel for sampling, treatment, and electrical maintenance.
Proper sampling is especially important for reliable test results. Contaminated containers or unsuitable sampling techniques can produce misleading measurements.
The maintenance schedule should reflect actual equipment conditions. Transformers exposed to heavy loading may require closer condition monitoring. A consistent maintenance program improves both safety and planning. It helps operators decide when further testing or corrective work is necessary.
Transformer design influences how effectively insulating oil performs throughout operation. Cooling arrangements, tank construction, and sealing methods all affect its condition. A well-designed oil-filled transformer should provide adequate cooling for its intended electrical load. Its insulation system must also suit the required operating voltage.
Hermetically sealed construction helps limit external oxygen and moisture exposure. This protection can reduce certain contamination risks during normal service. However, a sealed tank does not eliminate internal deterioration. Oil quality and operating temperatures still require appropriate attention. Cooling arrangements should also match the installation environment. High ambient temperatures and heavy loading create greater thermal demands.
Before purchasing equipment, buyers should examine several important specifications:
Insulating liquid type: Confirm compatibility with the transformer's design and maintenance requirements.
Cooling method: Verify adequate heat dissipation under expected operating conditions.
Temperature limits: Check the manufacturer's permitted operating temperatures and loading guidance.
Tank protection: Review sealing arrangements and environmental protection requirements.
Maintenance access: Confirm suitable provisions for inspection, testing, and servicing.

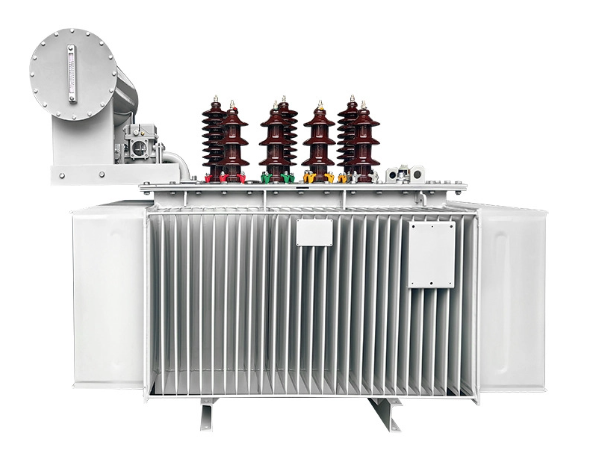

These considerations help buyers compare transformer designs more effectively. They also reduce the risk of unsuitable equipment selection. At Pino Electric, our oil-immersed Ttransformers serve industrial and power distribution applications. We offer sealed designs intended to protect insulating oil from external contamination. Our product range also includes cooling-focused designs for demanding operating conditions. Selecting suitable equipment requires more than checking its rated capacity. Buyers should consider how its design supports insulation and temperature control.
Transformer oil is essential for electrical insulation and heat removal in an oil-filled transformer. It protects internal components and helps maintain safe operating temperatures. Poor oil condition increases the risk of insulation damage, overheating, and unexpected outages. Regular testing and temperature monitoring help identify problems before serious failures occur. Long-term reliability depends on proper transformer design and consistent maintenance. Both are necessary for safe and efficient operation. Pino Electric Technology Co., Ltd. provides oil-filled transformers designed for reliable insulation and effective cooling. Our transformer solutions support stable power distribution and help customers meet their operational needs.
A: Transformer oil provides electrical insulation and cooling in an oil-filled transformer. It prevents electrical breakdown between energized components and transfers heat away from the windings and core.
A: In an oil-filled transformer, heated oil rises while cooler oil moves downward. This circulation transfers heat from internal components to the tank and radiators, helping prevent overheating.
A: Moisture, particles, and oxidation products can reduce transformer oil's insulating performance. Severe contamination may increase electrical faults, restrict cooling, and accelerate insulation damage.
A: Oil testing frequency depends on equipment age, operating conditions, and maintenance requirements. Regular testing helps an oil-filled transformer maintain reliable insulation and cooling performance.
A: Yes. Filtration can remove suspended particles, while dehydration reduces moisture. However, severely degraded transformer oil may require reclamation or replacement to restore acceptable operating conditions.
