How does electricity reach homes and factories at the right voltage? An oil-filled transformer plays a vital role in this process. It uses electromagnetic induction to increase or decrease AC voltage. Meanwhile, insulating oil removes heat and protects internal electrical components. These transformers are widely used in power distribution networks, substations, and industrial facilities. Their reliable operation depends on both electrical performance and effective cooling. Understanding their working principle helps explain how they safely transfer electrical energy. You'll learn about their main components, cooling process, common applications, and key operating considerations.
An oil-filled transformer operates through electromagnetic induction between two or more electrically separate windings. Its magnetic core transfers changing magnetic flux between these windings without direct electrical contact. This process allows the transformer to increase or decrease AC voltage according to system requirements.
When alternating current enters the primary winding, it creates a changing magnetic field. The magnetic core provides a controlled path for this changing magnetic flux. As the flux passes through the secondary winding, it induces an electrical voltage. This process follows Faraday's law of electromagnetic induction.
The primary and secondary windings remain electrically isolated in a conventional two-winding transformer. Energy moves between them through their shared magnetic field. The transformer changes voltage levels without changing the electrical supply frequency.
Unlike an electrical generator, a transformer contains no rotating parts during normal operation. Its operation depends on changing magnetic flux rather than mechanical movement. This makes electromagnetic induction the foundation of transformer voltage conversion.
The number of turns in each winding determines the voltage conversion ratio. A winding containing more turns generally develops a higher voltage. This relationship allows transformers to operate in two common configurations.
Step-up transformer: The secondary winding has more turns than the primary winding. It increases output voltage while reducing current for approximately equal transferred power.
Step-down transformer: The secondary winding has fewer turns than the primary winding. It reduces output voltage while allowing higher output current.
When equipment connects to the secondary circuit, electrical current begins flowing through that winding. This current creates another magnetic field that opposes the original flux change. The primary winding consequently draws additional current from the power supply.
As electrical demand increases, the transformer transfers more power to the connected equipment. However, its windings and magnetic core also generate heat during operation. Winding resistance causes copper or aluminum losses, while magnetic effects produce core losses.
These losses explain why transformer efficiency never reaches exactly 100 percent. They also make effective cooling essential for reliable operation. The insulating oil helps remove this heat before temperatures damage internal insulation.
Several internal and external components work together to support safe voltage conversion. Each component has a specific electrical, mechanical, or thermal function. Understanding these parts helps explain how the transformer operates as one complete system.
The magnetic core provides a low-reluctance path for changing magnetic flux. It typically contains thin laminated sheets of electrical steel. These laminations help reduce circulating eddy currents and related energy losses.
The primary winding receives electrical energy from the incoming AC supply. The secondary winding delivers energy at the required output voltage. Manufacturers commonly use copper or aluminum conductors for these windings.
Electrical insulation separates individual conductors, windings, and nearby grounded components. Its quality directly affects the transformer's ability to withstand electrical stress. The arrangement of these parts also influences losses and temperature distribution.
The main tank holds the magnetic core, windings, and insulating liquid. It provides mechanical protection while helping transfer internal heat outward. Its construction depends on the transformer's voltage rating and intended operating environment.
Bushings allow electrical conductors to pass safely through the tank enclosure. They provide insulation between energized connections and grounded metal surfaces. Tap changers adjust the effective winding ratio to support voltage requirements.
Other components provide additional operational protection and monitoring functions. Their availability depends on the transformer's construction and protection requirements.
Radiators or cooling surfaces: Transfer heat from the insulating oil into surrounding air.
Temperature indicators: Help operators monitor oil or winding temperatures.
Pressure-relief devices: Help protect the tank against excessive internal pressure.
Oil expansion arrangements: Accommodate volume changes as oil temperature rises.
Some sealed transformer designs eliminate the need for an external conservator tank. They accommodate oil expansion through their designated internal construction.
Transformer oil performs two essential functions inside an oil-filled transformer. It removes heat from energized components and provides electrical insulation. Both functions help maintain reliable operation under normal loading conditions.
Electrical and magnetic losses generate heat whenever the transformer operates. Insulating oil absorbs this heat from the windings and surrounding core structures. The heated oil becomes less dense and naturally moves upward.
Cooler oil moves downward to replace the warmer liquid. This movement creates a continuous circulation process inside the tank. Heat reaches the external tank walls or radiators through this circulation.
The cooling surfaces release heat into the surrounding air. As the oil cools, it becomes denser and circulates downward again. This process continues while the transformer remains in operation.
Larger transformer designs may use pumps or fans for additional cooling. These systems improve heat removal when natural circulation becomes insufficient. The selected cooling arrangement depends on transformer capacity and operating conditions.
Insulating oil also acts as a dielectric material inside the transformer. It helps prevent unwanted electrical discharge between energized and grounded components. The oil works alongside solid insulation surrounding the windings and conductors.
Clean, dry insulating oil provides effective dielectric protection under suitable operating conditions. However, moisture and contamination can reduce its electrical insulation strength. Dissolved gases may also indicate developing thermal or electrical faults.
Oil testing helps assess these conditions before major insulation problems develop. Common evaluations include dielectric breakdown voltage, moisture content, and dissolved gas analysis. Test selection depends on equipment condition and applicable maintenance requirements.
The oil does not directly change the electrical voltage. That function belongs to the windings and their magnetic coupling. Instead, the oil maintains conditions that support reliable electrical energy transfer.
The complete process can be summarized through the following cooling sequence:
Stage | What Happens |
Heat generation | Windings and magnetic components produce heat during operation. |
Heat absorption | Insulating oil absorbs heat from internal components. |
Oil circulation | Warmer oil rises while cooler oil moves downward. |
Heat dissipation | Tank surfaces or radiators release heat into surrounding air. |
Cooling cycle | Cooled oil returns toward the heated components. |
This circulation helps limit temperature rise during normal transformer operation. Its effectiveness depends on loading, oil condition, and external cooling conditions.
Oil-filled transformers support electrical systems requiring dependable voltage conversion and thermal management. Their applications range from local distribution networks to demanding industrial environments. The specific design depends on voltage levels, capacity, and installation conditions.
Distribution systems use transformers to reduce electricity from medium-voltage networks. The resulting voltage can then supply residential, commercial, and industrial consumers. Oil-based cooling helps these transformers manage heat during daily load variations.
Substations connect electrical networks operating at different voltage levels. Transformers adjust voltage according to transmission or distribution requirements. They help electricity move between network sections without changing its frequency.
Manufacturing plants often require dedicated transformers for their electrical distribution systems. These units supply suitable voltage levels for production equipment and facility infrastructure. Their selection depends on operating load, electrical characteristics, and site conditions.
Oil-filled transformers are frequently installed in outdoor electrical distribution environments. Suitable enclosures protect their internal components against weather and environmental exposure. Installation must also consider ventilation, fire protection, and possible oil containment requirements.

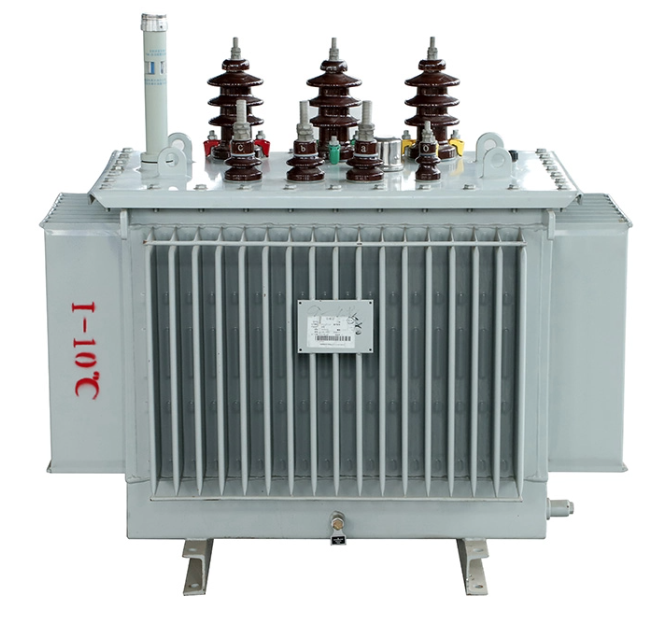

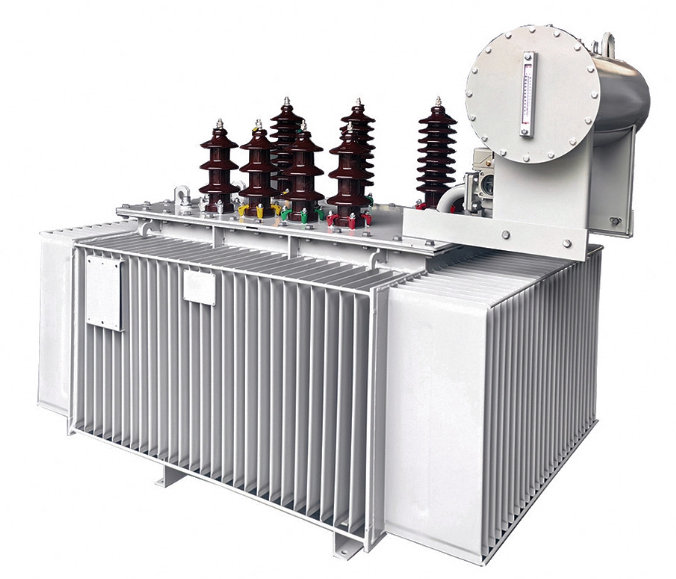

At Pino Electric, we offer oil-immersed transformers for industrial power applications and electrical distribution systems. Our product range includes configurations designed for different voltage and installation requirements.
An oil-filled transformer must operate within suitable electrical and thermal conditions. Excessive loading, poor cooling, and insulation deterioration can reduce its reliability. Understanding these factors helps operators identify problems before they become serious failures.
The transformer's rated capacity defines its intended operating capability under specified conditions. Higher current increases heat generation inside the windings. Sustained overloading can accelerate insulation aging and reduce equipment life.
Operators should compare actual demand against the transformer's rated capacity. They should also consider future load growth and operating patterns. Short-term overload capability depends on thermal conditions and manufacturer guidance.
Ambient temperature influences how effectively heat escapes from the transformer. Blocked radiators or poor airflow can increase internal operating temperatures. Cooling equipment must remain functional during demanding operating conditions.
Moisture, oxidation products, and other contaminants may reduce insulation performance. Some electrical or thermal faults also produce gases within the oil. Periodic condition assessments can reveal deterioration before visible symptoms develop.
Incorrect tap settings may produce unsuitable output voltage levels. Sustained overvoltage can increase magnetic excitation and core heating. Operating conditions should remain within the transformer's specified electrical limits.
Operators should investigate unusual changes rather than waiting for equipment failure. Important warning signs may include:
Abnormally high oil or winding temperature readings.
Visible oil leakage around seals, valves, or tank joints.
Unusual electrical noise or sudden changes in operating sound.
Protective alarms, pressure warnings, or unexpected electrical trips.
These symptoms do not always indicate the same underlying problem. Qualified electrical personnel should investigate faults using appropriate safety procedures. Internal inspections and electrical testing require suitable isolation and precautions.
Selecting a transformer requires more than understanding its voltage conversion process. Buyers must evaluate cooling requirements, safety conditions, and electrical system compatibility. Oil-filled equipment is suitable for many applications, but not every installation.
Both transformer designs use electromagnetic induction to transfer electrical energy. Their main differences involve insulation methods and heat management.
Oil-filled transformers use insulating liquid to support cooling and dielectric protection. Dry-type transformers use solid insulation systems and primarily air-based cooling. These differences influence installation requirements and maintenance practices.
Comparison Factor | Oil-Filled Transformer | Dry-Type Transformer |
Cooling method | Insulating liquid transfers heat to cooling surfaces. | Air removes heat from insulated windings. |
Insulation system | Liquid and solid insulating materials. | Primarily solid insulating materials. |
Installation | Common in outdoor and dedicated electrical installations. | Common in indoor and suitable outdoor installations. |
Maintenance | May require oil inspection, testing, and leak monitoring. | Requires insulation, ventilation, and connection inspections. |
Fire considerations | Depend on liquid type and installation protection. | Avoids liquid-related fire and spill concerns. |
Neither design is automatically more efficient or economical in every application. Actual performance depends on specifications, equipment quality, and operating conditions. Buyers should compare equivalent ratings before making a final decision.
Several technical parameters determine whether a transformer suits an electrical system. Confirming these requirements early helps prevent installation problems and unnecessary costs.
Rated Capacity: Check the required kVA rating against the expected electrical load. Include reasonable allowances for future expansion when justified.
Input and Output Voltage: Confirm both voltage ratings match the electrical distribution system. Review winding connections and voltage adjustment requirements.
Frequency and Phase Configuration: Verify compatibility with the available electrical supply. Common systems operate at 50 Hz or 60 Hz.
Installation Environment: Consider ambient temperature, altitude, available space, and environmental exposure. These conditions influence insulation and cooling requirements.
Safety and Compliance: Review applicable electrical standards, fire protection requirements, and fluid containment arrangements. Ensure the selected equipment meets project specifications.
The correct choice balances electrical performance, safe operation, and installation requirements. It should also allow appropriate access for inspection and maintenance.
An oil-filled transformer uses electromagnetic induction to change AC voltage, while insulating oil provides cooling and electrical protection. These functions support reliable performance in power distribution and industrial applications. Understanding how these transformers work helps buyers assess electrical capacity, operating conditions, and installation requirements. Choosing the right transformer ensures compatibility with both electrical demands and environmental conditions. Pino Electric Technology Co., Ltd. provides oil-immersed transformer solutions for power distribution and industrial systems. Our products support efficient voltage conversion, effective cooling, and dependable electrical performance. We help customers select suitable transformer configurations based on their specific project requirements.
A: An oil-filled transformer increases or decreases AC voltage in electrical systems. It is commonly used in power distribution networks, substations, and industrial facilities requiring reliable voltage conversion.
A: An oil-filled transformer uses electromagnetic induction to transfer energy between windings. The winding turns ratio determines whether the output voltage increases or decreases, while the supply frequency remains unchanged.
A: The oil in an oil-filled transformer provides electrical insulation and absorbs heat from internal components. It circulates through the tank, helping prevent overheating and maintaining safe operating temperatures.
A: Oil-filled transformers use insulating liquid for cooling and electrical protection. Dry-type transformers rely primarily on air cooling and solid insulation. Both designs serve different installation and safety requirements.
A: The cost of an oil-filled transformer depends on its capacity, voltage rating, cooling system, and design requirements. Installation expenses, maintenance needs, and operating losses also influence total ownership costs.
