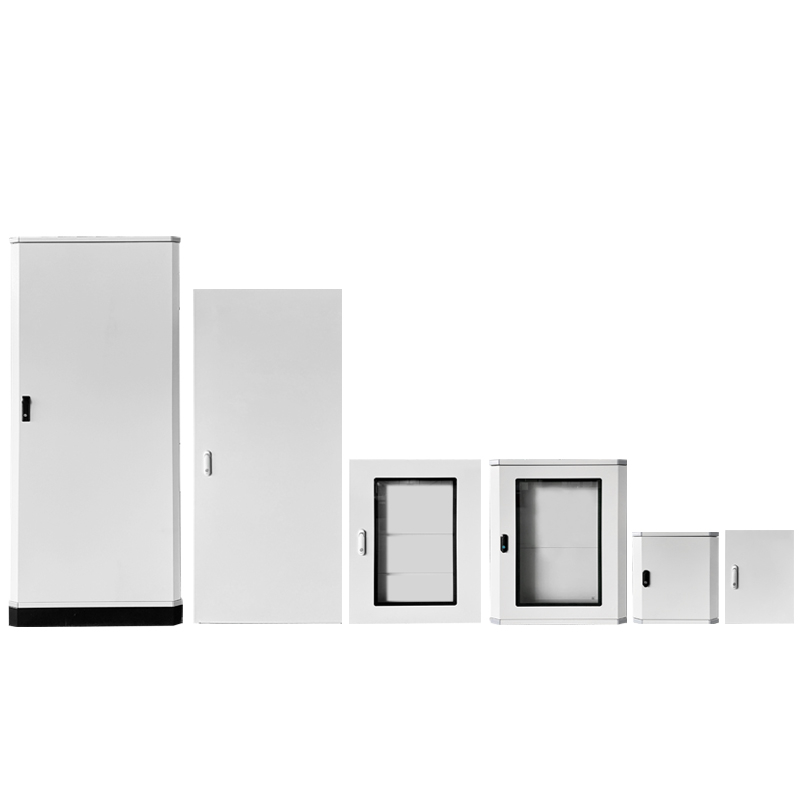

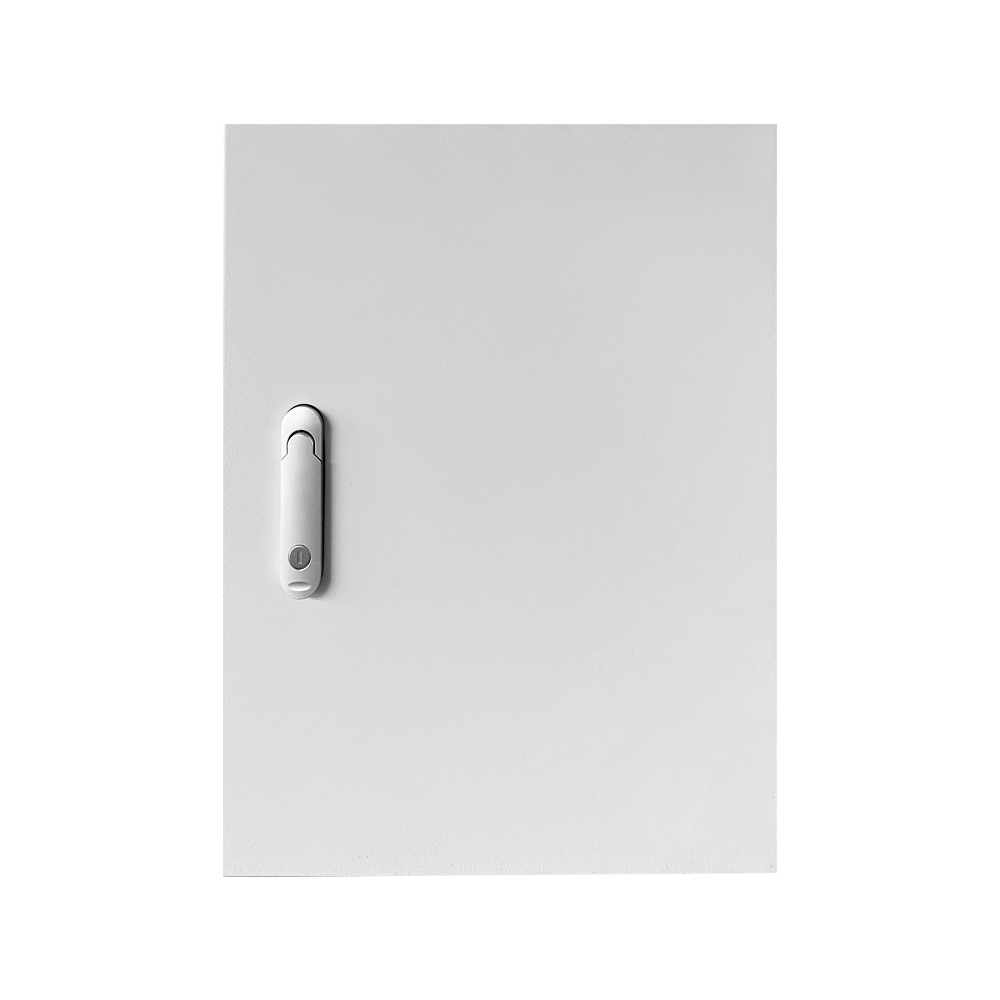

Model: Prism E Brand: Pino Electric Rated Voltage: 400V Rated Current: 630A/1000A Rated Frequency: 50Hz/60Hz MOQ: 1pcs
Overview
Prism E series low voltage distribution box is a high-performance solution designed for low voltage distribution systems. It is widely used in industrial, commercial, and residential sectors, providing a safe, reliable, and flexible distribution solution. The distribution box is made from high-quality materials and advanced manufacturing processes, ensuring durability and reliability. Its modular design facilitates easy installation, maintenance, and expansion, making it suitable for various low voltage distribution needs.
Product Features
Safety Performance
Complies with international standards (IEC 61439-1/2) to ensure electrical safety.
Equipped with multiple protection devices, such as overload protection, short circuit protection, and leakage protection, ensuring safe use.
High Reliability
Utilizes high-quality materials and advanced manufacturing processes to ensure long-term reliability.
Excellent electromagnetic interference resistance ensures stable system operation.
Ease of Maintenance
Designed with convenient maintenance in mind, all components are easily accessible and replaceable.
Provides clear wiring diagrams and labels, facilitating daily inspection and maintenance.
Flexibility and Expandability
Modular design allows the system to be expanded and upgraded as needed.
Supports various installation methods, such as wall-mounted and floor-standing, adapting to different installation environments.
Intelligent Management
Optional intelligent monitoring modules enable remote monitoring and management.
Supports data collection and analysis, helping users optimize power management and improve system operation efficiency.
Energy Efficiency and Environmental Protection
Made from environmentally friendly materials, compliant with RoHS directives, reducing environmental impact.
Optimized design improves energy utilization efficiency, reducing energy consumption.
| Electrical characteristic | |||||||||
| Maximum rated current In(A) | Open installation | 630A/1000A | |||||||
| Concealed installation | 160 | ||||||||
| Rated insulation voltage Ui (V AC) | 800 | ||||||||
| Rated operating voltage Ue (V AC) | 400 | ||||||||
| Rated impulse withstand voltage Uimp (kV) | 8 | ||||||||
| Frequency fn (Hz) | 50/60 | ||||||||
| Maximum rated short-time withstand current Icw (kA/1s) | 50 | ||||||||
| Maximum rated peak withstand current Ipk (kA) | 105 | ||||||||
| Mechanical characteristic | |||||||||
| Cable entry | Top/bottom | ||||||||
| IP level | Open installation | Top/bottom | |||||||
| Concealed installation | 30/31/40/41/54 | ||||||||
| Class I | |||||||||
| Size (mm) | module | 9 | 13 | 17 | 21 | 25 | 29 | 33 | 36 |
| Open height | 500 | 700 | 900 | 1100 | 1300 | 1650 | 1850 | 2000 | |
| (including base) | |||||||||
| Surface depth | 236 (solid door transparent door) /250 (open door) 306 | 506 | |||||||
| Hidden depth | 221 | NO | |||||||
| Breadth | 600(IP 30/31/40/41/54),600 300(IP 30/40) | 800 | |||||||
| Cabinet door | Solid door IP30/31/40/41/54 | Yes | |||||||
Open to the door IP30/31/40/41 | Yes | NO | |||||||
clear door IP30/31/40/41/54 | Yes | NO | |||||||
| Applicable standard | |||||||||
| Design verification criteria | GB/T 7251.1 GB/T 7251.2; IEC61439.1 IEC61439.2 | ||||||||
| IP standard | IEC60529 | ||||||||
| Empty tank standard | GB/T20641 | ||||||||
| Environmental condition | |||||||||
| operation | indoor | ||||||||
| Highest altitude (m) | 2000 | ||||||||
| Average ambient temperature (℃) | 35 | ||||||||
| Pollution level | 3 | ||||||||
| Other | |||||||||
| Cabinet material | Cold-rolled steel plate | ||||||||
| Shell spraying | Electrostatic spraying epoxy resin powder | ||||||||
| Colour | RAL7035 | ||||||||
(1) For the application of the 1000A solution, contact the authorized service support team or thelow-voltage equipment Marketing Department.
(2) Open-mounted cabinet height 2000mm (36 mold) is only applicable to 630A~1000A solution.
