A small maintenance issue can lead to serious transformer damage. Without regular checks, overheating and insulation deterioration may cause costly downtime. Proper oil-filled transformer maintenance starts with identifying potential problems early. Insulating oil, tank seals, bushings, cooling equipment, and protective devices all need attention. However, maintenance needs vary by transformer design, age, operating conditions, and inspection history. A suitable inspection plan helps prevent unnecessary repairs and unexpected failures. This guide explains what to inspect and which tests matter most. You'll also learn how to recognize warning signs and decide when corrective action is necessary.
Routine inspections help identify visible problems before they affect transformer performance. Most initial checks involve external components and operating indicators. They should follow approved site safety procedures and manufacturer instructions.
Insulating oil provides electrical insulation and transfers heat away from internal components. Maintaining the correct oil level supports both functions. An unexpected decrease may indicate leakage or another developing problem.
Start by checking the oil level indicator, where one is installed. Compare its reading against the manufacturer's recommended range. Remember that oil expands and contracts as temperatures change. A lower reading does not always indicate leakage.
Next, inspect the tank and accessible external connections. Pay particular attention to these areas:
Gaskets and seals: Look for oil stains, cracks, or signs of deterioration.
Valves and joints: Check for visible leakage around connection points.
Radiator connections: Examine fittings and welded areas for oil seepage.
Tank surfaces: Identify corrosion, damaged coatings, or unusual deformation.
Do not automatically add oil after discovering a low reading. First, determine whether leakage or another issue caused the change. Any oil replenishment requires the correct fluid and approved procedures.
Bushings allow electrical conductors to pass through the grounded transformer tank. Their insulation must remain clean, intact, and suitable for operating conditions.
Inspect accessible bushing surfaces for cracks, contamination, and mechanical damage. Dirt and moisture can increase the risk of surface discharge. Damaged insulation may eventually cause electrical failure.
Also, look for discoloration near terminal connections. It may indicate excessive heating or poor electrical contact. Qualified technicians can use infrared thermography to identify unusual temperature differences. Thermal readings should be compared under similar loading conditions. Any close electrical inspection requires appropriate isolation and safety controls.
Temperature readings provide useful information about transformer operating conditions. Excessive heat can accelerate insulation aging and reduce equipment reliability.
Check the oil temperature and winding temperature indicators, where installed. Compare current measurements against historical records and operating loads. A sudden increase under similar conditions deserves investigation.
Listen for unusual noise or vibration during normal operation. Transformers typically produce a steady humming sound. However, significant changes may indicate electrical or mechanical problems. Record observations consistently to identify developing trends over time. A single unusual reading may require confirmation before further action.
Routine Transformer Inspection Checklist
Inspection Item | What to Check | Potential Warning Sign |
Oil level | Indicator reading and temperature | Unexpected level changes |
Tank and seals | Gaskets, valves, joints | Leakage or corrosion |
Bushings | Insulating surfaces and terminals | Cracks, contamination, overheating |
Temperature | Oil and winding indicators | Unexplained temperature increases |
Operating condition | Noise and vibration | Sudden changes or abnormal sounds |
These checks provide a useful starting point for maintenance planning. However, external inspections cannot reveal every internal problem.
Insulating oil can deteriorate even when external components appear normal. Regular oil testing helps maintenance teams evaluate insulation condition and possible internal faults.
Dielectric breakdown voltage testing measures the oil's ability to withstand electrical stress. Reduced test values may indicate moisture, contamination, or other oil quality problems.
Moisture deserves particular attention because it affects insulation performance. Water may enter through damaged seals or develop through insulation aging. Excessive moisture can weaken electrical insulation and increase failure risks.
Laboratory testing may also assess other important properties:
Acidity: Helps evaluate chemical aging and oxidation.
Interfacial tension: Provides additional information about oil degradation.
Dielectric dissipation factor: Helps identify certain contamination and deterioration problems.
Testing limits depend on the oil type and applicable standards. Maintenance teams should avoid using one universal acceptance value. Proper sampling is equally important for reliable results. Qualified personnel should use suitable containers and approved collection methods. Poor sampling can introduce contaminants and produce misleading conclusions.
Dissolved gas analysis, commonly called DGA, examines gases present inside insulating oil. Certain gas patterns can indicate abnormal heating or electrical activity. For example, hydrogen may appear during several electrical fault conditions. Ethylene can support the investigation of higher-temperature thermal faults. Acetylene may indicate electrical arcing, depending on its concentration and context.
However, individual gases rarely provide a complete diagnosis. Engineers must consider gas combinations, concentrations, and generation rates. Historical results are especially valuable when evaluating developing faults. A rising gas concentration may require closer investigation, even without visible damage.
A single abnormal result does not automatically justify transformer replacement. Instead, qualified specialists should interpret the findings and recommend appropriate follow-up testing.
Cooling components help remove heat generated during transformer operation. Oil preservation systems help protect insulating materials against moisture and contamination. Their maintenance requirements depend on the actual transformer configuration.

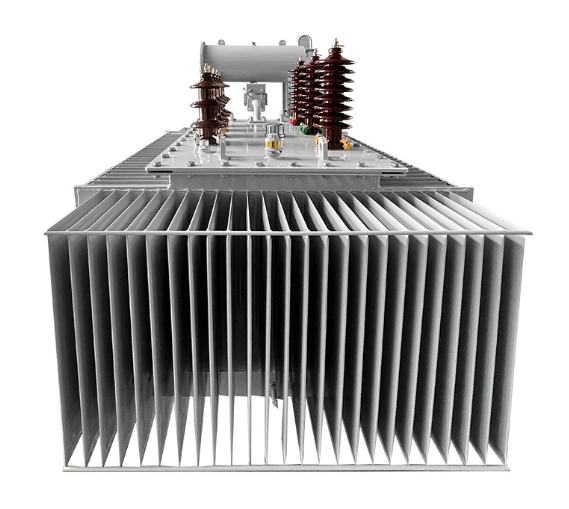

Radiators release heat from transformer oil into the surrounding environment. Dust, debris, and restricted airflow may reduce cooling effectiveness. Inspect radiator surfaces for dirt accumulation, corrosion, and visible damage. Ensure surrounding equipment does not block the intended airflow. Examine radiator joints for signs of leakage.
Some transformers include cooling fans or oil circulation pumps. When installed, these components require additional operational checks.
Confirm that cooling fans operate when required.
Check for abnormal vibration or noise.
Inspect accessible electrical and mechanical connections.
Verify cooling controls according to approved procedures.
Not every transformer uses forced cooling equipment. Some designs rely entirely on natural oil circulation and air cooling. Compare operating temperatures under similar loading and ambient conditions. Unexpected increases may suggest reduced cooling performance or another developing fault.

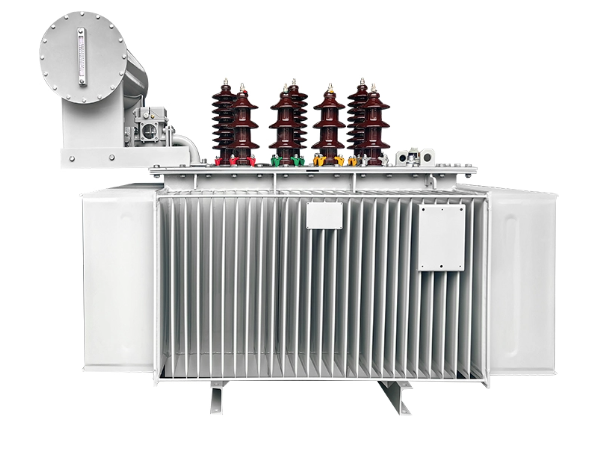

Certain transformer designs use conservator tanks to accommodate oil expansion. They may also include breathers to reduce moisture entering the system. Inspect silica gel breathers for moisture saturation or physical damage. Replace or regenerate the desiccant according to manufacturer instructions. Check conservator oil levels and visible connections for leakage. Systems containing bladders or diaphragms may require additional condition checks.
However, hermetically sealed transformers use a different oil preservation arrangement. They generally do not require the same breather inspections. For these units, external sealing integrity remains important. Always confirm the transformer design before preparing its maintenance checklist.
Visual inspections cannot identify every electrical problem inside a transformer. Periodic diagnostic tests provide additional information about insulation and winding condition. These procedures require qualified personnel and appropriate test equipment. Most electrical tests require the transformer to be safely de-energized and isolated.
Insulation resistance testing helps evaluate insulation between windings and grounded components. Unusual results may indicate moisture, contamination, or insulation deterioration. However, temperature and testing conditions can affect measurements. Results should therefore be compared against suitable historical values.
Other diagnostic tests may include:
Winding resistance testing: Helps identify abnormal winding connections or resistance changes.
Transformer turns ratio testing: Checks the relationship between primary and secondary winding ratios.
Bushing insulation testing: Assesses selected insulation characteristics when suitable testing facilities are available.
These tests answer different maintenance questions. No single measurement can fully establish transformer condition. Maintenance teams should review the equipment's history before selecting tests. Unusual oil results, repeated alarms, or suspected damage may justify additional investigation.
Protective devices help detect abnormal conditions and initiate appropriate responses. Their reliability depends on correct installation, operation, and maintenance. Inspect the pressure relief device for damage or evidence of activation. Verify temperature alarms and oil level alarms where installed.
Some conservator-type transformers include a Buchholz relay. It detects certain gas accumulation and oil movement conditions. Its inspection requires procedures appropriate to the installed design.
Check protection functions according to an approved maintenance program. Verify alarm indications, control circuits, and relevant operating records. Avoid resetting protective devices without investigating their activation. An unexplained trip may indicate a serious equipment problem.
Transformer maintenance can expose personnel to dangerous electrical and thermal hazards. Only qualified technicians should perform electrical testing or intrusive maintenance. They must follow approved isolation and lockout/tagout procedures.
Appropriate grounding and verification of isolation remain essential before electrical work. Oil sampling and internal inspections also require specific safety precautions. Never open energized equipment without a specifically authorized, engineered procedure.
Maintenance frequency depends on equipment condition, operating demands, and environmental exposure. A transformer serving critical infrastructure may require more frequent monitoring. A newly installed unit may also need additional inspections. These help establish reliable operating records and identify early abnormalities.
Start by reviewing manufacturer instructions and site maintenance requirements. Use them to establish inspection schedules for each equipment category. Routine checks generally focus on visible conditions and operating measurements. Periodic maintenance may include laboratory testing and electrical diagnostics.
The following table provides an illustrative maintenance planning framework.
Maintenance Activity | Suggested Planning Approach |
Visual inspection and operating readings | Routine site rounds, often monthly or more frequently |
Cooling and external components | Periodic checks and planned maintenance |
Oil quality testing and DGA | Based on condition, criticality, and testing history |
Electrical diagnostic testing | Scheduled outages or specific fault investigations |
Protection and alarm verification | Approved site maintenance schedule |
These intervals are examples rather than universal requirements. Actual schedules should follow the manufacturer's recommendations and applicable maintenance standards. More frequent inspections may become necessary after unusual operating events. Examples include severe overloading, unexpected temperature increases, and protective trips.
Maintenance records should include inspection dates, operating conditions, and test findings. They help teams recognize patterns and justify maintenance decisions. Historical comparisons also improve the value of diagnostic testing. A gradual change may reveal deterioration earlier than isolated measurements.
Some maintenance findings require urgent attention because they suggest serious equipment problems. Others allow time for scheduled testing or corrective repairs. Understanding the difference helps operators protect personnel and avoid unnecessary outages.
Warning signs requiring prompt evaluation include:
Major oil leakage: Rapid oil loss may compromise insulation and cooling performance.
Abnormal temperature increases: Unexplained heating may indicate overloading, cooling problems, or internal faults.
Repeated protective trips: Frequent alarms or trips may signal unresolved electrical problems.
Unusual gas generation: Rapid changes in dissolved gas results may indicate developing internal faults.
Visible electrical discharge: Arcing or discharge activity requires immediate safety assessment.
Personnel should follow site emergency procedures when serious abnormalities appear. Qualified specialists must determine whether continued operation remains safe. For less urgent findings, planned maintenance may be appropriate. Minor external deterioration or stable monitoring changes may require follow-up inspections.
A practical response process includes four levels:
1. Continue Monitoring: Record stable conditions and maintain the established inspection schedule.
2. Arrange Diagnostic Testing: Investigate unusual trends or uncertain equipment conditions.
3. Plan Corrective Maintenance: Schedule repairs for confirmed problems without immediate safety implications.
4. Escalate Immediately: Apply emergency procedures when serious electrical or mechanical hazards appear.
Documentation supports every stage of this process. Record abnormal conditions, investigation results, repairs, and follow-up actions. Maintenance decisions should reflect the combined evidence from operating records and tests. Never rely on one isolated observation when evaluating overall equipment condition.
Effective oil-filled transformer maintenance combines routine inspections, oil testing, and electrical diagnostics. These checks help prevent insulation damage, overheating, and unexpected equipment failures. Unusual readings, recurring leaks, and declining test results should guide maintenance decisions. Operators should maintain accurate records and follow procedures suited to their transformer design. At Pino Electric Technology Co., Ltd., we provide reliable oil-immersed transformers for industrial and power distribution applications. Our transformers support efficient heat dissipation and stable electrical performance under suitable operating conditions. We help customers select suitable transformer solutions for their specific power requirements. Combined with proper maintenance, our products support long-term reliability and reduced operational downtime.
A: An oil-filled transformer maintenance checklist should cover oil levels, leakage, bushings, cooling systems, and protective devices. Regular inspections and diagnostic tests help identify potential failures before serious damage occurs.
A: An oil-filled transformer requires regular visual inspections and periodic testing. Maintenance frequency depends on operating conditions, equipment age, loading, and manufacturer recommendations. Critical installations may require more frequent monitoring.
A: Oil testing helps detect moisture, insulation deterioration, and possible internal faults. Regular dielectric strength testing and dissolved gas analysis provide valuable information about an oil-filled transformer's condition.
A: Common warning signs include oil leakage, unusual noises, rising temperatures, and repeated protective trips. An oil-filled transformer showing these symptoms requires prompt investigation to prevent further damage.
A: Laboratory tests measure dielectric strength, moisture, acidity, and other oil properties. Poor results may indicate contamination or aging. However, oil treatment may be sufficient without complete replacement.
