Choosing an oil-filled transformer based only on capacity and price can be a costly mistake. Incorrect specifications may cause voltage instability, energy losses, overheating, or system incompatibility. A reliable purchase requires careful attention to seven key specifications. These include rated capacity, voltage ratings, winding configuration, short-circuit impedance, insulation levels, energy losses, and cooling performance. Each specification affects how well the transformer meets your electrical and operating requirements. Understanding these factors helps you avoid expensive purchasing mistakes. This guide explains how to evaluate technical datasheets and compare supplier quotations. You'll learn how to select a transformer suited to your project's needs.
Rated capacity determines how much electrical power a transformer can deliver under specified operating conditions. Choosing the correct capacity helps maintain reliable operation while avoiding unnecessary equipment costs.
Transformer capacity is measured in kilovolt-amperes (kVA), representing apparent electrical power. However, industrial equipment often lists its consumption in kilowatts (kW), representing active power.
The relationship between these values depends on the electrical system's power factor.
Required Capacity (kVA) = Active Power (kW) ÷ Power Factor
Consider an industrial facility requiring 400 kW at a power factor of 0.8.
400 kW ÷ 0.8 = 500 kVA
This calculation indicates a 500 kVA apparent power requirement. However, it does not automatically establish the final transformer rating.
Engineers must also consider simultaneous equipment operation, maximum demand, and actual load characteristics. Simply adding every machine's nameplate rating may overestimate the facility's electrical demand.
For example, several production machines might operate at different times. Their combined installed capacity could exceed the facility's actual peak demand. A reliable load assessment should therefore reflect realistic operating conditions rather than theoretical maximum consumption.
Electrical demand rarely remains constant throughout the day. Motor starting, production cycles, and seasonal operations can create temporary load increases.
An undersized transformer may experience excessive temperatures during sustained overloads. These conditions can accelerate insulation aging and reduce equipment life. Oversizing also creates problems. Larger transformers generally require higher initial investment and may introduce unnecessary no-load losses.
When choosing capacity, consider these practical factors:
Peak demand: Identify the highest expected simultaneous electrical load during normal operations.
Motor starting: Evaluate temporary voltage drops caused by large motor starting currents.
Future expansion: Include realistic capacity requirements for planned equipment or facility upgrades.
Operating margin: Allow suitable capacity reserves without selecting unnecessarily large equipment.
For example, a facility requiring 500 kVA might consider a higher standard rating. The final choice depends on load growth, temperature conditions, and engineering requirements. The goal is not simply purchasing the largest affordable transformer. It is selecting sufficient capacity for reliable operation throughout the intended service life.
Capacity alone cannot determine whether a transformer fits your electrical network. Voltage ratings and winding arrangements must also match the connected power system. Incorrect specifications can prevent installation or create serious operating problems.
Primary voltage identifies the voltage applied to the input winding. Secondary voltage indicates the output supplied to connected electrical equipment. For example, a 10 kV/0.4 kV transformer reduces medium-voltage power to low-voltage distribution levels. This configuration commonly supports industrial facilities and commercial electrical distribution systems.
However, different projects may require different voltage combinations. Buyers must confirm actual supply conditions before requesting quotations. Transformer tap settings provide another important consideration. They allow adjustment of the winding ratio to accommodate supply voltage variations. Typical off-circuit tap arrangements may include ±5% or ±2 × 2.5%. These values represent possible specifications rather than universal transformer configurations.
Two common adjustment methods exist:
Off-circuit tap changing: Requires the transformer to be de-energized before changing tap positions.
On-load tap changing: Allows voltage adjustments while the transformer remains energized and operating.
On-load mechanisms provide greater operating flexibility but introduce additional complexity and cost. Most buyers should select tap-changing equipment according to actual voltage regulation requirements.
Transformers also differ in their phase arrangements and winding connections. These characteristics determine how the equipment integrates into an electrical distribution system. Single-phase transformers serve applications requiring single-phase electrical supply. Three-phase units support three-phase distribution networks and many industrial loads.
Three-phase transformers may use different winding connection groups, including Dyn11 and Yyn0. These designations describe winding connections and the phase relationship between primary and secondary voltages.
For example, Dyn11 provides a delta-connected high-voltage winding and a star-connected low-voltage winding. Its low-voltage side includes an accessible neutral point. Yyn0 uses star-connected windings on both sides, with zero phase displacement. Its suitability depends on grounding arrangements and system operating conditions.
Winding compatibility becomes especially important when transformers operate in parallel. Units must meet appropriate conditions for voltage ratio, phase sequence, phase displacement, and impedance. Otherwise, circulating currents and uneven load sharing may occur. Before ordering, confirm the required connection group against your electrical drawings. This simple verification can prevent expensive installation modifications.
Two transformers may share identical capacity and voltage ratings but behave differently during electrical faults. Short-circuit impedance and insulation withstand ratings help determine system protection and electrical reliability.
Short-circuit impedance describes the transformer's internal impedance under specified test conditions. Manufacturers commonly express this value as a percentage. It influences prospective short-circuit current and voltage regulation during operation.
A lower impedance generally permits higher fault currents. These currents may exceed the interrupting capability of existing protection devices. Higher impedance can limit fault currents but may produce greater voltage drops under load.
For example, consider two transformers having identical capacity and voltage ratings. One has 4% impedance, while the other has 6% impedance. Under simplified conditions, their approximate terminal fault-current multiples are:
4% impedance: Approximately 25 times rated current.
6% impedance: Approximately 16.7 times rated current.
These illustrative values assume a stiff supply and neglect additional system impedance and resistance. Neither value is automatically better for every application. The correct specification depends on the complete electrical system.
Before purchasing, engineers should evaluate protective devices, cable characteristics, motor starting, and expected fault levels. Parallel transformers also require compatible impedance characteristics for satisfactory load sharing.
Transformer insulation separates energized components and protects against electrical breakdown. Its requirements depend on system voltage and expected electrical stresses. External switching operations and lightning events can create temporary overvoltages. Insulation must withstand the specified stresses without failure.
Two important ratings deserve attention:
Power-frequency withstand voltage: Indicates insulation capability under a specified short-duration AC test voltage.
Lightning impulse withstand voltage: Indicates insulation strength against standardized high-voltage impulse conditions.
Buyers should also confirm the highest voltage for equipment. This value helps determine suitable insulation coordination within the electrical network. Installation conditions can introduce additional requirements. High altitude, severe surge exposure, and unusual environmental conditions may affect insulation selection.
The insulation level should follow applicable standards and project engineering specifications. Choosing ratings solely from nominal operating voltage may leave important risks unresolved. Request relevant dielectric test documentation before final equipment acceptance.
The purchase price represents only part of a transformer's total cost. Electrical losses continue generating expenses throughout its operating life. Understanding these losses helps buyers identify more economical equipment.
An oil-filled transformer experiences two major categories of electrical losses. No-load losses, often called core losses, occur whenever the transformer remains energized. They continue even when little power reaches connected equipment.
Load losses mainly result from electrical resistance and additional current-related effects. They increase as the transformer carries more load. At a fixed reference temperature, load losses approximately follow the square of loading current.
For example, operating at half-rated current produces approximately one-quarter of rated current-related losses. Actual results depend on temperature and the loss components involved.
This distinction matters when comparing two transformers. A lightly loaded unit may spend thousands of hours energized. Under these conditions, lower no-load losses can offer significant savings. A heavily loaded transformer may benefit more from reduced load losses. Always compare guaranteed loss values using equivalent ratings and reference conditions.
Buyers can estimate annual energy expenses using operating hours and expected loading.
Consider the following simplified example.
No-load loss: 800 W
Rated load loss: 5,000 W
Average loading: 60%
Annual energized time: 8,760 hours
Electricity cost: $0.12 per kWh
At 60% loading, the estimated load loss becomes: 5,000 × 0.6² = 1,800 W
The total estimated loss is 2,600 W.
Annual Loss Energy = 2.6 kW × 8,760 hours = 22,776 kWh
Annual Energy Cost = 22,776 × $0.12 = $2,733.12
Illustrative calculation — values require verification against actual transformer data and operating conditions. Constant loading and reference-temperature losses are assumed. This example demonstrates why efficiency differences deserve purchasing attention. A transformer costing more initially may produce meaningful savings throughout its service life.
The following table provides a practical comparison framework.
Evaluation Item | Transformer A | Transformer B |
Rated capacity | Same kVA | Same kVA |
No-load loss | Supplier value | Supplier value |
Rated load loss | Supplier value | Supplier value |
Annual energy cost | Calculated value | Calculated value |
Purchase price | Quoted price | Quoted price |
Use identical assumptions when completing these calculations. Otherwise, the comparison may produce misleading results.
Transformer cooling directly affects operating temperature and permissible loading. Proper thermal performance helps protect internal insulation during continuous operation.
Oil performs two important functions inside an oil-filled transformer. It provides electrical insulation and transfers heat away from energized components. The cooling system then releases this heat into the surrounding environment. Two common cooling classifications are ONAN and ONAF.
ONAN (Oil Natural Air Natural) relies on natural oil circulation and surrounding airflow. It operates without cooling fans.
ONAF (Oil Natural Air Forced) uses natural oil circulation alongside forced airflow. Cooling fans increase heat dissipation through external cooling surfaces. ONAF systems may support higher loading when properly designed and rated. However, fans introduce auxiliary power consumption and additional maintenance requirements.
Temperature-rise limits are equally important. These limits describe permissible operating temperatures relative to specified reference conditions. Buyers should check guaranteed oil and winding temperature-rise values. Applicable requirements depend on equipment design and relevant standards, including IEC 60076-2. Cooling classifications should never replace proper thermal performance verification.
Site conditions strongly influence cooling performance. High ambient temperatures reduce the available temperature difference for heat dissipation. High altitude can also reduce the cooling effectiveness of surrounding air. Consequently, standard equipment ratings may require additional engineering review under unusual conditions.
Before ordering, confirm the following installation requirements:
Ambient temperature: Provide expected maximum temperatures and relevant operating conditions.
Installation altitude: Identify sites requiring special consideration or rating adjustments.
Ventilation: Ensure adequate airflow around the transformer and cooling surfaces.
Physical dimensions: Confirm available installation space, clearances, and transportation access.
Outdoor applications also require suitable environmental protection and installation arrangements. Buyers should evaluate oil containment, maintenance access, and surrounding equipment clearances. A correctly rated transformer still requires appropriate installation conditions. Insufficient ventilation can undermine otherwise suitable thermal performance.
After reviewing the seven specifications, buyers need a consistent quotation evaluation process. Similar product descriptions do not guarantee equivalent electrical performance or project suitability.
Start by comparing each supplier's technical datasheet against the approved project requirements. Every important specification should contain a clearly stated value or configuration. Missing information should be clarified before accepting the quotation. Buyers should also verify operating frequency and applicable manufacturing standards.
IEC 60076 provides internationally recognized requirements covering several transformer design and testing aspects. Local regulations or project specifications may impose additional requirements. Request relevant test reports, technical drawings, and equipment nameplate details. These documents help confirm whether the proposed design meets agreed purchasing requirements.
The following checklist summarizes the seven essential specifications.
Specification | Purchasing Verification |
1. Rated capacity | Matches calculated peak demand and planned expansion |
2. Voltage ratings | Matches incoming supply, output voltage, and tap requirements |
3. Winding configuration | Meets phase, neutral, grounding, and connection requirements |
4. Short-circuit impedance | Supports protection coordination and system operation |
5. Insulation levels | Meets required dielectric withstand specifications |
6. Energy losses | Provides acceptable annual operating costs |
7. Cooling performance | Meets thermal requirements under expected site conditions |
Technical suitability is essential, but purchasing decisions also involve commercial considerations. Before approving an order, confirm the supplied accessories, insulating oil specification, warranty, delivery schedule, and available test documentation. Clarify whether quoted prices include transportation, installation support, and requested factory testing.

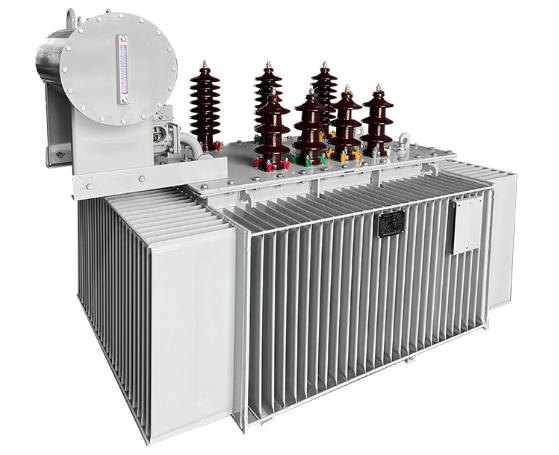

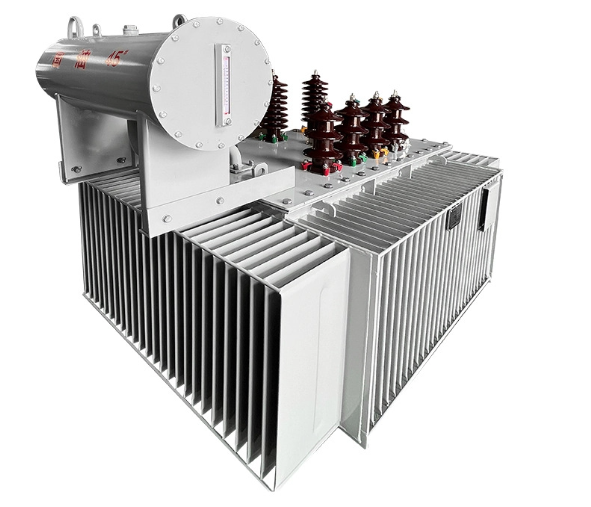

At Pino Electric, we offer oil-immersed transformer solutions for industrial and electrical distribution applications. We can discuss project requirements to help buyers identify suitable configurations. Buyers should provide detailed electrical specifications when requesting a quotation. This information helps reduce misunderstandings and unnecessary design revisions. Any technical deviations should be documented and approved before production begins.
Choosing the right oil-filled transformer requires more than comparing purchase prices. It must meet your electrical, thermal, and operating requirements. Buyers should prioritize system compatibility, safety, and performance before evaluating energy efficiency and long-term costs. Comparing seven key specifications helps identify technical differences between supplier quotations. Before ordering, confirm your load requirements, installation conditions, and complete technical documentation. These steps help prevent costly mistakes and improve equipment reliability. At Pino Electric Technology Co., Ltd., we provide oil-filled transformer solutions for industrial and power distribution applications. We help customers evaluate capacity, voltage, and application requirements to select suitable configurations for reliable operation.
A: The seven key oil-filled transformer specifications include rated capacity, voltage ratings, winding configuration, short-circuit impedance, insulation levels, energy losses, and cooling performance. Each affects electrical compatibility, safety, and reliability.
A: Calculate your required kVA using peak load demand and power factor. Choose an oil-filled transformer that supports expected operating loads and future expansion without unnecessary oversizing.
A: Short-circuit impedance affects fault current levels and voltage regulation. Choosing the correct oil-filled transformer impedance helps coordinate protective devices, control voltage drops, and maintain reliable system operation.
A: No-load losses occur whenever the transformer remains energized, while load losses increase under electrical demand. Comparing both values helps estimate annual energy costs and long-term efficiency.
A: ONAN uses natural oil circulation and airflow, while ONAF adds cooling fans. ONAF can support higher loading under specified conditions but requires additional equipment and maintenance.
