Power distribution systems in urban areas are becoming increasingly complex and critical, especially in enclosed spaces such as tunnels and underground environments. These settings present unique challenges for electrical equipment, particularly transformers, which are essential components in the distribution network. Traditional oil-filled transformers may not be suitable for underground or tunnel applications due to their fire hazards, high maintenance requirements, and noise levels. As urban infrastructure expands, the need for safer, more efficient, and quieter power distribution systems grows, making flame retardant dry-type transformers an ideal solution for these environments.
This article explores the importance of flame retardant dry-type transformers in tunnel and underground power distribution, focusing on their safety features and low noise performance. The paper will also examine how these transformers address the specific challenges posed by underground environments and meet safety regulations while maintaining operational efficiency.
Safety: Flame retardant dry-type transformers are inherently safer than traditional oil-filled transformers due to the absence of flammable liquids. The solid insulation materials used in these transformers help prevent the spread of fire, making them ideal for confined spaces like tunnels and underground systems.
Low Noise Performance: These transformers are designed with noise reduction technologies that minimize vibrations and operational noise. This makes them suitable for environments where noise control is essential, such as underground power distribution and tunnels.
Environmental Impact: Flame retardant dry-type transformers are more environmentally friendly compared to oil-filled transformers. They eliminate the risk of oil leakage and are built with non-toxic materials, which is crucial for underground spaces where environmental safety is a priority.
Compact Design and Space Efficiency: Dry-type transformers are more compact and require less maintenance, making them a great fit for space-constrained environments like tunnels and underground stations.
Compliance with Regulations: These transformers meet strict international safety and performance standards, ensuring that they are suitable for use in high-risk environments and comply with fire safety, electrical safety, and noise reduction regulations.

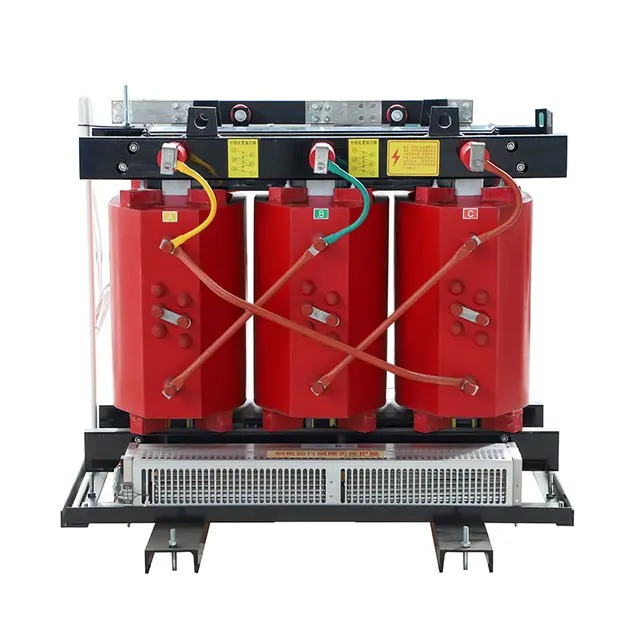

Flame retardant dry-type transformers are a type of electrical transformer that use air as a cooling medium and do not require oil or liquid-based coolant. Unlike their oil-filled counterparts, dry-type transformers are insulated with solid materials such as epoxy resins or cast coils. The primary advantage of these transformers is that they are inherently safer because they do not contain flammable oils that could potentially cause fires in the event of a fault. Instead, they utilize flame retardant materials that prevent the spread of fire, making them a safer choice in environments like tunnels and underground spaces where fire safety is critical.
Dry-type transformers are also environmentally friendly, as they do not pose the same risk of oil leakage as oil-filled transformers. This is particularly important in confined spaces where any leakage could lead to significant environmental hazards.
Flame retardant dry-type transformers operate on the same basic principle as any other transformer: they transfer electrical energy from one circuit to another using electromagnetic induction. The transformer consists of two main components: the primary winding (input) and the secondary winding (output), which are wrapped around a core. When alternating current (AC) passes through the primary winding, it generates a magnetic field that induces a current in the secondary winding, thereby changing the voltage levels according to the transformer’s design.
In flame retardant dry-type transformers, the windings are typically made of copper or aluminum, and the insulating material is designed to withstand high temperatures without igniting. The solid insulation is often cast in resin or epoxy, providing additional fire resistance. This makes the transformer not only efficient but also safer in the event of electrical faults or overheating.
Power distribution in tunnels and underground environments presents several unique challenges. One of the most critical concerns is fire safety. Underground spaces are typically enclosed, and in the event of a fire, the confined nature of the area can cause the fire to spread quickly and be difficult to control. In addition to the fire risk, these spaces often have limited ventilation and space for equipment, making cooling and maintenance more difficult.
Another challenge in underground environments is the need for low noise levels. Tunnels and underground facilities often house people working in or near electrical equipment, and high noise levels can create discomfort, disrupt communication, and even pose health risks to workers. Thus, transformers used in these environments must not only be safe but also operate quietly.
Enhanced Safety: The lack of flammable oils in flame retardant dry-type transformers eliminates the fire risk associated with traditional oil-filled transformers. This is especially crucial in underground and tunnel environments, where fire safety is a top priority. In the event of a fault, the transformer’s flame-retardant insulation ensures that the fire will not spread, significantly reducing the risk of a fire disaster.
Space Efficiency: These transformers are more compact and require less maintenance compared to oil-filled transformers, making them well-suited for space-constrained environments like tunnels and underground stations. The absence of oil also reduces the need for complex containment systems that are required for oil-filled transformers.
Environmental Friendliness: Flame retardant dry-type transformers are a more environmentally friendly choice since they do not use oil. There is no risk of oil leakage, which can cause environmental damage, especially in confined underground spaces. These transformers are also more sustainable because they use materials that are non-toxic and easier to dispose of.
Low Noise Levels: The design of flame retardant dry-type transformers inherently leads to quieter operation. In many cases, these transformers are designed with noise reduction features such as vibration-damping materials and soundproof enclosures. This makes them an excellent choice for environments where noise pollution is a concern, such as in tunnels and underground distribution systems.
Durability and Reliability: These transformers are built to withstand harsh conditions. In tunnel and underground applications, where maintenance opportunities are limited and conditions are challenging, dry-type transformers’ durability ensures long-lasting and reliable performance. Their ability to function in high-temperature and high-humidity environments further contributes to their reliability.
The significance of low noise levels in tunnel and underground environments cannot be overstated. Workers and maintenance personnel in these spaces are often exposed to a variety of noise sources, and high noise levels can lead to fatigue, hearing damage, and decreased productivity. Additionally, excessive noise can interfere with communication and make it difficult for workers to hear emergency alerts or operational signals.
Flame retardant dry-type transformers are specifically designed to operate at lower noise levels compared to traditional transformers. The noise level of a transformer is typically measured in decibels (dB), and in tunnel and underground power distribution systems, keeping this level as low as possible is essential for maintaining a safe and comfortable working environment.
Vibration Damping: One of the primary sources of noise in transformers is vibration caused by the electrical currents passing through the windings. Flame retardant dry-type transformers are designed with vibration-damping materials that reduce the transmission of these vibrations to the surrounding environment. This minimizes the noise produced during operation.
Soundproof Enclosures: In some cases, transformers can be placed inside soundproof enclosures to further reduce noise emissions. These enclosures absorb sound and prevent it from escaping into the surrounding area, ensuring that the transformer operates quietly.
Resilient Insulation: The use of solid, flame-retardant insulation materials also helps reduce noise. These materials are designed to absorb sound vibrations, further contributing to the transformer’s low noise characteristics.
Noise performance standards for electrical equipment like transformers are outlined by various regulatory bodies. In general, a low-noise transformer in a critical application like underground power distribution should have a noise level of around 50–60 dB at a 1-meter distance. Flame retardant dry-type transformers are engineered to meet or exceed these standards, ensuring that they provide a quieter operation in sensitive environments.
Flame retardant dry-type transformers are designed to meet strict safety standards and regulatory requirements. These include compliance with international standards such as the International Electrotechnical Commission (IEC) 60076 series, which outlines the performance and safety requirements for transformers, and Underwriters Laboratories (UL) standards for fire resistance and electrical safety.
Additionally, flame retardant dry-type transformers are also required to meet specific local safety codes, such as those set by the National Fire Protection Association (NFPA) in the U.S. and similar agencies in other countries. These regulations ensure that the transformers are safe to use in confined spaces like tunnels and underground environments.
Flame Retardant Insulation: The insulation materials used in these transformers are designed to resist flames and prevent the spread of fire, in accordance with international fire safety standards.
Overload Protection: Dry-type transformers often come equipped with built-in overload protection features, ensuring that they do not overheat or cause fires during fault conditions.
Regular Testing and Certification: Manufacturers of flame retardant dry-type transformers perform rigorous testing to ensure that their products meet or exceed regulatory safety standards. This includes tests for fire resistance, electrical performance, and mechanical strength.
The field of flame retardant dry-type transformers continues to evolve. Advances in materials science are leading to the development of even more fire-resistant and durable insulating materials, further improving the safety and performance of these transformers. Additionally, smart monitoring technologies, such as temperature and vibration sensors, are being integrated into these transformers to allow for real-time monitoring and predictive maintenance.
The demand for flame retardant dry-type transformers is expected to grow significantly as cities expand their underground infrastructure. As safety regulations become more stringent and the need for quieter, more efficient power distribution systems increases, flame retardant dry-type transformers are poised to become the preferred choice for tunnel and underground applications.
Flame retardant dry-type transformers provide a safe, efficient, and environmentally friendly solution for power distribution in tunnel and underground environments. Their inherent fire resistance, low noise performance, and space-saving design make them an ideal choice for these challenging applications. As cities continue to expand their underground infrastructure, the demand for these transformers will only increase, driving innovations in safety, efficiency, and performance. With their ability to meet stringent safety standards and regulatory requirements, flame retardant dry-type transformers are set to play a crucial role in the future of underground power distribution.
The primary difference lies in the insulation and cooling methods. Flame retardant dry-type transformers use solid insulation materials and air for cooling, whereas oil-filled transformers use liquid oil as both an insulating and cooling medium. The absence of oil in dry-type transformers reduces fire risks and environmental hazards.
Flame retardant insulation is designed to resist ignition and prevent the spread of fire. It is made from materials such as epoxy resins and cast coils, which can withstand high temperatures without burning or releasing toxic gases, ensuring the transformer remains safe in case of electrical faults.
Yes, these transformers are designed to operate in high-temperature environments. The solid insulation materials are built to withstand extreme temperatures, making them suitable for use in underground and tunnel environments where high heat conditions may exist.
The noise level typically ranges between 50–60 dB at a distance of one meter. These transformers are specifically designed with noise-reduction features such as vibration-damping materials and soundproof enclosures to minimize operational noise.
Initially, flame retardant dry-type transformers can be more expensive due to their advanced materials and manufacturing processes. However, their long-term benefits, such as lower maintenance costs, reduced fire risks, and environmental safety, often outweigh the higher upfront costs.
