Hospitals are high-stakes power environments. They operate 24/7 and cannot tolerate downtime. From intensive care ventilators and surgical robots to sterilization plants and negative-pressure isolation wards, the electrical backbone must be both resilient and safe. Increasingly, facilities engineers and clinical risk managers are converging on the same solution: the 2000kVA cast resin transformer.
While oil-filled transformers have been the conventional choice for decades, healthcare's evolving fire safety standards, urban siting constraints, and sustainability goals demand a better fit. Enter the cast resin design: solid insulation, high mechanical strength, and inherently low flammability. A 2000kVA cast resin transformer provides ample capacity for medium-to-large hospitals, with the safety and environmental advantages that modern healthcare expects.
This article explores the core characteristics and fire safety benefits of the 2000kVA cast resin transformer, aligns them with global standards typically required in healthcare facilities, and evaluates total lifecycle value. You'll find actionable insights, comparison data, and practical checklists you can use in planning, procurement, and compliance.
A 2000kVA cast resin transformer delivers hospital-grade safety, with very low fire load, minimal smoke production, and excellent thermal performance—significantly reducing fire risk and simplifying compliance in indoor settings.
Compared with oil-filled units, the 2000kVA cast resin transformer offers comparable or better efficiency (especially with Ecodesign Tier 2/DOE 2016+ class designs), lower maintenance, improved short-circuit withstand capability, and easier siting inside healthcare buildings.
For most hospitals and large clinics, a properly specified 2000kVA cast resin transformer provides a best-in-class balance of reliability, safety, energy efficiency, and sustainability—supporting both patient safety and ESG goals.

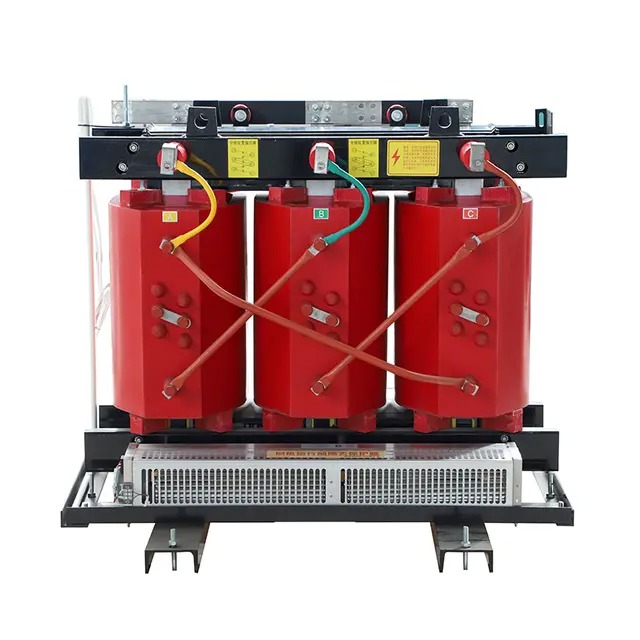

A cast resin transformer is a dry-type transformer in which the windings—typically the high-voltage coils—are encapsulated with epoxy resin. This solid insulation system replaces liquid dielectric fluids used in traditional oil-filled units. The result is a transformer with:
Solid, moisture-resistant insulation that reduces partial discharge and dielectric breakdown.
High mechanical strength, enhancing short-circuit withstand capability.
Inherently low flammability and smoke generation compared to oil-filled designs.
Suitability for indoor installation close to loads—ideal for hospitals where space and cable runs are constrained.
In healthcare settings, cast resin technology is prized for its clean operation (no oil leaks), ease of maintenance, and high resilience in environments with variable humidity and dust. The lack of flammable liquid significantly reduces fire load and secondary hazards.
"2000kVA" refers to the transformer's apparent power rating—2,000 kilovolt-amperes. In practice:
Capacity fit: 2000kVA typically serves a medium-to-large hospital wing, a diagnostics complex (MRI/CT/PET clusters), or a central plant serving multiple buildings.
Voltage levels: Common configurations include MV primary (e.g., 11 kV, 13.2 kV, 15 kV, or 33 kV) and LV secondary (e.g., 400/230 V at 50 Hz or 480/277 V at 60 Hz), but are customizable.
Loading profile: Hospitals often run at 40–70% average load with peaks during daytime or surgical blocks. The 2000kVA rating allows sufficient headroom for redundancy (N+1) and transient loads (e.g., imaging start-up currents).
The rating ensures adequate capacity to maintain stability under contingency scenarios—like one transformer offline during maintenance—with downstream automatic transfer switches (ATS) and UPS systems smoothing critical loads.
Solid epoxy-encapsulated windings: Moisture-resistant, mechanically robust, and low partial discharge.
Low fire load: No combustible oil; resin systems are engineered for self-extinguishing behavior.
High short-circuit strength: Fiber-reinforced resin and robust clamping improve withstand under fault currents.
Low noise: Improved core design and damping suit hospital acoustic requirements near patient areas.
High efficiency: Modern designs meet Ecodesign Tier 2/NRCan/DOE efficiency levels, reducing losses and heat.
Thermal monitoring: Integrated PT100 sensors and smart temperature controllers support predictive maintenance.
Corrosion resistance: Suitable for saline air (coastal hospitals) with appropriate protection classes (e.g., IP21–IP54 enclosures, C3–C5 corrosion categories).
Flexible installation: Lighter than oil-filled units of similar rating; no oil containment basins needed; reduced clearance for fire safety.
Hospitals must maintain safe egress routes, protect vulnerable populations, and prevent smoke ingress into critical care zones. Fire safety is a top procurement criterion for electrical equipment placed inside buildings. The 2000kVA cast resin transformer minimizes fire propagation broadly due to:
Solid insulation without a liquid fuel source, drastically lowering combustibility.
Self-extinguishing resin systems that limit flame spread and smoke.
Lower surface temperatures under normal operation due to efficient cooling paths.
No oil containment or fire suppression liquids required, simplifying room design.
In hospital fire engineering, compartmentation is vital. Cast resin units fit comfortably in electrical rooms within the building envelope, behind fire-rated walls and doors, with straightforward ventilation strategies. They reduce the risk that a transformer fault becomes a building-wide incident.
Compared with oil-filled transformers, cast resin designs present:
No oil pool or oil spray risk, eliminating pool fire scenarios.
Minimal smoke and toxic byproducts during fault events compared to burning oil.
Lower collateral damage risk: A localized thermal event is less likely to compromise adjacent equipment.
In practical terms, this means easier adherence to fire zone design, fewer ancillary systems (no deluge systems for oil fires), and reduced shutdown risk. Hospitals benefit from faster commissioning and fewer operational constraints related to hot work permits and insurance stipulations.
While requirements vary by jurisdiction, a 2000kVA cast resin transformer helps align with common healthcare codes and standards, such as:
Indoor installation and low fire load supporting compliance with building codes and healthcare electrical standards that emphasize life safety.
Smoke and fire performance suitable for application in escape routes and occupied floors when properly compartmented.
Compatibility with stringent ventilation, acoustic, and hygiene requirements typical of hospitals.
Always confirm local requirements for fire-resistance of rooms, ventilation rates, seismic anchoring, and arc-flash boundaries. But in most cases, the 2000kVA cast resin transformer simplifies compliance relative to oil-filled units, which often require remote siting or enhanced fire suppression.
Hospitals are energy-intensive. The 2000kVA cast resin transformer can achieve high efficiency across realistic hospital load profiles:
Low no-load losses due to high-grade core steel and precise lamination stacking.
Reduced load losses via optimized conductor cross-sections and resin-encapsulated winding geometry.
Capability to meet or exceed modern efficiency regulations, reducing lifetime energy costs.
Efficiency matters not just for cost, but for thermal management. Lower losses mean less heat in electrical rooms, smaller HVAC loads, and longer equipment life. For hospitals operating at 50–70% load most of the time, the improved part-load efficiency of a 2000kVA cast resin transformer can produce meaningful savings and less thermal stress on adjacent gear.
Reliability is paramount in healthcare. Cast resin designs excel in:
Moisture immunity: Solid encapsulation resists humidity, reducing insulation degradation and partial discharge.
Short-circuit withstand: Mechanical rigidity of resin-encapsulated windings maintains alignment under fault forces.
Thermal endurance: Even heat distribution limits hot spots, improving insulation life.
These factors reduce downtime and extend service intervals—critical for continuous hospital operations. Many hospitals deploy the 2000kVA cast resin transformer in redundant configurations (N or N+1) to ensure resilience during maintenance or faults.
Without oil to sample, replace, or contain, cast resin transformers require:
Periodic visual inspection and dust cleaning (often annually).
Thermal monitoring review via built-in sensors.
Occasional torque checks on connections and busbars.
No oil testing, no leak checks, and no fire suppression foam systems translate to lower operating expenses and fewer specialized service visits. This is attractive for hospital facilities teams with constrained staffing.
Sustainability is a healthcare priority. The 2000kVA cast resin transformer supports ESG goals through:
No oil leaks: Eliminates soil and water contamination risks.
Lower losses: Reduced carbon footprint over the lifecycle.
Recyclable materials: Steel cores and copper/aluminum windings are readily recoverable.
Hospitals pursuing green building certifications benefit from the cleaner installation and operational profile of cast resin designs.
For hospitals and healthcare campuses, the 2000kVA cast resin transformer offers a compelling combination of fire safety, reliability, efficiency, and environmental performance. Its solid insulation eliminates oil-related fire and contamination risks, simplifies compliance, and reduces maintenance. With proper specification and integration into resilient hospital power architectures, it supports mission-critical uptime and patient safety.
A dry-type transformer with resin-encapsulated windings, rated at 2,000 kVA, designed for high safety and reliability in indoor settings like hospitals.
Lower fire risk, no oil leaks, easier indoor installation, reduced maintenance, and strong efficiency.
Often used per building or wing; multiple units can be paralleled for larger loads or redundancy.
No oil management; focus on inspections, cleaning, and thermal monitoring.
It supports compliance with common healthcare safety and building codes when properly specified and installed.
