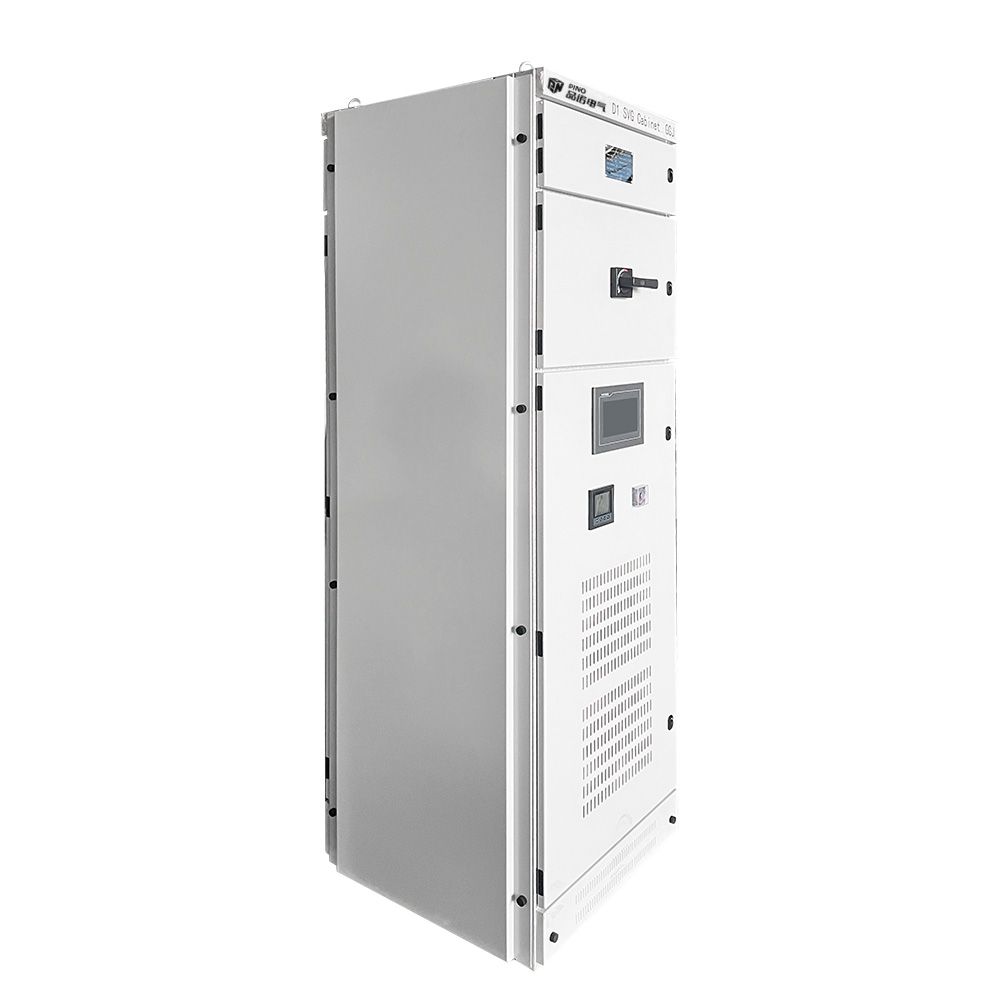

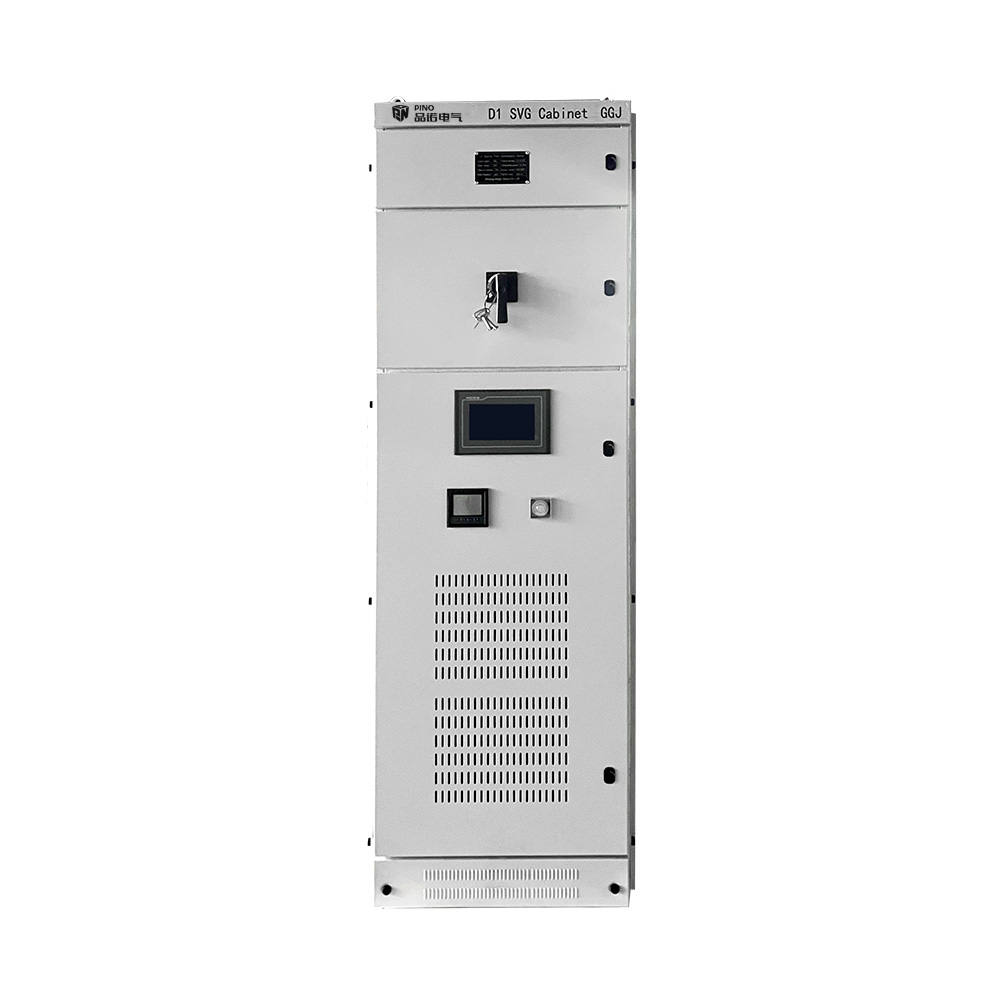

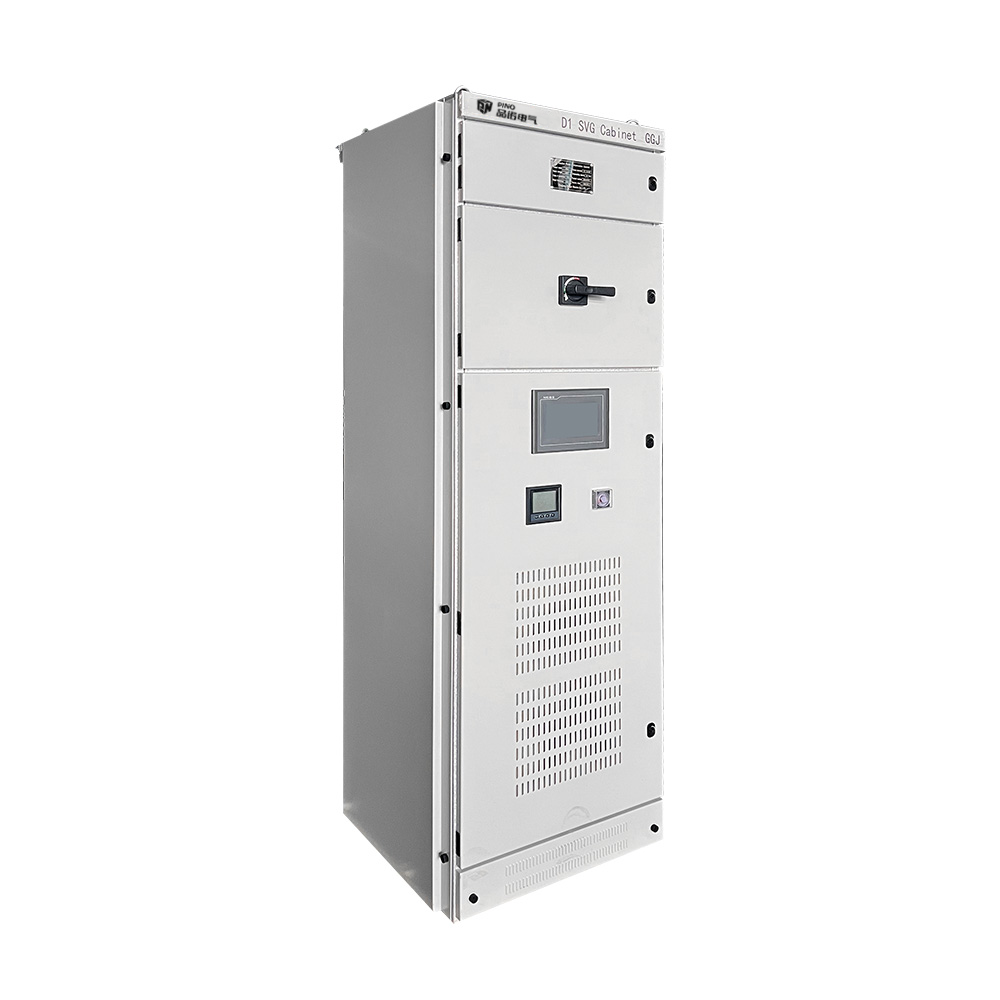

SVG series Intelligent Active Static Var Generator Panel

• Model: SVG      Brand: Pino Electric   Degree of Protection: IP40   Rated Voltage: 380V

• Rated Capacity: 50 kvar, 75 kvar, 100 kvar, 200 kvar    Rated Frequency: 50/60Hz   Phase: Three   MOQ: 1Set

•


Overview

The Static Var Generator (SVG) is a leading solution for reactive energy compensation, designed to meet the demands of modern networks facing challenges like increased harmonics and voltage fluctuations from renewable energy sources. Its DSP-controlled IGBT topology ensures effective phase compensation for both inductive and capacitive loads, while also correcting phase imbalances. With resistance to harmonics and resonance, the SVG offers a maintenance-free solution that can easily integrate into any network configuration, making it suitable for today’s evolving energy landscape.

Applicable occasion

• Hoists, rolling mills, and other heavy industry applications are typical impact loads, primarily found in mining and metallurgical industries. They have the following impacts on the power grid:

• The reactive power impact is large, resulting in power grid voltage fluctuations, serious interference with the operation of other equipment, reducing production efficiency;

• Low power factor, monthly need to pay a large amount of reactive power fines;

• Some devices produce harmonics, endangering the safety of power grid.

• The main loads of the oil and gas drilling platform power supply system include winches, turntables, mud pumps, etc. Due to the specific conditions of drilling, the system represents a typical impact load. The impacts on the power grid are as follows:

• Large reactive power impact, low power factor;

• High current harmonics;

• The voltage fluctuation is serious and the voltage distortion rate is high, which affects the power supply of the control system, PLC, logging instrument and other equipment.

Product Features

• Dynamic Reactive Power Compensation

• Continuously monitors and adjusts reactive power output to maintain stability and efficiency during load variations, with an adjustable power factor ranging from -1 to +1.

• High-Efficiency Control

• Incorporates Insulated Gate Bipolar Transistor (IGBT) technology for effective power conversion, significantly minimizing energy losses and boosting overall system efficiency.

• Power Factor Improvement

• Effectively raises the power factor close to unity (1.00), resulting in reduced electricity costs and decreased strain on the grid, ultimately benefiting businesses economically.

• Harmonic Suppression

• Features integrated harmonic filtering capabilities that suppress harmonic distortion within the grid, safeguarding electrical equipment and extending its lifespan.

• Modular Design

• The modular design allows for easy expansion and maintenance, providing flexibility to adapt to various power system scales and requirements, while supporting future upgrades.

• User-Friendly Interface

• Equipped with an intuitive Human-Machine Interface (HMI) that enables operators to monitor and adjust system parameters in real-time, improving operational efficiency.

• Reliability and Stability

• Undergoes extensive testing to ensure dependable performance under diverse operating conditions, capable of withstanding challenging environments to ensure safe operation.

• Multi-Functional Integration

• Offers a range of functions, including reactive power compensation, load balancing, and harmonic filtering, delivering a comprehensive solution for diverse user needs.

Technical Data
