Model:BSMJ Brand:Pino Electric Rated Voltage:0.25, 0.4, 0.45, 0.48, 0.525, 0.69, 0.75kvac Rated Frequency:50/60Hz Phase:3/4 Rated Capacity:5, 10, 15, 20, 25, 30, 40, 50kvar
Overview

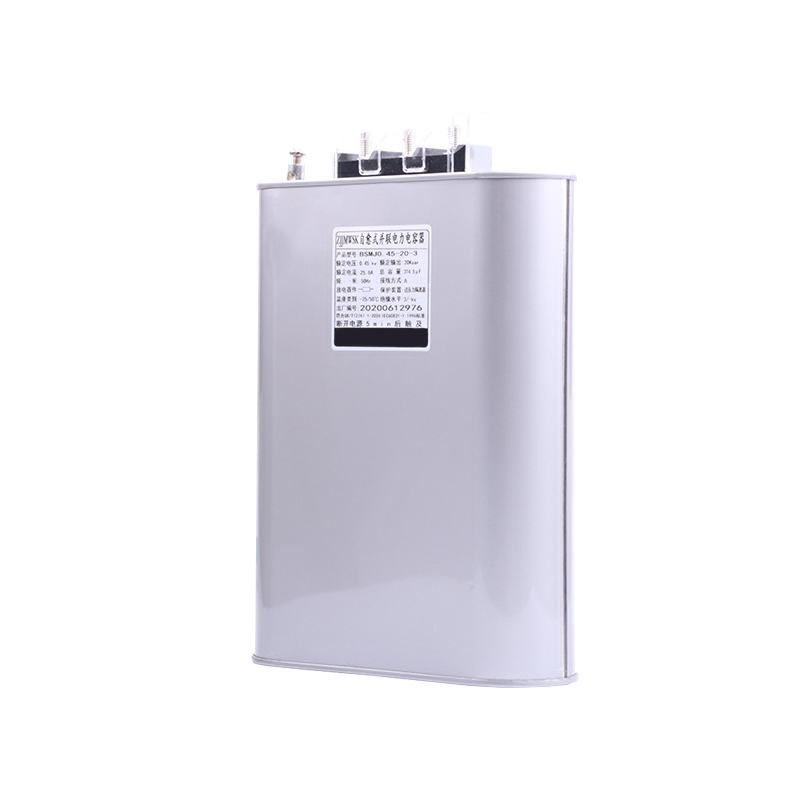

The BSMJ Dry Type Low-voltage Shunt Capacitor is a high-performance electrical component designed for power systems, commonly utilized in both industrial and commercial settings. Its primary role is to enhance power quality and improve system efficiency. With advanced manufacturing techniques, the BSMJ capacitor offers excellent insulation properties and durability, ensuring reliable operation under various conditions. It adheres to international standards established by the International Electrotechnical Commission (IEC), making it essential for reactive power compensation and harmonic filtering, thus significantly contributing to the efficiency of power systems.
Product Features
Power Factor Compensation:
Reduces reactive power effectively, enhances system power factor, and lowers electricity costs.
Harmonic Filtering:
Minimizes harmonics, improves power quality, and protects equipment from overload and damage.
High Temperature Resistance:
Constructed with high-quality insulation materials, it maintains stable performance in elevated temperatures, extending its lifespan.
Low Loss:
Optimized design ensures minimal energy consumption during operation, boosting overall system efficiency.
Environmental Resistance:
Features exceptional moisture, corrosion, and shock resistance, suitable for harsh operating environments.
Ease of Maintenance:
Modular design simplifies installation and maintenance, minimizing downtime.
Eco-Friendly Materials:
Manufactured from non-toxic materials, complying with environmental standards and supporting sustainable development.
Product Features
| NO. | Specifications | Rated voltage KV | Rated capacity Kvar | Rated frequency Hz | Rated capacity HF | Rated current A | Shell height | Drawing No. |
| 1 | BSMJ0.4-5-3 | 0.4 | 5 | 50 | 99.5 | 7.2 | 115 | A |
| 2 | BSMJ0.4-10-3 | 0.4 | 10 | 50 | 199 | 14.4 | 125 | A |
| 3 | BSMJ0.4-15-3 | 0.4 | 15 | 50 | 298.5 | 21.6 | 180 | A |
| 4 | BSMJ0.4-20-3 | 0.4 | 20 | 50 | 398 | 28.8 | 210 | A |
| 5 | BSMJ0.4-25-3 | 0.4 | 25 | 50 | 497.5 | 36 | 240 | A |
| 6 | BSMJ0.4-30-3 | 0.4 | 30 | 50 | 597 | 43.2 | 210 | B |
| 7 | BSMJ0.4-40-3 | 0.4 | 40 | 50 | 796 | 57.6 | 250 | B |
| 8 | BSMJ0.4-50-3 | 0.4 | 50 | 50 | 995 | 72 | 300 | B |
| 9 | BSMJ0.45-5-3 | 0.45 | 5 | 50 | 78.65 | 6.4 | 115 | A |
| 10 | BSMJ0.45-10-3 | 0.45 | 10 | 50 | 157.3 | 12.8 | 125 | A |
| 11 | BSMJ0.45-15-3 | 0.45 | 15 | 50 | 235.95 | 19.2 | 180 | A |
| 12 | BSMJ0.45-20-3 | 0.45 | 20 | 50 | 314.6 | 25.6 | 210 | A |
| 13 | BSMJ0.45-25-3 | 0.45 | 25 | 50 | 393.25 | 32 | 240 | A |
| 14 | BSMJ0.45-30-3 | 0.45 | 30 | 50 | 471.9 | 38.4 | 210 | B |
| 15 | BSMJ0.45-40-3 | 0.45 | 40 | 50 | 629.2 | 51.3 | 250 | B |
| 16 | BSMJ0.45-50-3 | 0.45 | 50 | 50 | 786.5 | 64 | 300 | B |
| 17 | BSMJ0.48-5-3 | 0.48 | 5 | 50 | 69.1 | 6 | 125 | A |
| 18 | BSMJ0.48-10-3 | 0.48 | 10 | 50 | 138.2 | 12 | 125 | A |
| 19 | BSMJ0.48-15-3 | 0.48 | 15 | 50 | 207.3 | 18 | 210 | A |
| 20 | BSMJ0.48-20-3 | 0.48 | 20 | 50 | 276.4 | 24 | 210 | A |
| 21 | BSMJ0.48-25-3 | 0.48 | 25 | 50 | 345.5 | 30 | 210 | B |
| 22 | BSMJ0.48-30-3 | 0.48 | 30 | 50 | 414.6 | 36 | 250 | B |
| 23 | BSMJ0.48-40-3 | 0.48 | 40 | 50 | 552.8 | 48 | 300 | B |
| 24 | BSMJ0.48-50-3 | 0.48 | 50 | 50 | 691 | 60 | 300 | B |
| 25 | BSMJ0.525-5-3 | 0.525 | 5 | 50 | 57.7 | 5.5 | 115 | A |
| 26 | BSMJ0.525-10-3 | 0.525 | 10 | 50 | 115.5 | 11 | 125 | A |
| 27 | BSMJ0.525-15-3 | 0.525 | 15 | 50 | 173.3 | 16.5 | 180 | A |
| 28 | BSMJ0.525-20-3 | 0.525 | 20 | 50 | 231 | 22 | 210 | A |
| 29 | BSMJ0.525-25-3 | 0.525 | 25 | 50 | 288.9 | 27.5 | 210 | B |
| 30 | BSMJ0.525-30-3 | 0.525 | 30 | 50 | 346.6 | 33 | 210 | B |
| 31 | BSMJ0.525-40-3 | 0.525 | 40 | 50 | 462.2 | 44 | 250 | B |
| 32 | BSMJ0.525-50-3 | 0.525 | 50 | 50 | 577.7 | 55 | 300 | B |
| 33 | BSMJ0.69-20-3 | 0.69 | 20 | 50 | 134 | 16.7 | 240 | A |
| 34 | BSMJ0.69-30-3 | 0.69 | 30 | 50 | 200.7 | 25.1 | 250 | B |
| 35 | BSMJ0.25-5-3YN | 0.25 | 5 | 50 | 254.5 | 6.7 | 115 | A |
| 36 | BSMJ025-10-3YN | 0.25 | 10 | 50 | 509 | 13.3 | 180 | A |
| 37 | BSMJ025-15-3YN | 0.25 | 15 | 50 | 763.5 | 20 | 240 | A |
| 38 | BSMJ0.25-20-3YN | 0.25 | 20 | 50 | 1018 | 26.7 | 210 | B |
| 39 | BSMJ0.25-25-3YN | 0.25 | 25 | 50 | 1275 | 33.3 | 250 | B |
| 40 | BSMJ0.25-30-3YN | 0.25 | 30 | 50 | 1527 | 40 | 300 | B |
